TRANSMISSION
GSXR1000 2001 (K1) USA (E03)

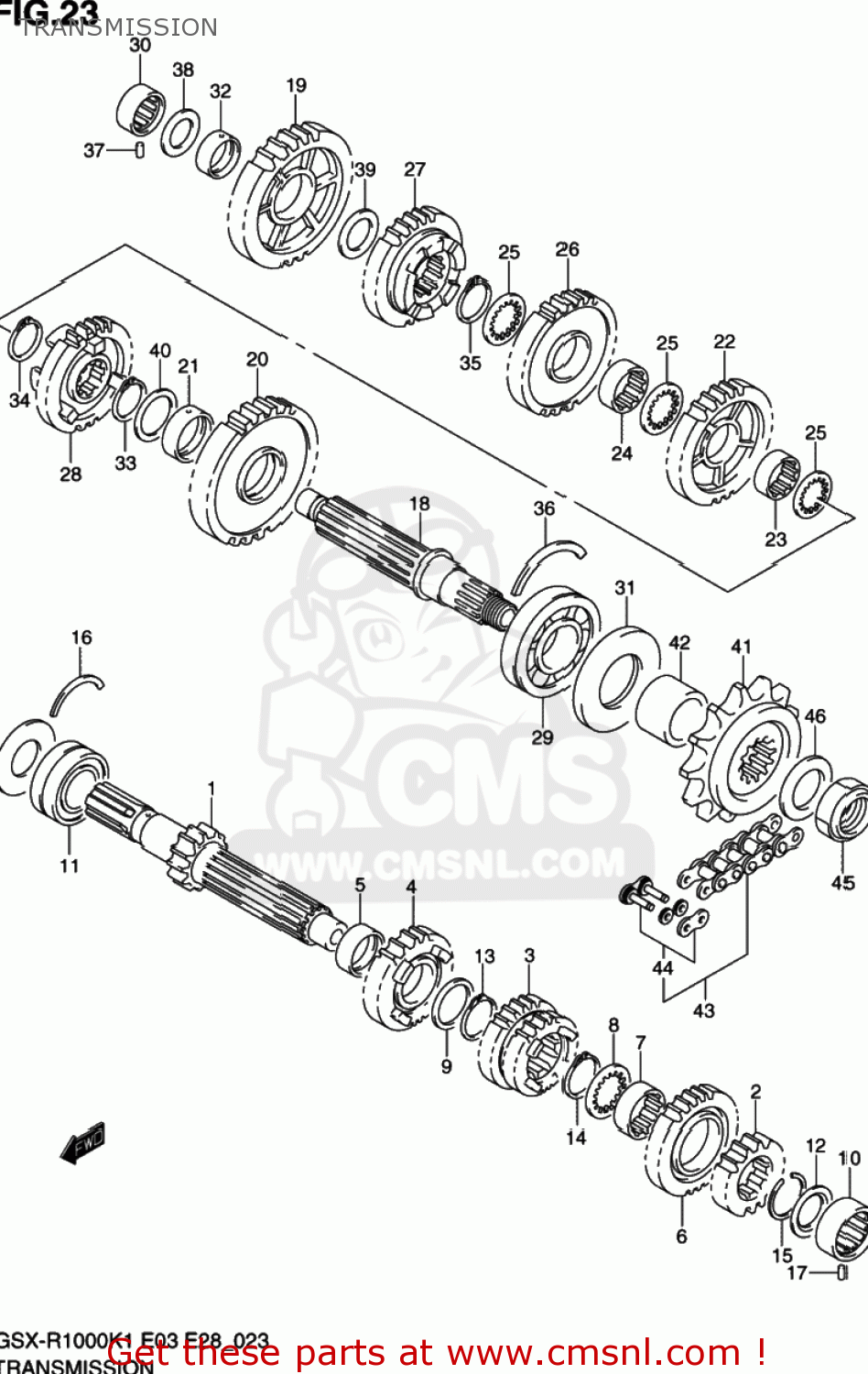

Transmission diagram GSXR1000 2001 (K1) USA (E03)
TRANSMISSION GSXR1000 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412040F00
ref: 1
SHAFT,COUNTER
€ 199.50
2
2422140F00
ref: 2
GEAR,2ND DRIVE
€ 67.00
3
2423140F00
ref: 3
GEAR,3RD & 4TH DRIVE
€ 256.50
4
2425140F00
ref: 4
GEAR,5TH DRIVE
€ 108.00
5
2425235F00
ref: 5
BUSH,5TH DRIVE GEAR
€ 13.00
6
2426140F00
ref: 6
GEAR,6TH DRIVE
€ 118.00
7
2426235F00
ref: 7
BUSH,6TH DRIVE GEAR
€ 19.50
8
0916727003
ref: 8
WASHER,LOCK
€ 5.00
9
0918127014
ref: 9
SHIM(27X36X2.5)
€ 6.00
10
0926320087
ref: 10
BEARING(20X34X13.5)
€ 31.50
11
0926725013
ref: 11
BEARING(25X52X20.6)
€ 67.00
12
0928520006
ref: 12
SEAL,OIL(20X31.2X2.7)
€ 7.00
13
0938027006
ref: 13
CIRCLIP
€ 2.50
14
0938027006
ref: 14
CIRCLIP
€ 2.50
15
0938027004
ref: 15
CIRCLIP
€ 3.50
16
0939058001
ref: 16
C RING
€ 2.00
17
0926106003
ref: 17
PIN(6X10)
€ 1.50
18
2413140F00
ref: 18
SHAFT,DRIVE
€ 282.00
19
2431140F00
ref: 19
GEAR,1ST DRIVEN
€ 120.00
20
2432140F00
ref: 20
GEAR,2ND DRIVEN
€ 107.00
21
2432202F01
ref: 21
BUSH,2ND DRIVEN GEAR
€ 11.00
22
2433140F00
ref: 22
GEAR,3RD DRIVEN
€ 148.00
23
2426217E01
ref: 23
BUSH
€ 29.00
24
2426217E01
ref: 24
BUSH
€ 29.00
25
2433302F00
ref: 25
WASHER,3RD & 4TH DRIVEN
€ 3.50
26
2434140F00
ref: 26
GEAR,4TH DRIVEN
€ 133.00
27
2435140F00
ref: 27
GEAR,5TH DRIVEN
€ 91.50
28
2436140F00
ref: 28
GEAR,6TH DRIVEN
€ 99.00
29
0926228025
ref: 29
BEARING(28X70X18)
€ 97.50
30
0926320087
ref: 30
BEARING(20X34X13.5)
€ 31.50
31
0928336008
ref: 31
SEAL,OIL(34.8X70X6)
€ 16.50
32
2431202F00
ref: 32
BUSH
€ 19.50
33
0938027006
ref: 33
CIRCLIP
€ 2.50
34
0938027006
ref: 34
CIRCLIP
€ 2.50
35
0938027006
ref: 35
CIRCLIP
€ 2.50
36
0939070001
ref: 36
C RING
€ 5.50
37
0926106003
ref: 37
PIN(6X10)
€ 1.50
38
0918120251
ref: 38
SHIM(20X34X1)
€ 3.00
39
0918122223
ref: 39
SHIM(22X34X1)
€ 3.00
40
0916027008
ref: 40
WASHER(27X36X1)
€ 3.00
41
2751021A31
ref: 41
SPROCKET,ENGINE(NT:17)
€ 76.00
42
2753140F00
ref: 42
SPACER,ENG SPROCKET
€ 21.50
43-1
2760040F00110
ref: 43-1
27600-40F10-110
KETTING
€ 216.50
43-2
2760040F01110
ref: 43-2
27600-40F10-110
CHAIN ASSY,DRI
€ 216.50
44-1
2762040F00
ref: 44-1
27620-40F01
JOINT SET,BOTH SIDE GOLD
€ 9.50
44-2
2762040F01
ref: 44-2
JOINT SET,ONE SIDE GOLD
€ 9.50
45
0915920004
ref: 45
NUT
€ 12.00
46
0916025035
ref: 46
WASHER(25X40X1.4)
€ 4.00
