AIR CLEANER

GSXR1100 1988 (J) USA (E03)

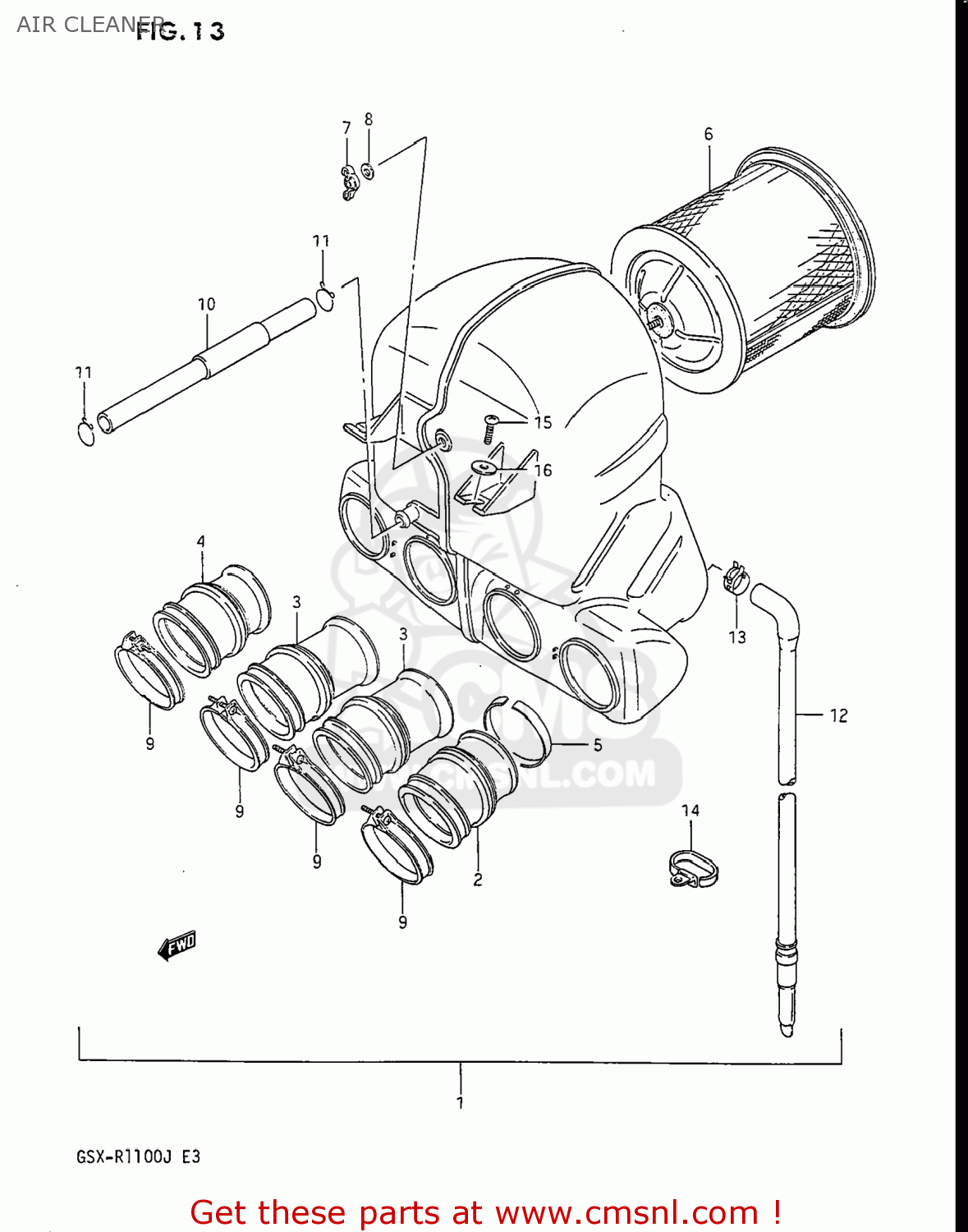

Air cleaner diagram GSXR1100 1988 (J) USA (E03)

AIR CLEANER GSXR1100 1988 (J) USA (E03)

AIR CLEANER GSXR1100 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370006B00
ref: 1

CLEANER ASSEMBLY,AIR

€ 245.50

2

1388106B00
ref: 2

TUBE,OUTLET,L

€ 20.00

3

1388206B00
ref: 3

TUBE,OUTLET MIDDLE,L/R

€ 31.00

4

1388306B00
ref: 4

TUBE,OUTLET,R

€ 28.50

5

1388545450
ref: 5

RING

€ 8.00

6

1378006B00
ref: 6

FILTER

€ 44.00

7

0831712058
ref: 7
08317-1205A

NUT, WING

€ 2.00

8

0832211058
ref: 8
08322-01057

WASHER 5MM

€ 2.50

9

0940256208
ref: 9
09402-56901

CLAMP

€ 3.50

10

1385006B00
ref: 10

TUBE,BREATHER

€ 8.50

11

0940114301
ref: 11

CLIP

€ 2.00

12

1387021447
ref: 12
13870-21458

DRAIN TUBE

€ 23.50

13

1382543400
ref: 13
09401-13417

CLIP

€ 2.50

14

1387927A01
ref: 14

CLAMP,AIR CLEANER DRAIN TUBE

€ 4.50

15

0211206208
ref: 15
02112-06207

SCREW

€ 2.00

16

0916006007
ref: 16
09160-06084

WASHER

€ 2.00
