FRONT LEFT DAMPER
GSXR1100 1988 (J) USA (E03)

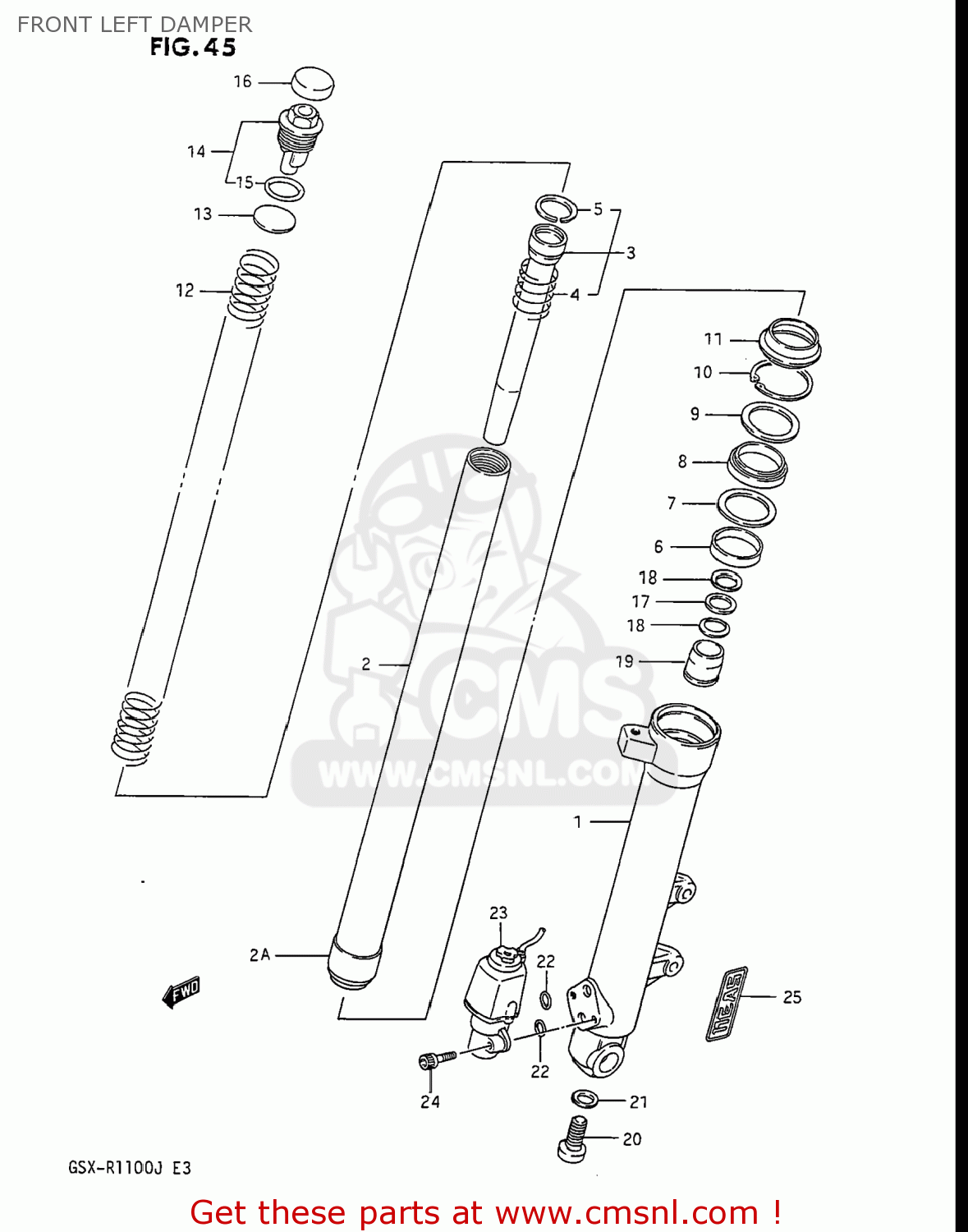

Front left damper diagram GSXR1100 1988 (J) USA (E03)
FRONT LEFT DAMPER GSXR1100 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110406B20
ref:
51104-06B01
DAMPER ASSEMBLY,LEFT
€ 899.50
5110406B50
ref:
51104-06B51
DAMPER ASSEMBLY,LEFT
€ 526.00
5110406B51
ref:
DAMPER ASSEMBLY,LEFT
€ 526.00
1-1
5114006B00
ref: 1-1
TUBE,OUTER,LEFT
€ 289.50
1-2
5114028A10
ref: 1-2
TUBE,OUTER,LEFT
€ 510.00
2
5111006B00
ref: 2
TUBE,INNER
€ 340.00
2A
5112105A00
ref: 2A
METAL,SLIDE FR FORK
€ 20.50
3
5114606B00
ref: 3
CYLINDER
€ 77.00
4
5117706B00
ref: 4
SPRING,REBOUND
€ 6.50
5
5119624A00
ref: 5
RING,FR FORK PISTON
€ 6.50
6
5116705A00
ref: 6
51167-26E10
METAL,SLIDE
€ 20.50
7
5115805A00
ref: 7
WASHER,FORK OIL SEAL
€ 5.00
8
5115305A00
ref: 8
51153-27C20
OIL SEAL,FRONT FORK
€ 22.00
9
5115827A00
ref: 9
WASHER,FORK OIL SEAL
€ 6.00
10
5115649440
ref: 10
RING,OIL SEAL STOPPER
€ 5.50
11
5117305A00
ref: 11
51173-14F00
DUST SEAL,FRONT FORK
€ 18.50
12
5117106B00
ref: 12
SPRING
€ 90.00
13
5119227A00
ref: 13
WASHER,FR FORK SPRING
€ 5.50
14
5135127A00
ref: 14
CAP,FORK INNER TUBE
€ 48.50
15
5111724A00
ref: 15
O RING
€ 6.00
16
5118900A00
ref: 16
CAP,FORK INNER TUBE
€ 8.50
17
5112327A00
ref: 17
WASHER,OIL LOCK PIECE
€ 4.50
18
5112527A00
ref: 18
SPRING,FORK OIL LOCK PIECE
€ 4.50
19
5119527A00
ref: 19
PIECE,OIL LOCK
€ 24.50
20
5114714200
ref: 20
BOLT(14X25)
€ 5.50
21
5114814200
ref: 21
GASKET (NAS)
€ 2.00
22
5179906B00
ref: 22
09280-14011
O RING
€ 3.50
23-1
5177006B00
ref: 23-1
P.D.F. ASSEMBLY
€ 327.50
23-2
5177028A10
ref: 23-2
EAND ASSY
€ 340.50
24
0711006257
ref: 24
07130-06257
BOLT
€ 2.50
25
6868106B00
ref: 25
EMBLEM
€ 0.00
