REAR WHEEL (MODEL J)
GSXR1100 1988 (J) USA (E03)

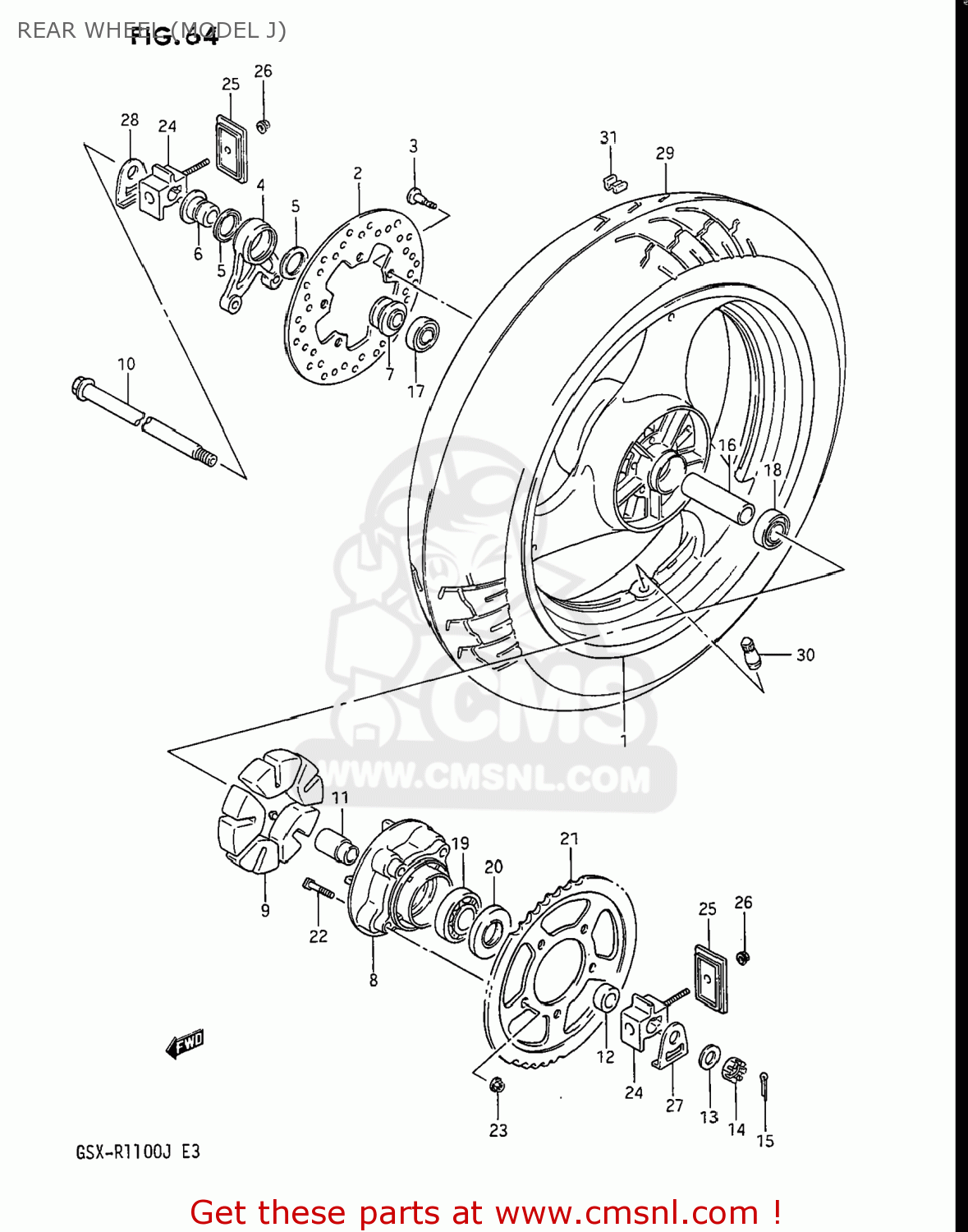

Rear wheel (model j) diagram GSXR1100 1988 (J) USA (E03)
REAR WHEEL (MODEL J) GSXR1100 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411106B1028W
ref: 1
WHEEL,REAR (18XMT4.50)
€ 784.50
2
6921127A00
ref: 2
DISC,RR BRAKE
€ 389.00
3
0910608062
ref: 3
09106-08148
BOLT
€ 6.00
4
6972027A01
ref: 4
BRACKET,RR CALIPER
€ 86.50
5
0928528002
ref: 5
SEAL,OIL(28X35X5)
€ 9.50
6
6941227A00
ref: 6
SPACER,RR CALIPER BRACKET
€ 45.50
7
6474048B00
ref: 7
SPACER,RR AXLE,R
€ 43.00
8
6461117C00
ref: 8
64611-17C01
DRUM,REAR SPROCKET MOUNT
€ 159.00
9
6465127A01
ref: 9
ABSORBER,RR HUB SHOCK
€ 6.00
10
6471106B00
ref: 10
AXLE,REAR
€ 67.50
11
6473327A00
ref: 11
RETAINER,RR HUB BEARING
€ 18.50
12
6475127A00
ref: 12
SPACER,RR AXLE,L
€ 21.50
13
0832211188
ref: 13
08322-0118B
WASHER
€ 2.50
14
0914118007
ref: 14
NUT
€ 4.00
15
0411140408
ref: 15
04111-4040A
PIN, COTTER
€ 2.00
16
0918020104
ref: 16
SPACER(20.8X27.2X97)
€ 22.50
17
0812362047
ref: 17
BEARING
€ 17.00
18
0926220042
ref: 18
BEARING(20X47X14)
€ 21.00
19
0926225073
ref: 19
BEARING(25X62X17)
€ 21.50
20
0928535001
ref: 20
SEAL,OIL(35X62X8)
€ 9.00
21
6451106B10
ref: 21
SPROCKET,REAR
€ 78.00
22
0910510007
ref: 22
BOLT(10X44)
€ 3.00
23
0831931107
ref: 23
NUT
€ 3.00
24
6141006B00
ref: 24
61410-27A10
ADJUSTER,CHAIN
€ 31.00
25
6142106B00
ref: 25
PLATE,CHAIN ADJUSTER GUIDE
€ 17.00
26
0831931087
ref: 26
NUT
€ 2.50
27
6144506B00
ref: 27
64712-27A11
WASHER,CHAIN ADJUSTER
€ 6.00
28
6145506B00
ref: 28
64713-27A11
WASHER,CHAIN ADJUSTER
€ 6.00
29
6510006B30
ref: 29
TIRE COMP,TUBELESS 160
€ 0.00
30
4313075150
ref: 30
43130-78030
VALVE,TIRE
€ 14.50
31-1
5541100A00
ref: 31-1
BALANCER,WHEEL (10G)
€ 6.50
31-2
5541200A00
ref: 31-2
55412-17G00
BALANCER,WHEEL
€ 7.00
31-3
5541300A00
ref: 31-3
55413-00A01
BALANCER,WHEEL
€ 4.00
