SEAT (MODEL J)
GSXR1100 1988 (J) USA (E03)

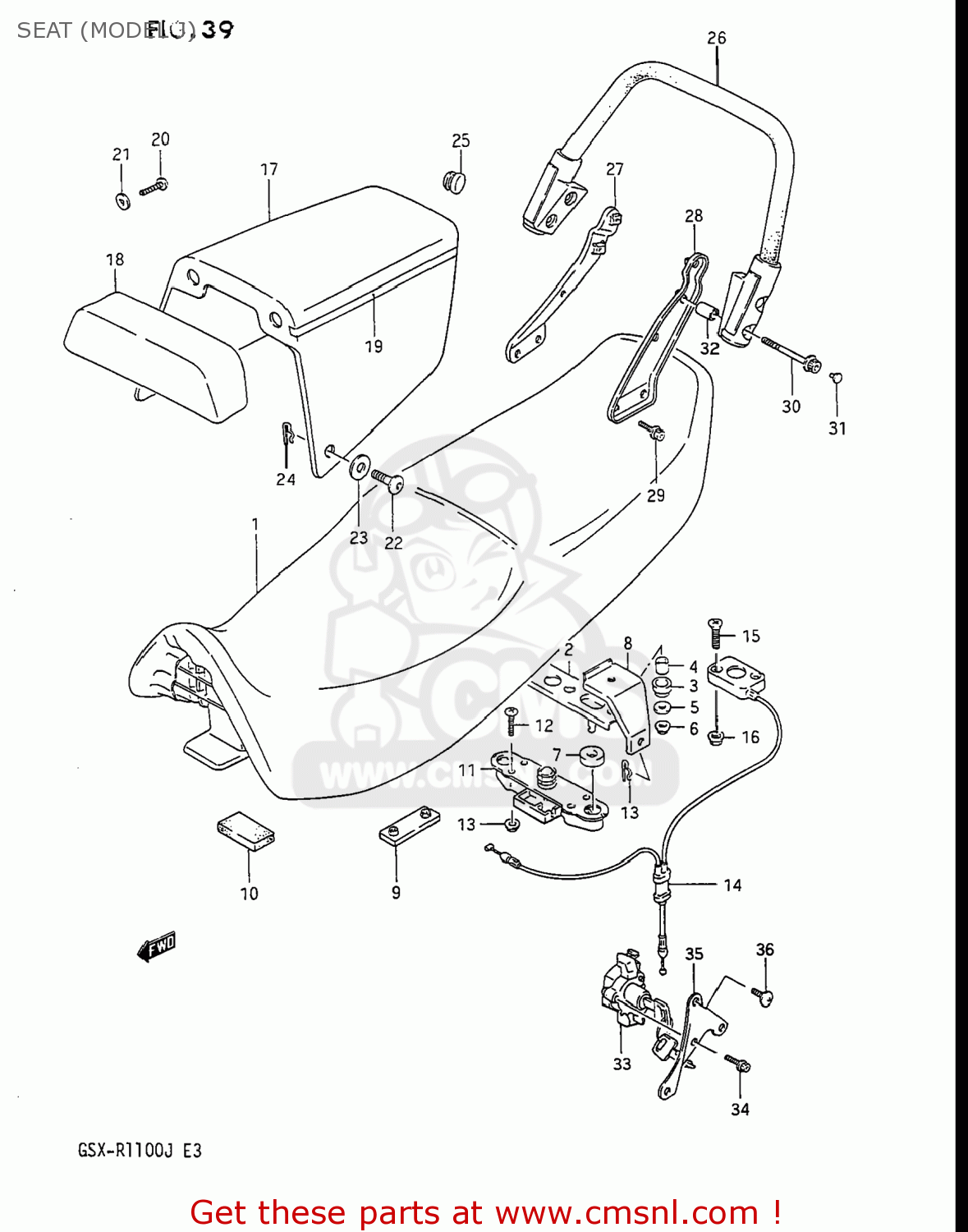

Seat (model j) diagram GSXR1100 1988 (J) USA (E03)
SEAT (MODEL J) GSXR1100 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510006B114VP
ref: 1-1
45100-06B01-58R
SEAT ASSEMBLY
€ 385.00
1-2
4510006B115DK
ref: 1-2
45100-06B01-58R
SEAT ASSEMBLY
€ 385.00
2
4521006B00
ref: 2
STRIKER,SEAT LOCK
€ 23.00
3
4521506B00
ref: 3
CUSHION
€ 4.50
4
4521606B00
ref: 4
SPACER
€ 2.50
5
0916006020
ref: 5
09160-06066
WASHER
€ 2.00
6
0831616066
ref: 6
08316-1006B
NUT
€ 2.50
7
4521331300
ref: 7
CUSHION
€ 1.50
8
4523006B00
ref: 8
PLATE,SEAT GRIP BAND
€ 8.50
9
0932108009
ref: 9
CUSHION
€ 4.00
10
4525527A00
ref: 10
CUSHION
€ 0.00
11
4522013601
ref: 11
LOCK ASSY,SEAT STRIKER
€ 47.00
12
0211206305
ref: 12
02112-0630A
SCREW
€ 2.50
13
0831626065
ref: 13
08316-2006A
NUT
€ 2.00
14
4522006B00
ref: 14
BRACKET,SEAT SUPPORT RR
€ 72.50
15
0212206255
ref: 15
02122-0625A
SCREW
€ 2.00
16
0831626065
ref: 16
08316-2006A
NUT
€ 2.00
17-1
45550068709HD
ref: 17-1
BOX SET,SEAT TAIL
€ 381.00
17-2
45550068709SR
ref: 17-2
BOX SET,SEAT TAIL
€ 344.00
17-2
45550068709SR
ref: 17-2
BOX SET,SEAT TAIL
€ 344.00
18-1
4622027A014VP
ref: 18-1
46220-27A01-58R
BACKREST,SEAT
€ 61.00
18-2
4622027A015DK
ref: 18-2
46220-27A01-58R
BACKREST,SEAT
€ 61.00
19-1
6865006B1013Z
ref: 19-1
TAPE SET,SEAT TAIL BOX
€ 0.00
19-1
6865006B1013Z
ref: 19-1
TAPE SET,SEAT TAIL BOX
€ 0.00
19-2
6865006B1022R
ref: 19-2
TAPE SET,SEAT TAIL BOX
€ 0.00
19-2
6865006B1022R
ref: 19-2
TAPE SET,SEAT TAIL BOX
€ 0.00
20
0214206205
ref: 20
02142-0620A
SCREW, CENTER
€ 2.00
21
0916006039
ref: 21
09160-06109
WASHER (6.5X18X1.6)
€ 2.00
22
4518606B00
ref: 22
BOLT
€ 5.00
23
0916110010
ref: 23
WASHER(10X25X3.2)
€ 9.00
24
0938506001
ref: 24
CLIP
€ 11.00
25
4558127A00
ref: 25
CAP,SEAT TAIL COVER
€ 13.50
26
4621027A01
ref: 26
46210-27X00-019
HANDLE,PILLION RIDER
€ 99.50
27
4624027A00
ref: 27
PLATE,PILLION HANDLE,R
€ 10.00
28
4625027A00
ref: 28
PLATE COMP,PILLION HANDLE
€ 9.00
29
0712006168
ref: 29
07120-06167
BOLT
€ 2.50
30
0712008605
ref: 30
07120-0860B
BOLT 5X10
€ 4.50
31
0925006008
ref: 31
CAP(OD:10)
€ 3.00
32
0918008125
ref: 32
09180-08205
SPACER (8.6X13.8X21.5)
€ 6.50
33
9570027A00KEY
ref: 33
95700-27820
LOCK SET
€ 65.50
34
0712006205
ref: 34
07120-0620B
PLUG ,6X20
€ 3.50
35
4528527A00
ref: 35
BRACKET,SEAT LOCK
€ 3.50
36
0214206125
ref: 36
02142-0612A
SCREW 6X12
€ 2.00
