CLUTCH MASTER CYLINDER

GSXR1100 1988 (J) USA (E03)

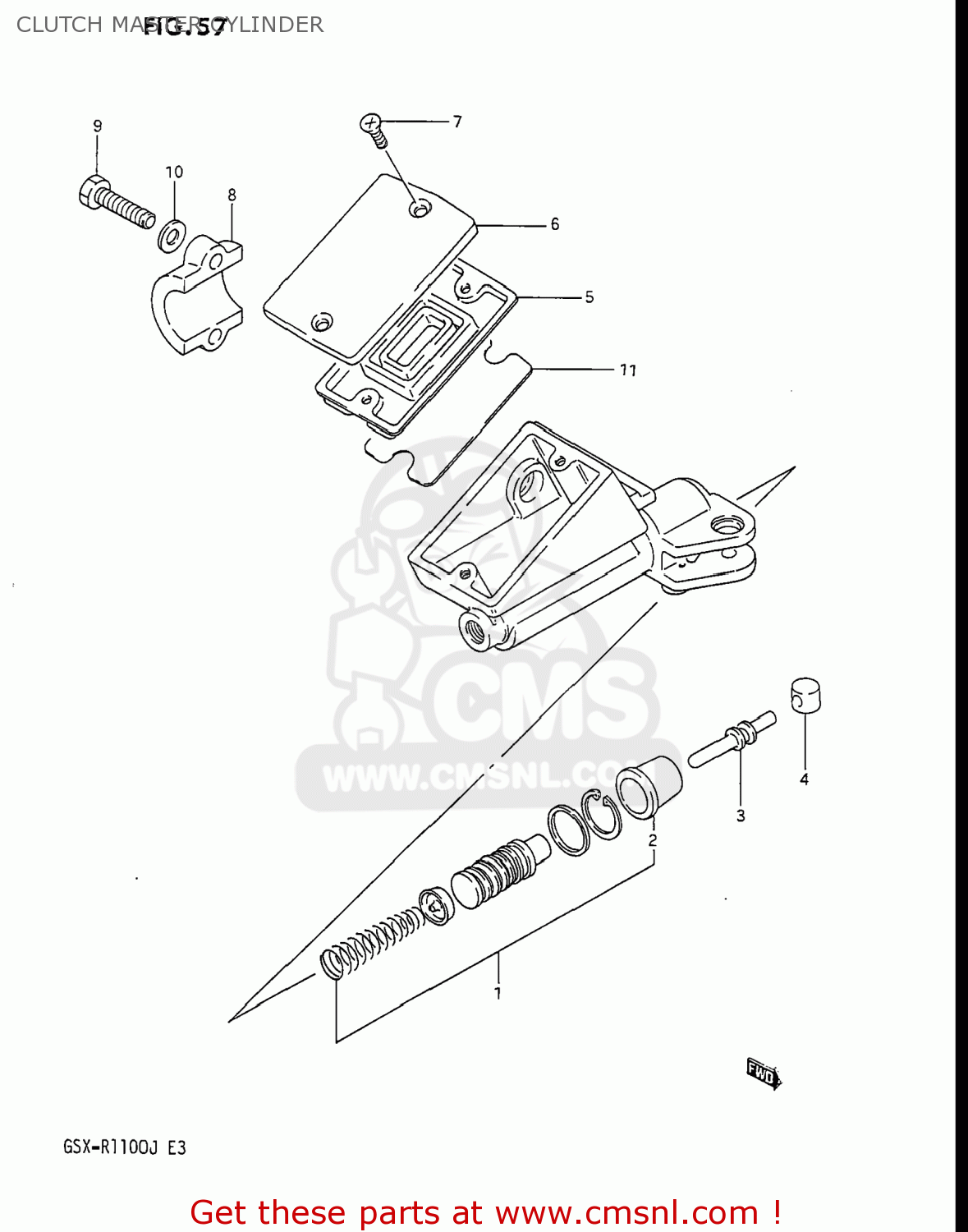

Clutch master cylinder diagram GSXR1100 1988 (J) USA (E03)

CLUTCH MASTER CYLINDER GSXR1100 1988 (J) USA (E03)

CLUTCH MASTER CYLINDER GSXR1100 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity



5980027A40
ref:
59800-40C12

CYLINDER ASSEMBLY,CLUTCH MASTER

€ 301.00

1

5980008810
ref: 1

PISTON & CUP SET

€ 36.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5987108A00
ref: 3

ROD,PUSH

€ 5.50

4

5989208A00
ref: 4

BUSH

€ 5.50

5

5966749460
ref: 5

5966749460

6

5966904A10
ref: 6
59669-41C00

CAP

€ 30.00

7

6968949300
ref: 7

SCREW

€ 1.50

8

5967116700
ref: 8
59671-19B00

HOLDER,MASTER CYLINDER

€ 18.50

9

0110706255
ref: 9
01500-0625A

BOLT

€ 2.50

10

0832221064
ref: 10
08322-0106B

WASHER

€ 2.00

11

5966405C00
ref: 11

FLOAT

€ 6.50
