OIL PUMP

GSXR1100 1988 (J) USA (E03)

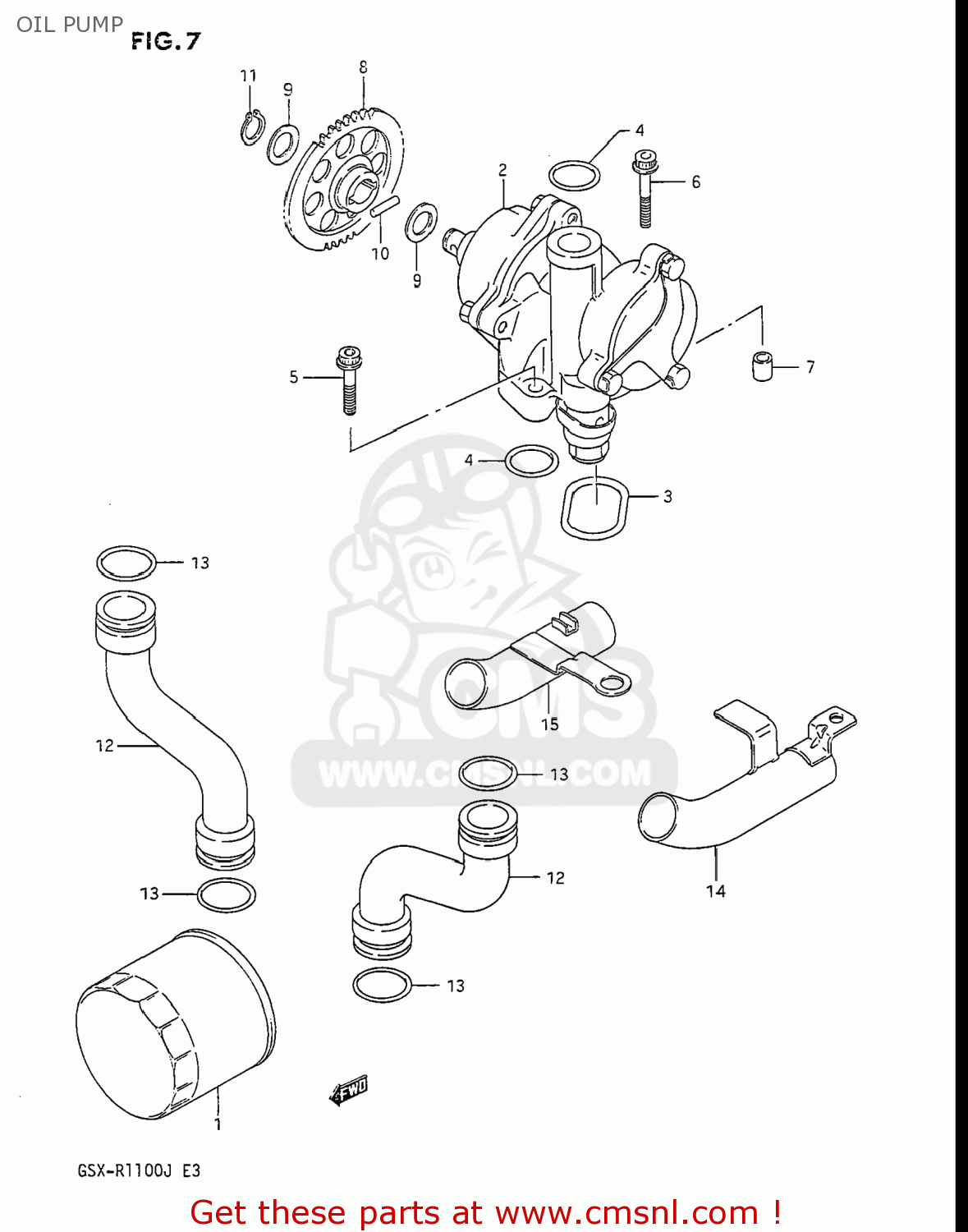

Oil pump diagram GSXR1100 1988 (J) USA (E03)

OIL PUMP GSXR1100 1988 (J) USA (E03)

OIL PUMP GSXR1100 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1651006B00
ref: 1
16510-07J00

FILTER,OIL

€ 12.50

2

1640006B01
ref: 2

PUMP ASSY,OIL

€ 348.50

3

1649127A01
ref: 3

O RING,OIL PUMP

€ 13.50

4

0928018009
ref: 4

O RING(D:3.2,ID:17.8)

€ 8.00

5

0712006308
ref: 5
07120-06307

BOLT

€ 2.50

6

0712006358
ref: 6
07120-0635B

BOLT

€ 3.50

7

0421109129
ref: 7

PIN

€ 2.00

8

1633106B010B0
ref: 8
16331-06B01-0B1

GEAR,OIL PUMP DRIVEN

€ 37.00

9

0822112205
ref: 9

SHIM

€ 1.50

10

0926105006
ref: 10

PIN(5X18)

€ 1.50

11

0833131128
ref: 11
08331-3112A

CIRCLIP

€ 2.00

12

1648006B02
ref: 12

PIPE COMP,OIL OUTLET

€ 39.00

13

0928022016
ref: 13

O RING(D:3.7,ID:21.7)

€ 5.50

14-1

1653027A00
ref: 14-1
16530-27A02

PIPE,OIL,OUTLET,UNDER

€ 22.00

14-2

1653027A02
ref: 14-2

PIPE,OIL OUTLET UNDER,L

€ 22.00

15

1654027A00
ref: 15
16540-27A02

PIPE,OIL,OUTLET,UNDER

€ 23.00
