CYLINDER HEAD
GSXR1100 1988 (J) USA (E03)

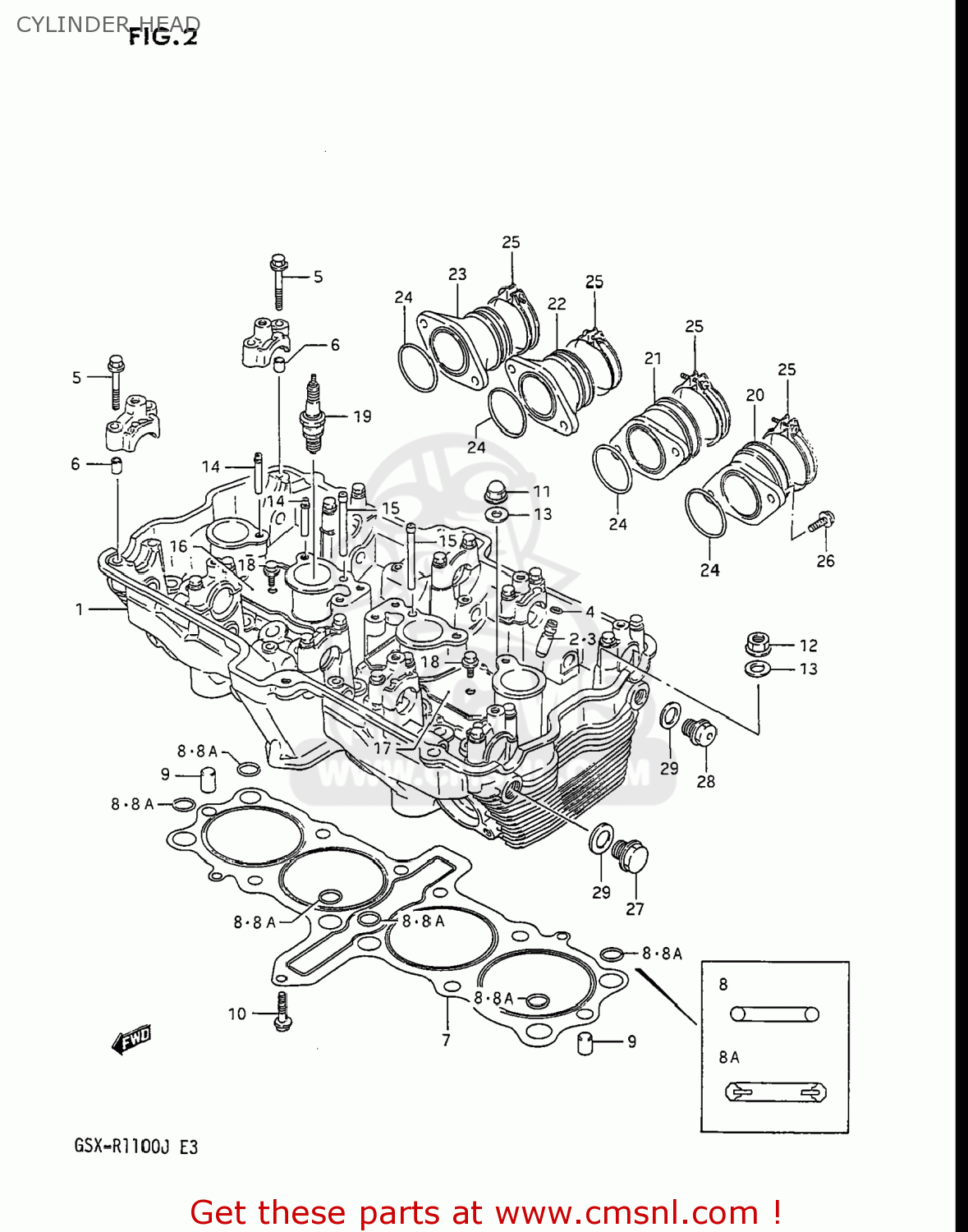

Cylinder head diagram GSXR1100 1988 (J) USA (E03)
CYLINDER HEAD GSXR1100 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110006B05
ref: 1-1
11100-48B03
HEAD ASSEMBLY,CYLINDER
€ 1,224.00
1-2
1110006B10
ref: 1-2
11100-06B11
HEAD ASSEMBLY,CYLINDER
€ 1,632.00
2
1111527A70
ref: 2
11116-06B70
GUIDE,VALVE
€ 43.00
3
1111606B70
ref: 3
GUIDE,VALVE
€ 43.00
4
0938110004
ref: 4
RING,SNAP
€ 1.50
5
0910306026
ref: 5
BOLT(6X39)
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
€ 2.00
7-1
1114106B00
ref: 7-1
11141-06B12
GASKET,CYLINDER HEAD (NAS)
€ 72.00
7-2
1114106B11
ref: 7-2
11141-06B12
GASKET,CYLINDER HEAD (NAS)
€ 72.00
8
1114327A51
ref: 8
O RING,HEAD GASKET
€ 8.00
8A
1114306B00
ref: 8A
O RING,HEAD GASKET
€ 8.00
9
0920911006
ref: 9
09209-11007
PIN
€ 16.00
10
0151706254
ref: 10
01550-0625A
BOLT
€ 2.50
11
0915910054
ref: 11
NUT
€ 7.50
12
0831616106
ref: 12
08316-1010B
NUT
€ 2.00
13
0916810031
ref: 13
GASKET(10.2X20X2).3 (NAS)
€ 2.00
14
1113127A00
ref: 14
PIPE,OIL NO.1
€ 6.00
15
1113327A00
ref: 15
PIPE,OIL NO.3
€ 7.00
16
1113527A02
ref: 16
PLATE,OIL PIPE,R
€ 4.00
17
1113627A02
ref: 17
PLATE,OIL PIPE,L
€ 4.00
18
0151706128
ref: 18
01550-06127
BOLT
€ 2.50
19-1
0948200365
ref: 19-1
09482-00389
SPARK PLUG
€ 8.00
19-2
0948200371
ref: 19-2
09482-00391
SPARK PLUG
€ 9.00
20
1311006B00
ref: 20
13101-06B00
PIPE,INTAKE
€ 32.50
21
1312006B00
ref: 21
13102-06B00
PIPE,INTAKE
€ 33.50
22
1313006B00
ref: 22
13103-06B00
NET,INTAKE
€ 33.50
23
1314006B00
ref: 23
13104-06B00
PIPE,INTAKE
€ 33.50
24
1311527A01
ref: 24
09280-40010
O RING(D:2.4,ID:39.7)
€ 3.50
25
0940250208
ref: 25
CLAMP
€ 5.00
26
0215206165
ref: 26
02112-0616A
SCREW
€ 2.00
27-1
0924714034
ref: 27-1
PLUG
€ 3.50
27-2
0924714032
ref: 27-2
PLUG
€ 5.00
28
0924714032
ref: 28
PLUG
€ 5.00
29
0916814004
ref: 29
GASKET(14X19.2X2) (NAS)
€ 2.50
