FRONT FENDER (MODEL H/J)

GSXR1100 1988 (J) USA (E03)

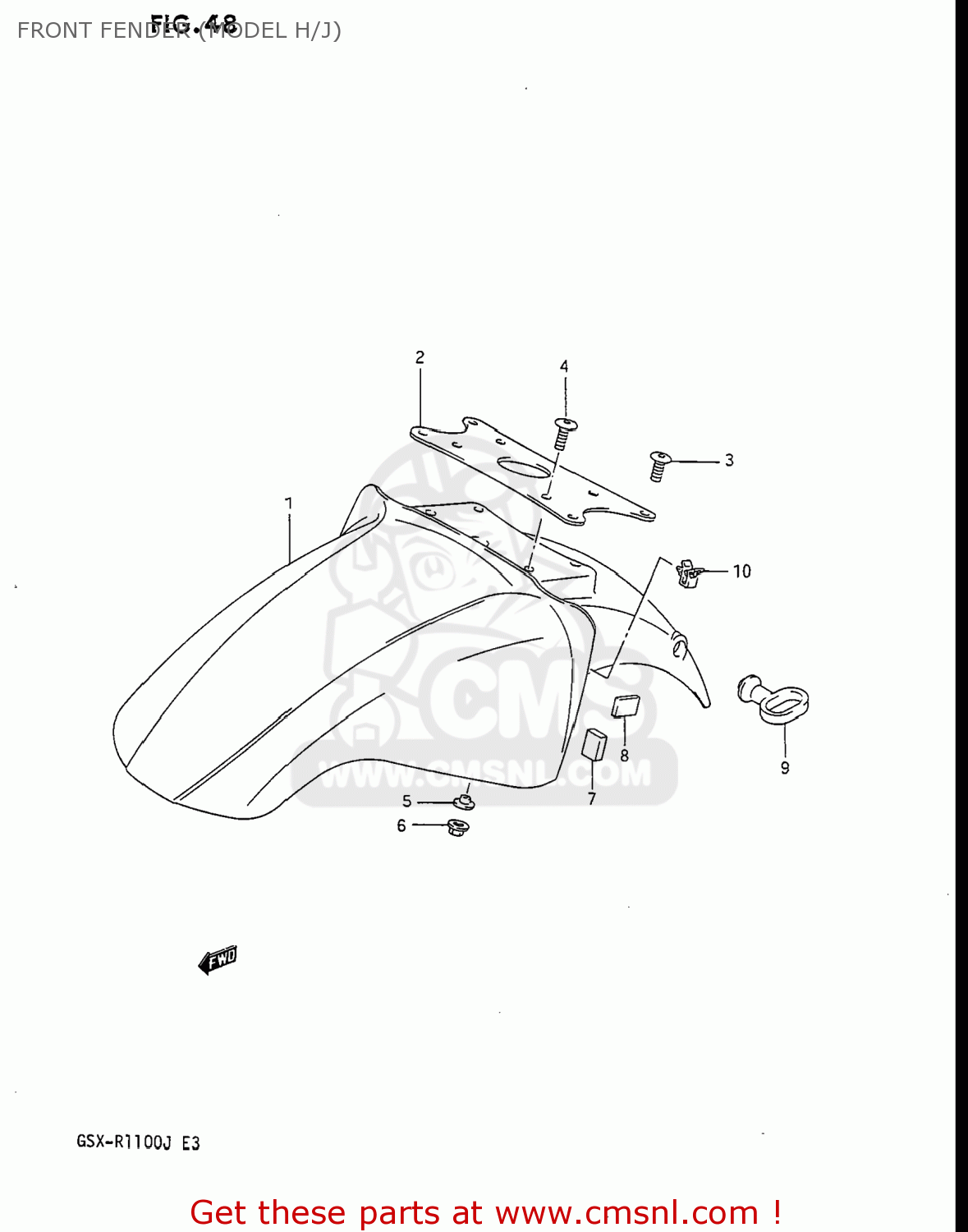

Front fender (model h/j) diagram GSXR1100 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311128A2122P
ref: 1-1
53111-28A51-22P

FENDER,FRONT

€ 210.00

1-2

5311128A2122R
ref: 1-2
53111-28A51-13L

FENDER,FRONT

€ 201.50

1-3

5311128A2122P
ref: 1-3
53111-28A51-22P

FENDER,FRONT

€ 210.00

1-4

5311128A2133N
ref: 1-4
53111-28A51-13L

FENDER,FRONT

€ 201.50

5311406B00
ref: 2

BRACE,FRONT FENDER

€ 20.50

0913908007
ref: 3

SCREW(8X16)

€ 4.50

0913905025
ref: 4

SCREW(5X14)

€ 2.00

0916905008
ref: 5

WASHER

€ 3.00

0831931056
ref: 6
08319-3105B

NUT

€ 3.00

5314528A00
ref: 7

CUSHION,FRONT FENDER,FRONT

€ 5.00

5343128A10
ref: 8

CUSHION,FR FENDER SIDE

€ 3.50

5862121203
ref: 9
58621-21204

GUIDE,CABLE

€ 7.50

0940305305
ref: 10

CLIP

€ 3.00
