FUEL TANK (MODEL G/H)
GSXR1100 1988 (J) USA (E03)

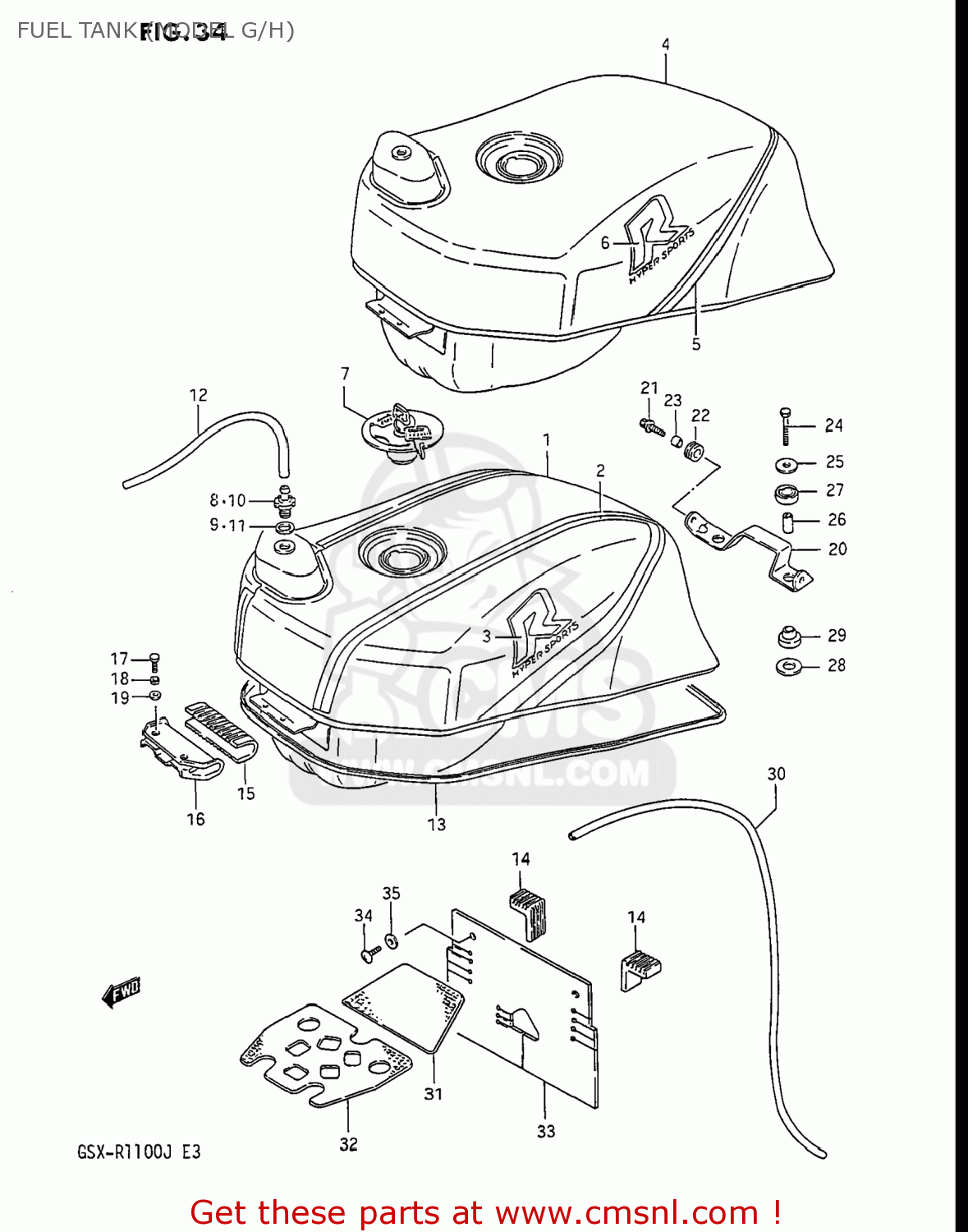

Fuel tank (model g/h) diagram GSXR1100 1988 (J) USA (E03)
FUEL TANK (MODEL G/H) GSXR1100 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410006B208JV
ref: 1-1
44110-06BV0-13L
TANK ASSEMBLY,FUEL
€ 807.00
1-1
4410006B208JV
ref: 1-1
44110-06BV0-13L
TANK ASSEMBLY,FUEL
€ 807.00
1-2
4410006B208JW
ref: 1-2
44110-06BV0-13L
TANK ASSEMBLY,FUEL
€ 807.00
1-2
4410006B208JW
ref: 1-2
44110-06BV0-13L
TANK ASSEMBLY,FUEL
€ 807.00
1-3
4410006B308JV
ref: 1-3
TANK ASSEMBLY,FUEL
€ 506.50
1-3
4410006B308JV
ref: 1-3
TANK ASSEMBLY,FUEL
€ 506.50
1-4
4410006B308JW
ref: 1-4
44100-06B31-8JW
(CA) TANK ASSEMBLY,FUEL
€ 506.50
1-4
4410006B308JW
ref: 1-4
44100-06B31-8JW
(CA) TANK ASSEMBLY,FUEL
€ 506.50
2-1
6811006B118KA
ref: 2-1
TAPE SET,FUEL TANK
€ 0.00
2-2
6811006B118KB
ref: 2-2
TAPE SET,FUEL TANK
€ 0.00
3
6811127A008KC
ref: 3
68111-27A00-8SP
EMBLEM
€ 13.50
4-1
4410006B409HD
ref: 4-1
44110-06BV0-13L
TANK ASSEMBLY,FUEL
€ 807.00
4-1
4410006B409HD
ref: 4-1
44110-06BV0-13L
TANK ASSEMBLY,FUEL
€ 807.00
4-2
4410006B409HJ
ref: 4-2
44110-06BV0-13L
TANK ASSEMBLY,FUEL
€ 807.00
4-2
4410006B409HJ
ref: 4-2
44110-06BV0-13L
TANK ASSEMBLY,FUEL
€ 807.00
4-3
4410006B609HD
ref: 4-3
44100-06B61-9HD
TANK ASSEMBLY,FUEL
€ 506.50
4-3
4410006B609HD
ref: 4-3
44100-06B61-9HD
TANK ASSEMBLY,FUEL
€ 506.50
4-4
4410006B609HJ
ref: 4-4
44100-06B61-9HD
TANK ASSEMBLY,FUEL
€ 506.50
4-4
4410006B609HJ
ref: 4-4
44100-06B61-9HD
TANK ASSEMBLY,FUEL
€ 506.50
5-1
6811027A409HU
ref: 5-1
TAPE SET,FUEL TANK
€ 73.50
5-2
6811027A409HT
ref: 5-2
TAPE SET,FUEL TANK
€ 47.50
6-1
6811127A008SP
ref: 6-1
EMBLEM,FUEL TANK
€ 13.50
6-2
6811127A009HJ
ref: 6-2
EMBLEM,FUEL TANK
€ 11.50
7
4420020A00KEY
ref: 7
44200-20841
CAP SET,FUEL TANK
€ 174.00
8
4424006B10
ref: 8
PLUG,FUEL TANK BREATHER
€ 36.00
9
0916812012
ref: 9
GASKET(12.5X20X2.5) (NAS)
€ 2.00
10
4424028A01
ref: 10
(CA) VALVE,FUEL TANK BREATHER
€ 65.00
11
0916827001
ref: 11
GASKET 27X40X2.5 (NAS)
€ 2.50
12
0934305165
ref: 12
09352-50823-00B
HOSE,FUEL
€ 13.00
13
6824127A00
ref: 13
68241-04X50-00B
MOLDING,FUEL TANK
€ 23.00
14
4454527A10
ref: 14
CUSHION,FUEL TANK SIDE
€ 4.00
15
4451127A10
ref: 15
CUSHION,FUEL TANK FR
€ 7.00
16
4452127A00
ref: 16
BRACKET,FUEL TANK FR
€ 16.00
17
0110706205
ref: 17
01500-0620A
BOLT
€ 2.00
18
0832121064
ref: 18
08321-0106A
WASHER,LOCK
€ 2.00
19
0832221064
ref: 19
08322-0106B
WASHER
€ 2.00
19
0832221064
ref: 19
08322-0106B
WASHER
€ 2.00
20
4521106B00
ref: 20
BRACKET,SEAT SUPPORT,FRONT
€ 5.00
21
0913806042
ref: 21
09118-06087-XC0
BOLT
€ 3.00
22
0932008007
ref: 22
09320-08021
CUSHION
€ 4.00
23
0918006038
ref: 23
SPACER(6.1X9X7.5)
€ 2.00
24
0110706356
ref: 24
01500-0635A
BOLT ,6X35
€ 2.50
25
0916006072
ref: 25
09160-06501
WASHER (6.5X24X1.6)
€ 2.00
26
0918006072
ref: 26
09180-06271
SPACER
€ 2.00
27
0932014017
ref: 27
CUSHION
€ 3.00
28
0916012004
ref: 28
09160-12088
WASHER (12.5X24X1.6)
€ 2.00
29
0932010038
ref: 29
CUSHION
€ 4.00
30
0934305165
ref: 30
09352-50823-00B
HOSE,FUEL
€ 13.00
31
4419127A00
ref: 31
47166-03D00
SHIELD,FUEL TANK HEAT
€ 15.50
32
4419227A00
ref: 32
44192-27A01
SHIELD,FUEL TANK HEAT
€ 25.50
33
4419406B00
ref: 33
SHIELD,HEAT NO.1
€ 14.50
34
0214206207
ref: 34
SCREW
€ 2.00
35
0916006007
ref: 35
09160-06084
WASHER
€ 2.00
35
0916006007
ref: 35
09160-06084
WASHER
€ 2.00
