STARTER CLUTCH

GSXR1100 1988 (J) USA (E03)

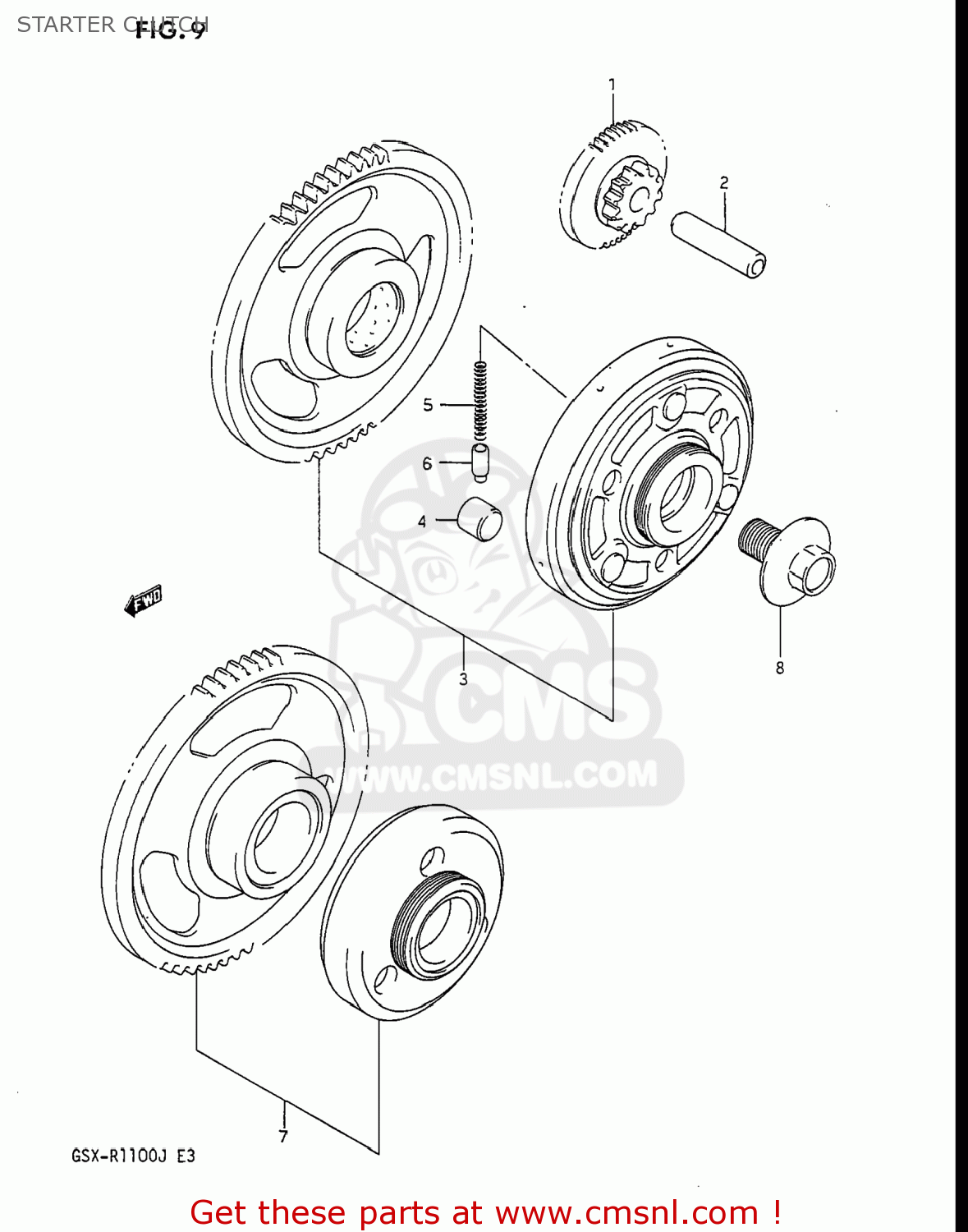

Starter clutch diagram GSXR1100 1988 (J) USA (E03)

STARTER CLUTCH GSXR1100 1988 (J) USA (E03)

STARTER CLUTCH GSXR1100 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261106B00
ref: 1

GEAR,STARTER IDLE(NT:12,53)

€ 68.50

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260006840
ref: 3
12600-06841

CLUTCH SET,STARTER

€ 281.00

4

0926115001
ref: 4

ROLLER(15X13)

€ 3.50

5

0944004015
ref: 5

SPRING

€ 2.50

6

1263331000
ref: 6

PIECE,PUSH

€ 9.00

7

1260006850
ref: 7
12600-48813

CLUTCH SET,STARTER

€ 377.50

8

0910314005
ref: 8

BOLT(14X21)

€ 17.00
