OIL PAN
GSXR1100 1988 (J) USA (E03)

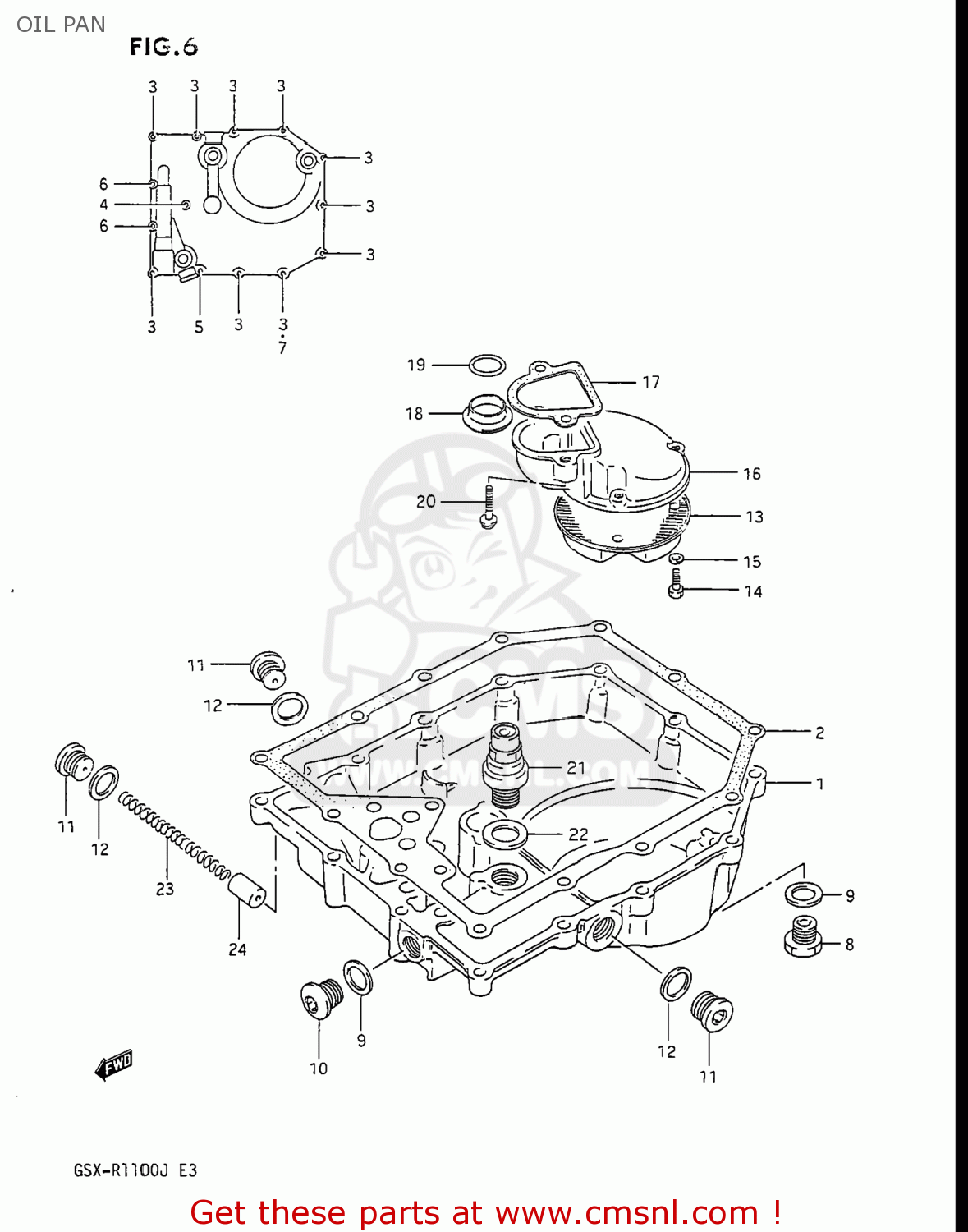

Oil pan diagram GSXR1100 1988 (J) USA (E03)
OIL PAN GSXR1100 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151127A01
ref: 1
11511-17D01
PAN,OIL
€ 156.00
2
1148927A00
ref: 2
11489-27A21
GASKET,OIL PAN (NAS)
€ 23.00
3
0711006255
ref: 3
07130-0625B
BOLT
€ 3.00
4
0711006355
ref: 4
07130-0635B
BOLT
€ 3.50
5
0711006405
ref: 5
07130-0640B
BOLT
€ 3.50
6
0711006455
ref: 6
07130-0645B
BOLT
€ 2.50
7
0916806024
ref: 7
GASKET(5.8X11X1.2) (NAS)
€ 2.00
8
0924714001
ref: 8
09247-14002
PLUG
€ 5.00
9
0916814004
ref: 9
GASKET(14X19.2X2) (NAS)
€ 2.50
10
0924814004
ref: 10
09248-14010
PLUG
€ 5.00
11
0924816010
ref: 11
09248-16012
PLUG
€ 4.50
12
0916816002
ref: 12
GASKET(16X22X2) (NAS)
€ 2.00
13
1652006B00
ref: 13
16520-06B01
STRAINER,ENGINE OIL
€ 12.50
14
0110706127
ref: 14
01500-06127
BOLT
€ 2.00
15
0832121067
ref: 15
08321-01067
WASHER,LOCK
€ 2.50
16
1652506B00
ref: 16
PROTECTOR,OIL STRAINER
€ 33.50
17
1652827A02
ref: 17
16528-27A21
GASKET,OIL STRAINER PROTECTOR (NAS)
€ 9.00
18
1652927A01
ref: 18
GASKET,OIL OUTLET (NAS)
€ 2.00
19
0928018009
ref: 19
O RING(D:3.2,ID:17.8)
€ 8.00
20
0151706258
ref: 20
01550-06257
BOLT
€ 2.50
21
1644027A00
ref: 21
16440-27A01
VALVE ASSEMBLY,OIL RELIEF
€ 42.00
22
0916816002
ref: 22
GASKET(16X22X2) (NAS)
€ 2.00
23
0944009027
ref: 23
SPRING
€ 4.50
24
1644234301
ref: 24
PLUNGER,OIL CONTROLL
€ 16.00
