prices are in EUR
ref
part #
description
quantity
1-2

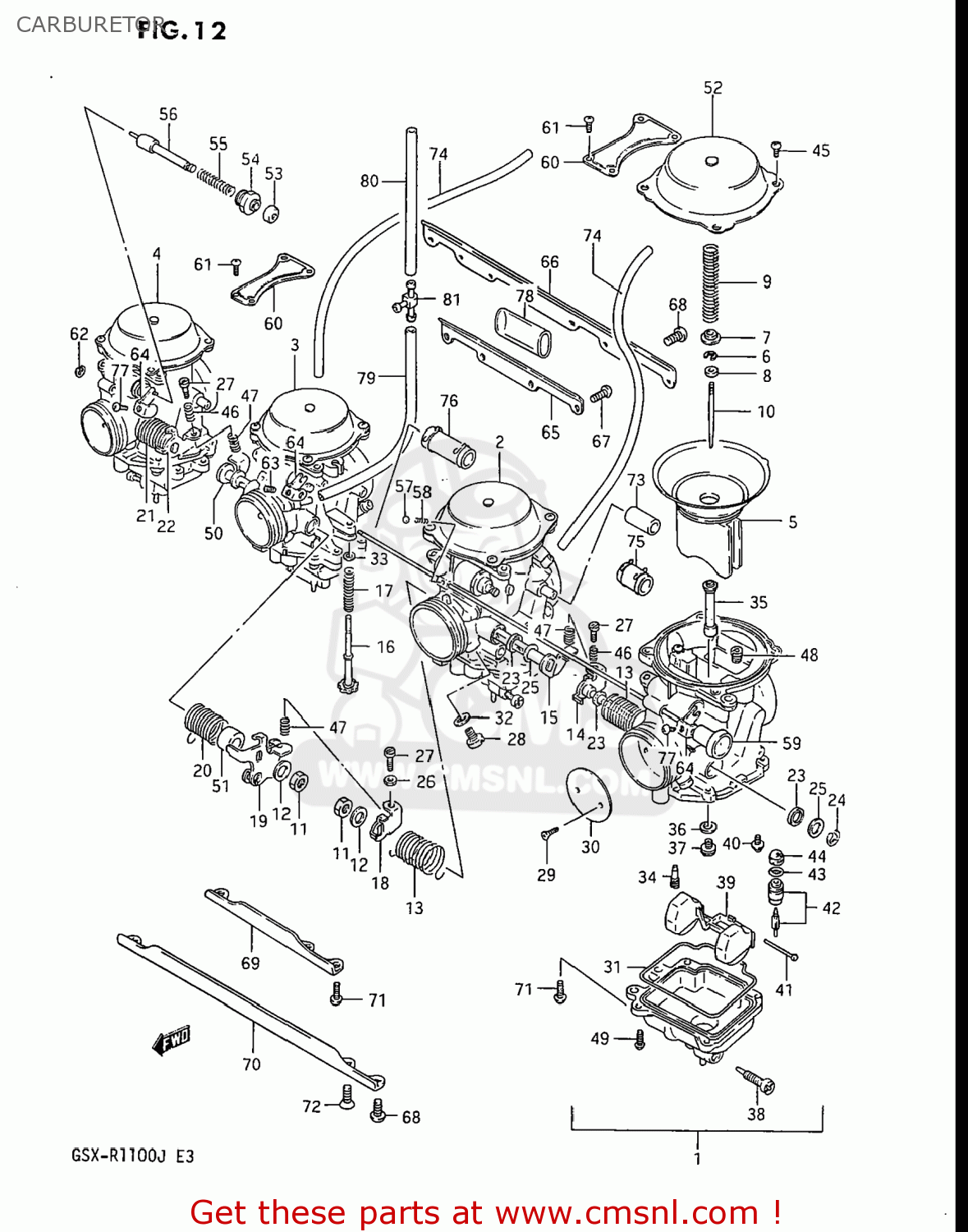

CARBURETOR ASSEMBLY,LEFT
1-2
CARBURETOR ASSEMBLY,LEFT
1-3
CARBURETOR ASSEMBLY,LEFT (BST
2-2
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-2
CARBURETOR ASSEMBLY,MIDDLE,LEFT
3-2
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-2
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-4
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
4-2
CARBURETOR ASSEMBLY,RIGHT
4-2
CARBURETOR ASSEMBLY,RIGHT
5
DIAPHRAGM ASSY
6
CAP,LEVER
7
RING
8
RING
9
SPRING
10
NEEDLE,JET
12
WASHER
23
SEAL
24
E RING
25
GASKET,THROTTLE SHAFT (NAS)
26
NUT,THROTTLE ROD
27
SCREW
28
SCREW
31
O RING,FLOAT CHAMBER
32
WASHER
33
WASHER
34
JET,PILOT(32.5)
35
JET,NEEDLE (P-2)
37
JET,MAIN(130)
38
SCREW
39
FLOAT
40
SCREW
41
PIN,FLOAT
42
VALVE ASSY,NEEDLE
43
O RING
45-1
SCREW
45-2
SCREW
46
SPRING
48-1
JET,AIR(135)
48-2
JET,AIR
51
RING
53
CAP,STARTER VALVE
54
GUIDE SCREW,PLUNGER
55
SPRING
56
PLUNGER ASSY
57
BALL,CARBURETOR
61
SCREW
63
SCREW
71
SCREW
76
HOSE ASSY
81
NIPPLE
