REAR FENDER

GSXR1100 1988 (J) USA (E03)

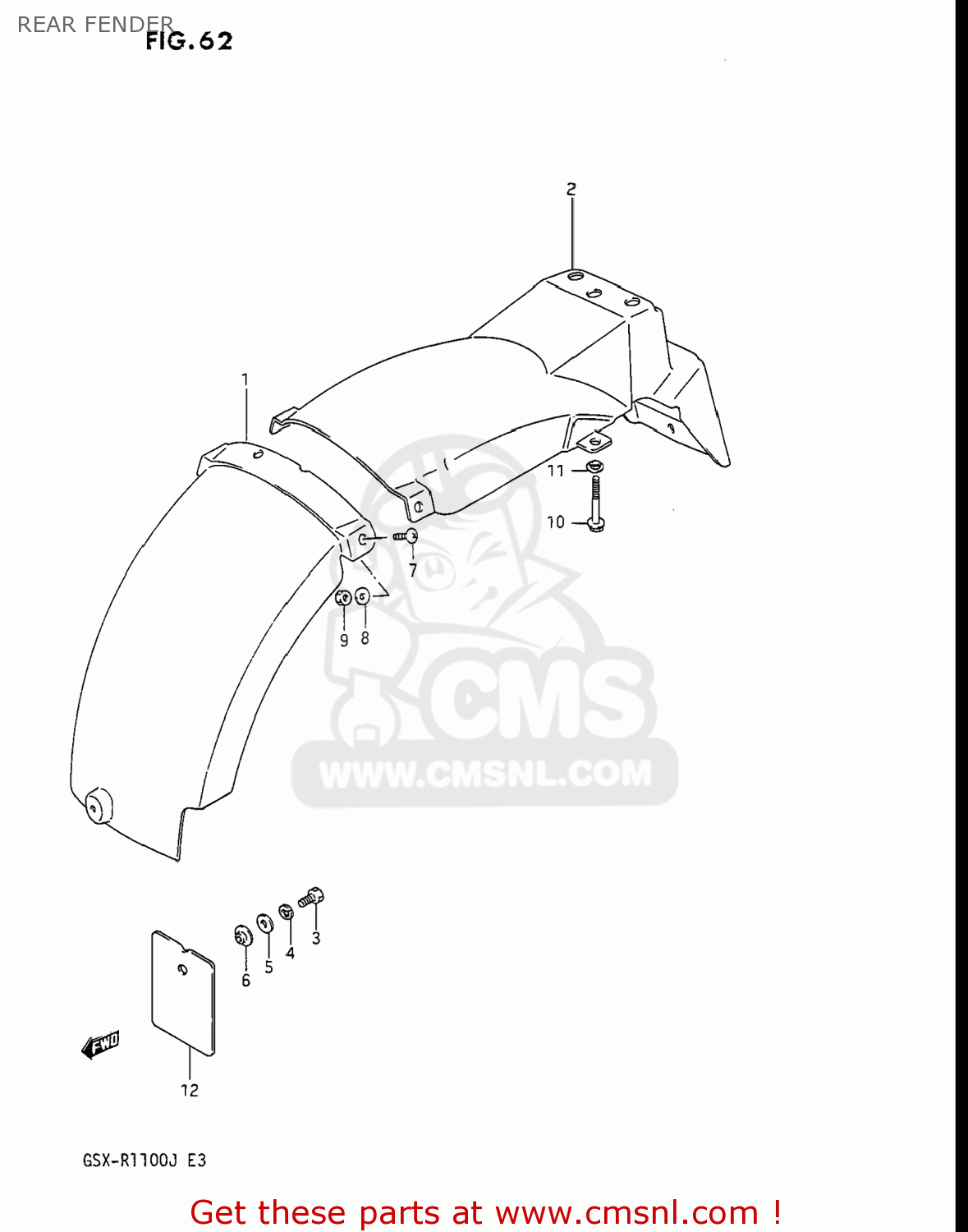

Rear fender diagram GSXR1100 1988 (J) USA (E03)

REAR FENDER GSXR1100 1988 (J) USA (E03)

REAR FENDER GSXR1100 1988 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6311227A00
ref: 1

BODY,REAR FENDER,FRONT

€ 59.00

2

6311306B00
ref: 2
63113-06X50

FENDER,REAR

€ 83.00

3

0110706207
ref: 3
01500-06207

BOLT

€ 2.00

4

0832121067
ref: 4
08321-01067

WASHER,LOCK

€ 2.50

5

0916006007
ref: 5
09160-06084

WASHER

€ 2.00

6

0916906038
ref: 6

WASHER

€ 2.50

7

0214206166
ref: 7
02142-0616A

SCREW

€ 2.50

8

0916006007
ref: 8
09160-06084

WASHER

€ 2.00

9

0831921068
ref: 9
08319-2106A

NUT 6MM

€ 2.00

10

0151708555
ref: 10
01550-0855A

BOLT

€ 3.00

11

0916908034
ref: 11

WASHER

€ 2.00

12

6341127A00
ref: 12

MUD GUARD,REAR FENDER,FRONT

€ 9.50
