BATTERY

GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

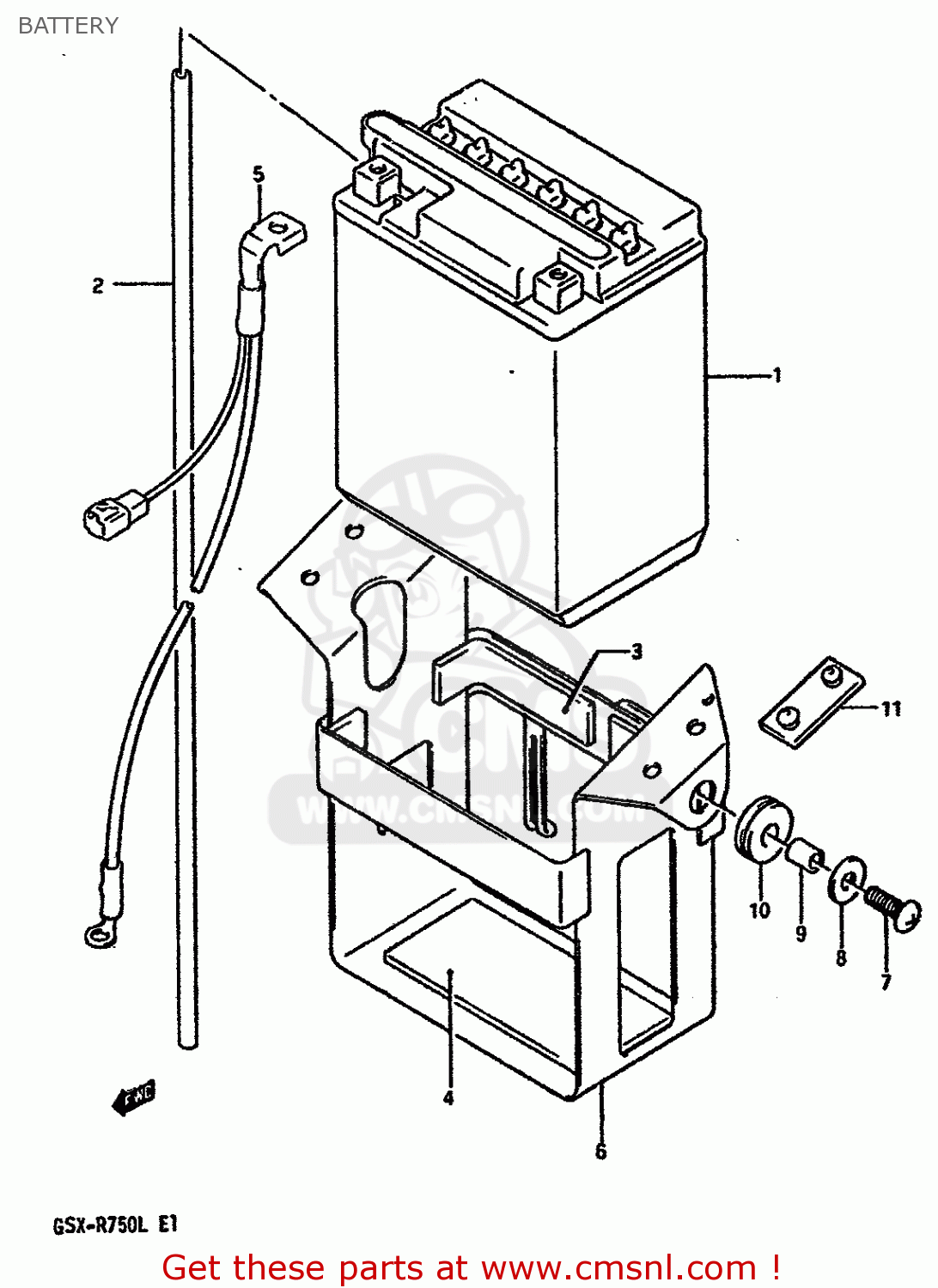

Battery diagram GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

3368014A00
ref: 2
L:700-650

HOSE,BATTERY EXHAUST

€ 4.50

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

3365137000
ref: 4
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3386017C01
ref: 5

WIRE,BATTERY MINUS LEAD

€ 17.00

4154017C01
ref: 6

HOLDER,BATTERY

€ 46.50

0912506038
ref: 7

SCREW

€ 3.00

0916006007
ref: 8

WASHER

€ 2.00

0918006152
ref: 9

SPACER

€ 3.00

0932009021
ref: 10

CUSHION

€ 4.00

0932905005
ref: 11

CUSHION

€ 4.00
