FUEL COCK

GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

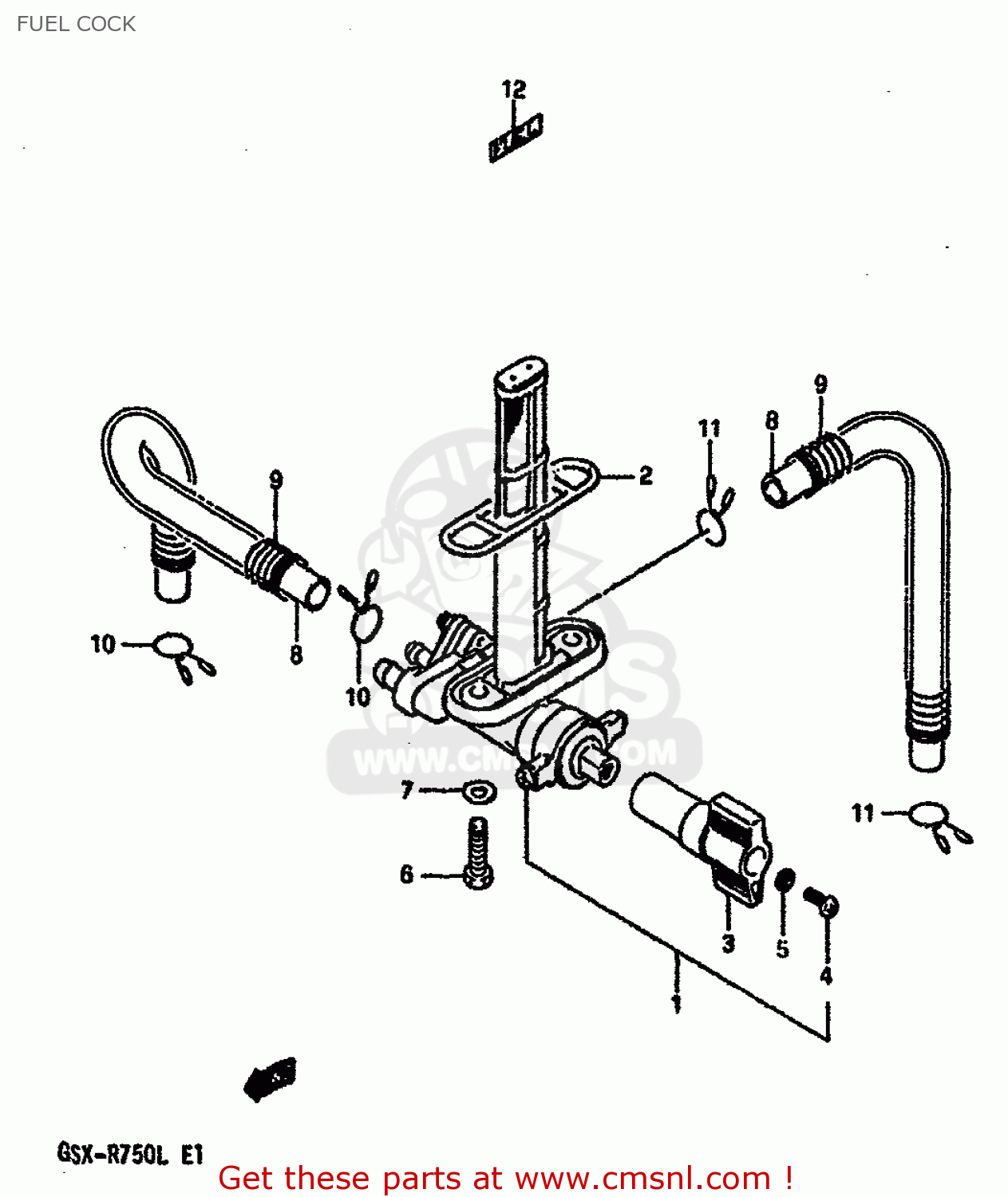

Fuel cock diagram GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

FUEL COCK GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

FUEL COCK GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

4430017C00
ref: 1-1
MODEL J/K

COCK ASSEMBLY,FUEL

€ 243.00

1-2

4430017C01
ref: 1-2
MODEL L

COCK ASSEMBLY,FUEL

€ 243.00

2

4430517C00
ref: 2

O RING,FUEL TANK JOINT

€ 9.00

3

4430617C00
ref: 3

LEVER,FUEL COCK

€ 16.00

4

0211204126
ref: 4

SCREW

€ 1.50

5

0832121046
ref: 5

LOCK WASHER

€ 2.00

6

0912806006
ref: 6

BOLT(6X20)

€ 2.00

7

0916806026
ref: 7

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

8

0935270103300
ref: 8

HOSE

€ 8.00

9

0944013047
ref: 9

SPRING

€ 6.00

10

0940110402
ref: 10

CLIP

€ 7.00

11-1

0940110201
ref: 11-1

CLIP

€ 2.00

11-2

0940111411
ref: 11-2
MODEL J E75 (NORWAY)

CLIP

€ 4.50

12

4439517C00
ref: 12
MODEL J/K

LABEL (FUEL)

€ 0.00
