FRONT CALIPERS (MODEL L)

GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

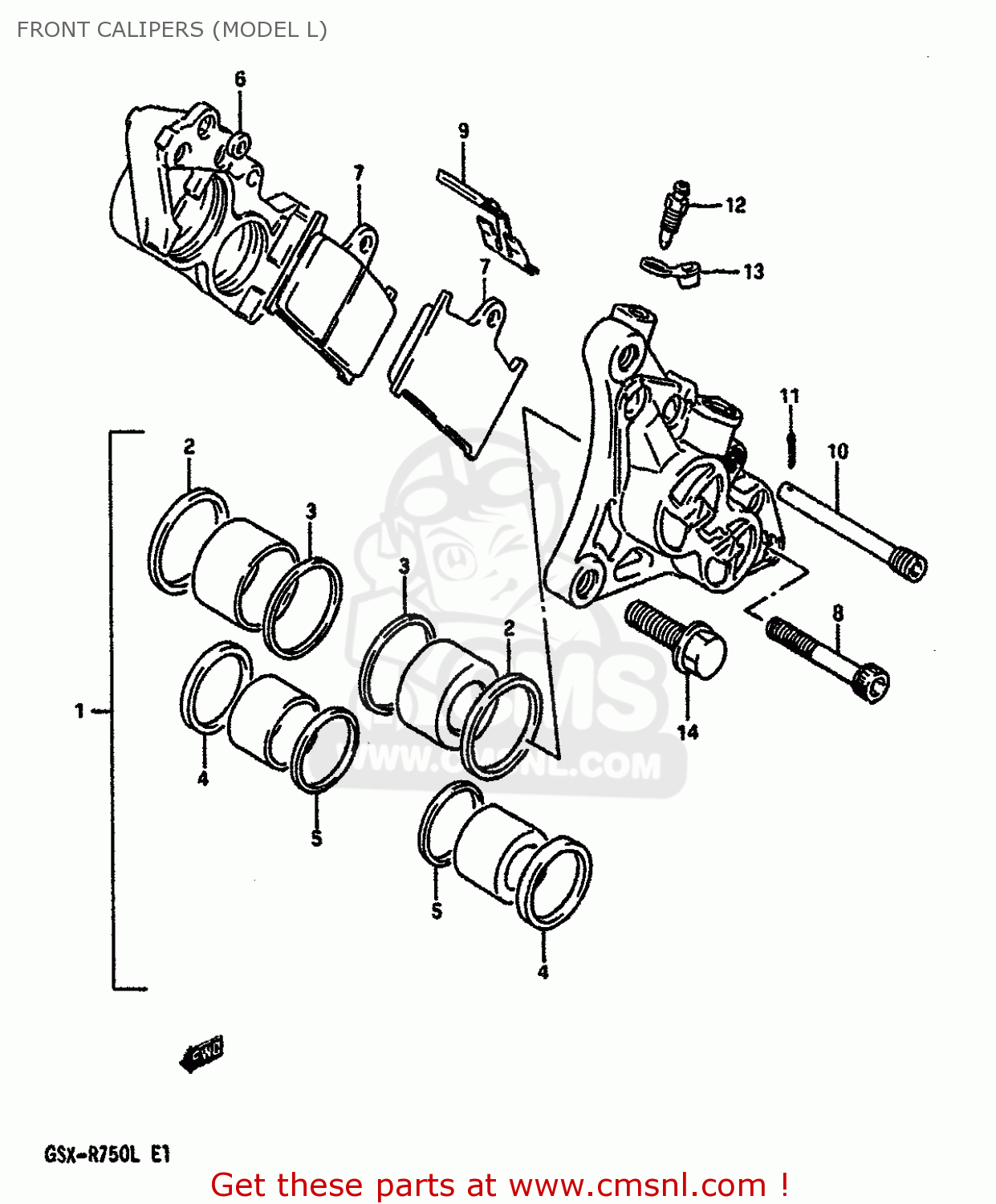

Front calipers (model l) diagram GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

FRONT CALIPERS (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
FRONT CALIPERS (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
FRONT CALIPERS (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
0
5910033C00
ref: 0
CALIPER ASSEMBLY,RIGHT
€ 658.00
0
5930033C00
ref: 0
CALIPER ASSEMBLY,LEFT
€ 518.00
1
5910017830
ref: 1
PISTON SET
5910017830
€ 239.50
2
5910713A00
ref: 2
SEAL,PISTON
5910713A00
€ 11.00
3
5910813A00
ref: 3
BOOT,PISTON
5910813A00
€ 11.00
4
5910717C00
ref: 4
SEAL,PISTON
5910717C00
€ 12.00
5
5910817C00
ref: 5
SEAL
5910817C00
€ 12.00
6
6910717C00
ref: 6
SEAL
6910717C00
€ 9.00
7
5913033C00
ref: 7
PAD,BRAKE
€ 43.00
8
5914517C00
ref: 8
BOLT
5914517C00
€ 7.00
9
5931517C00
ref: 9
SPRING
5931517C00
€ 13.00
10
5934533C00
ref: 10
PIN,HANGER
5934533C00
€ 27.50
11
0411116158
ref: 11
COTTER PIN
€ 2.00
12
5912101A00
ref: 12
BLEEDER
5912101A00
€ 8.50
13
5912201A00
ref: 13
CAP,BLEEDER
5912201A00
€ 4.50
14
0151710305
ref: 14
BOLT 10X30
€ 3.00
13
5912101A00
ref: 13
BLEEDER
5912101A00
€ 8.50
14
5912201A00
ref: 14
CAP,BLEEDER
5912201A00
€ 4.50
15
0712010305
ref: 15
MODEL J/K
BOLT
0712010305
€ 4.00
16
0151710305
ref: 16
MODEL K
BOLT 10X30
€ 3.00
