FRAME

GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

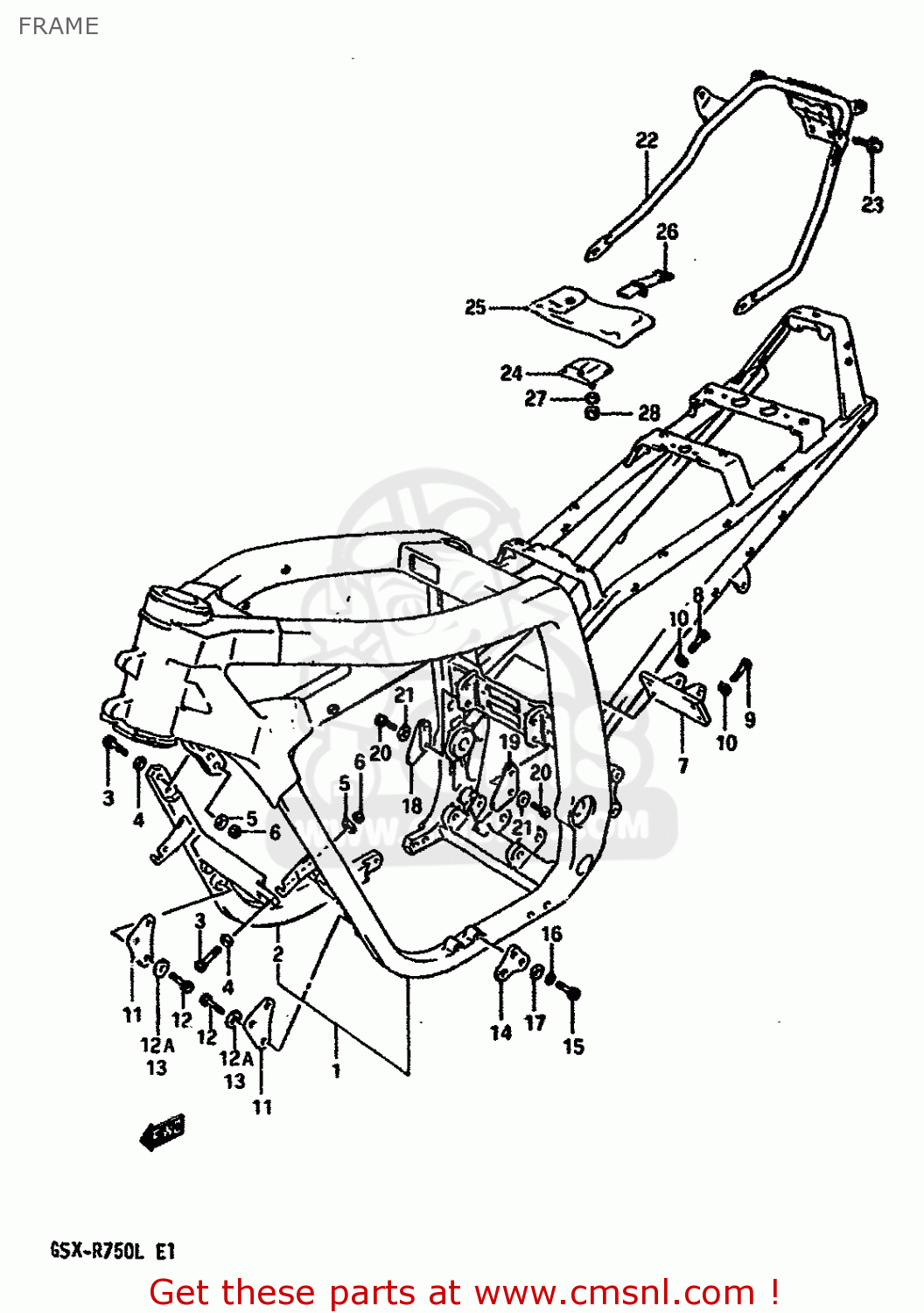

Frame diagram GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

FRAME GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
FRAME GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
FRAME GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
4110017830
ref: 1-1
MODEL J
FRAME
€ 2,597.50
1-2
4110017860
ref: 1-2
MODEL K
FRAME
€ 2,597.50
1-3
4110117810
ref: 1-3
MODEL L
FRAME
€ 2,215.00
1-4
4110117830
ref: 1-4
MODEL L E18
FRAME SET
€ 2,215.00
2-1
4114017C00
ref: 2-1
MODEL J/K
TUBE COMP,FRAME DOWN,RIGHT
€ 307.50
2-2
4114017D00
ref: 2-2
MODEL L
TUBE,FRAME
€ 0.00
3-1
0910610028
ref: 3-1
MODEL J/K
BOLT
€ 3.50
3-2
0711010357
ref: 3-2
MODEL L
BOLT, LH
€ 3.50
4
0916010013
ref: 4
WASHER (10.1X21X2.3)
0916010013
€ 2.00
5
0916410005
ref: 5
WASHER
0916410005
€ 6.50
6
0915910027
ref: 6
NUT
0915910027
€ 3.00
7-1
4138417C00
ref: 7-1
MODEL J
BRACKET,RCU
€ 109.50
7-2
4138417C60
ref: 7-2
MODEL K/L
BRACKET,RCU
€ 106.50
8
0910610017
ref: 8
BOLT 10X27
0910610017
€ 2.50
9-1
0910610031
ref: 9-1
MODEL J/K
BOLT
€ 3.50
9-2
0711010357
ref: 9-2
MODEL L
BOLT, LH
€ 3.50
10
0916410005
ref: 10
WASHER
0916410005
€ 6.50
11-1
4191117C02
ref: 11-1
MODEL J/K
PLATE,ENGINE MOUNT NO.1
€ 22.00
11-2
4191140C00
ref: 11-2
MODEL L
PLATE,ENGINE MOUNTING
€ 25.00
12
0711008257
ref: 12
BOLT, FRONT LH
0711008257
€ 3.50
12A
0832131087
ref: 12A
WASHER,LOCK
€ 2.00
13
0916008010
ref: 13
WASHER (8.2X20X1.6)
0916008010
€ 1.50
14
4192117C02
ref: 14
PLATE,ENGINE MOUNT NO.2
4192117C02
€ 17.00
15
0711008257
ref: 15
BOLT, FRONT LH
0711008257
€ 3.50
16
0832131087
ref: 16
WASHER,LOCK
€ 2.00
17
0916008010
ref: 17
WASHER (8.2X20X1.6)
0916008010
€ 1.50
18-1
4194017C01
ref: 18-1
MODEL J/K
PLATE,ENGINE MOUNTING NO
€ 16.00
18-2
4194040C01
ref: 18-2
MODEL L
PLATE,ENGINE MOUNT NO.3,R
€ 15.50
19-1
4195017C01
ref: 19-1
MODEL J/K
PLATE,ENGINE MOUNTING NO
€ 13.00
19-2
4195040C01
ref: 19-2
MODEL L
PLATE,ENGINE MOUNTING NO
€ 14.00
20-1
0711008257
ref: 20-1
MODEL J/K
BOLT, FRONT LH
0711008257
€ 3.50
20-2
0910608005
ref: 20-2
MODEL L
BOLT(8X22)
0910608005
€ 2.00
21
0916008010
ref: 21
WASHER (8.2X20X1.6)
0916008010
€ 1.50
22-1
4398017C00
ref: 22-1
MODEL J/K
GRIP COMP,REAR
4398017C00
€ 88.50
22-2
4398017D00
ref: 22-2
MODEL L
GRIP,REAR
€ 95.50
22-3
4398017C10
ref: 22-3
MODEL J E76 MODEL K
GRIP
4398017C10
€ 88.50
22-4
4398017D10
ref: 22-4
MODEL L E39
GRIP COMP,REAR
€ 95.50
23
0151708207
ref: 23
BOLT
€ 3.00
24
4155049200
ref: 24
HOLDER,TOOL
€ 10.00
25-1
0980020025
ref: 25-1
MODEL J/K
TOOL ASSY
€ 59.00
25-2
0980020036
ref: 25-2
MODEL L
TOOL ASSY
€ 45.50
26
0946200072
ref: 26
BAND
0946200072
€ 3.50
27
0916006006
ref: 27
WASHER
0916006006
€ 2.00
28
0831921068
ref: 28
NUT 6MM
0831921068
€ 2.00
