STEERING DAMPER (MODEL L)

GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

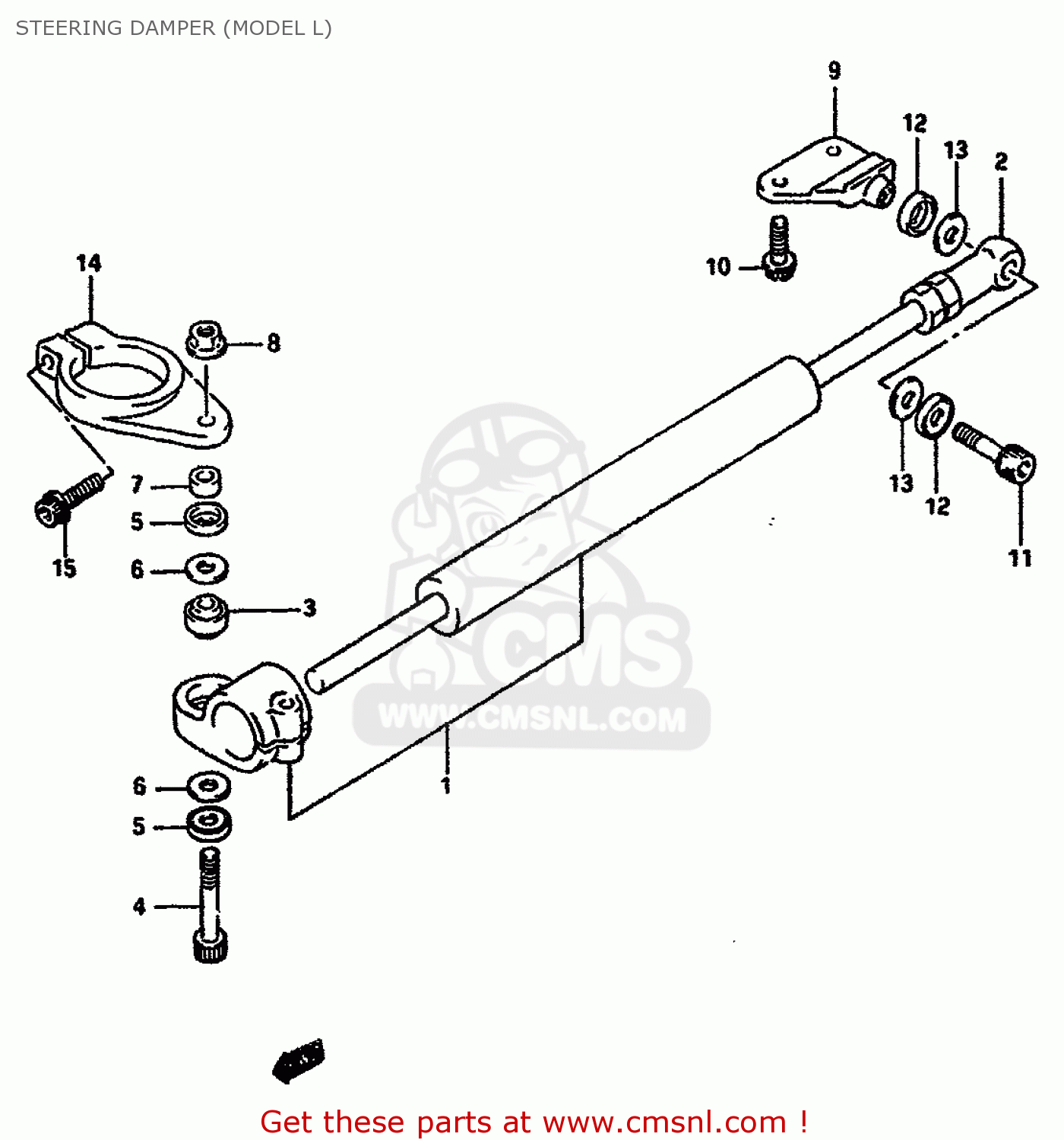

Steering damper (model l) diagram GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

STEERING DAMPER (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

STEERING DAMPER (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

5175040C20
ref: 1

DAMPER ASSEMBLY,STEERING

€ 1,266.00

2

5176040C01
ref: 2

PILLOW BALL,ROD END

€ 111.50

3

0926908003
ref: 3

BEARING(8X17.5X11)

€ 39.50

4

0711008407
ref: 4

BOLT

€ 3.50

5

6433940410
ref: 5

6433940410

6

0822108126
ref: 6

SHIM

€ 3.00

7

0918008130
ref: 7

SPACER (8.4X14X6)

€ 3.50

8

0831931087
ref: 8

NUT

€ 2.50

9

4168017D00
ref: 9

BOSS,STEERING DAMPER

€ 27.00

10

0262806205
ref: 10

BOLT

€ 0.00

11

0711008357
ref: 11

BOLT, FRONT RH

€ 4.50

12

6433940410
ref: 12

6433940410

13

0822108126
ref: 13

SHIM

€ 3.00

14

5178117D00
ref: 14

BRACKET,STEERING DAMPER

€ 116.50

15

0712006358
ref: 15

BOLT

€ 3.50
