MUFFLER (MODEL L)

GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

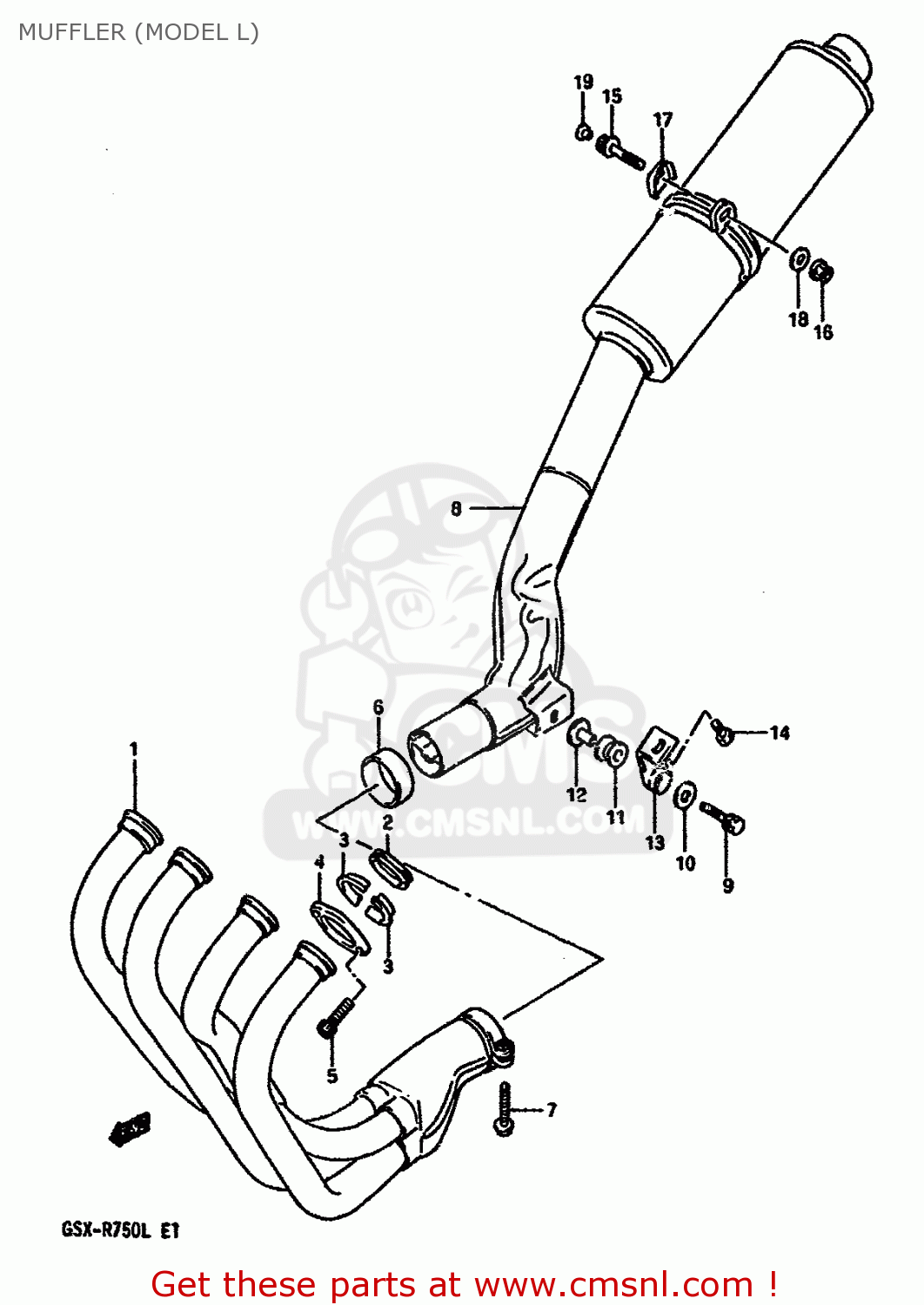

Muffler (model l) diagram GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

MUFFLER (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
MUFFLER (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
MUFFLER (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
1410017D50
ref: 1-1
PIPE,EXHAUST
€ 611.50
1-2
1410017D60
ref: 1-2
E17
EXHAUST ASSY
€ 0.00
2
1418118C00
ref: 2
GASKET,EXHAUST (NAS)
1418118C00
€ 6.50
3
1415527A00
ref: 3
PLATE,EXHAUST PIPE
1415527A00
€ 3.50
4
1418227A00
ref: 4
CLAMP,EXHAUST PIPE
1418227A00
€ 35.50
5
0711008255
ref: 5
BOLT
0711008255
€ 3.50
6
1477107D00
ref: 6
CONNECTOR,MUFFLER
1477107D00
€ 33.50
7
0151708457
ref: 7
BOLT 8X45
€ 4.00
8-1
1430517D00
ref: 8-1
BODY,MUFFLER
€ 933.50
8-2
1430517D10
ref: 8-2
E2,E4,E18,E21,E22,E2
BODY,MUFFLER
€ 933.50
8-3
1430517D20
ref: 8-3
E17
BODY,MUFFLER
€ 843.50
9
0911708026
ref: 9
BOLT 8X35
€ 6.50
10
0916008069
ref: 10
WASHER
€ 3.50
11
0932012038
ref: 11
CUSHION
0932012038
€ 52.00
12
0918008157
ref: 12
SPACER(8.6X12X18.5)
0918008157
€ 5.50
13
1477007D01
ref: 13
DAMPER COMP,MUFFLER SUPPORT F
€ 24.00
14
0910008240
ref: 14
BOLT(8X20)
0910008240
€ 3.50
15
0712010407
ref: 15
BOLT
0712010407
€ 4.50
16
0831616105
ref: 16
NUT
€ 2.00
17
1441217D00
ref: 17
WASHER,MUFFLER SUPPORT
€ 7.00
18
0916010066
ref: 18
WASHER (10.5X24X2.3)
0916010066
€ 2.00
19
0925008012
ref: 19
CAP(OD:12)
0925008012
€ 2.00
14-4
1430618C60
ref: 14-4
E24,E39
MUFFLER,LH
€ 0.00
15
1477017C10
ref: 15
DAMPER,MUFFLER
€ 16.00
16
0110708355
ref: 16
BOLT
€ 3.50
17
0832121084
ref: 17
WASHER,LOCK,8.
0832121084
€ 2.50
18
0916008057
ref: 18
WASHER (8.5X20X1.6)
0916008057
€ 2.00
19
0918008151
ref: 19
SPACER(8.6X12X17.5)
0918008151
€ 6.00
20
0932012026
ref: 20
CUSHION
0932012026
€ 8.00
21
0910310206
ref: 21
BOLT 10X38
€ 6.00
22
0916010066
ref: 22
WASHER (10.5X24X2.3)
0916010066
€ 2.00
23
0831616105
ref: 23
NUT
€ 2.00
24
0910008240
ref: 24
BOLT(8X20)
0910008240
€ 3.50
