STARTER CLUTCH

GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

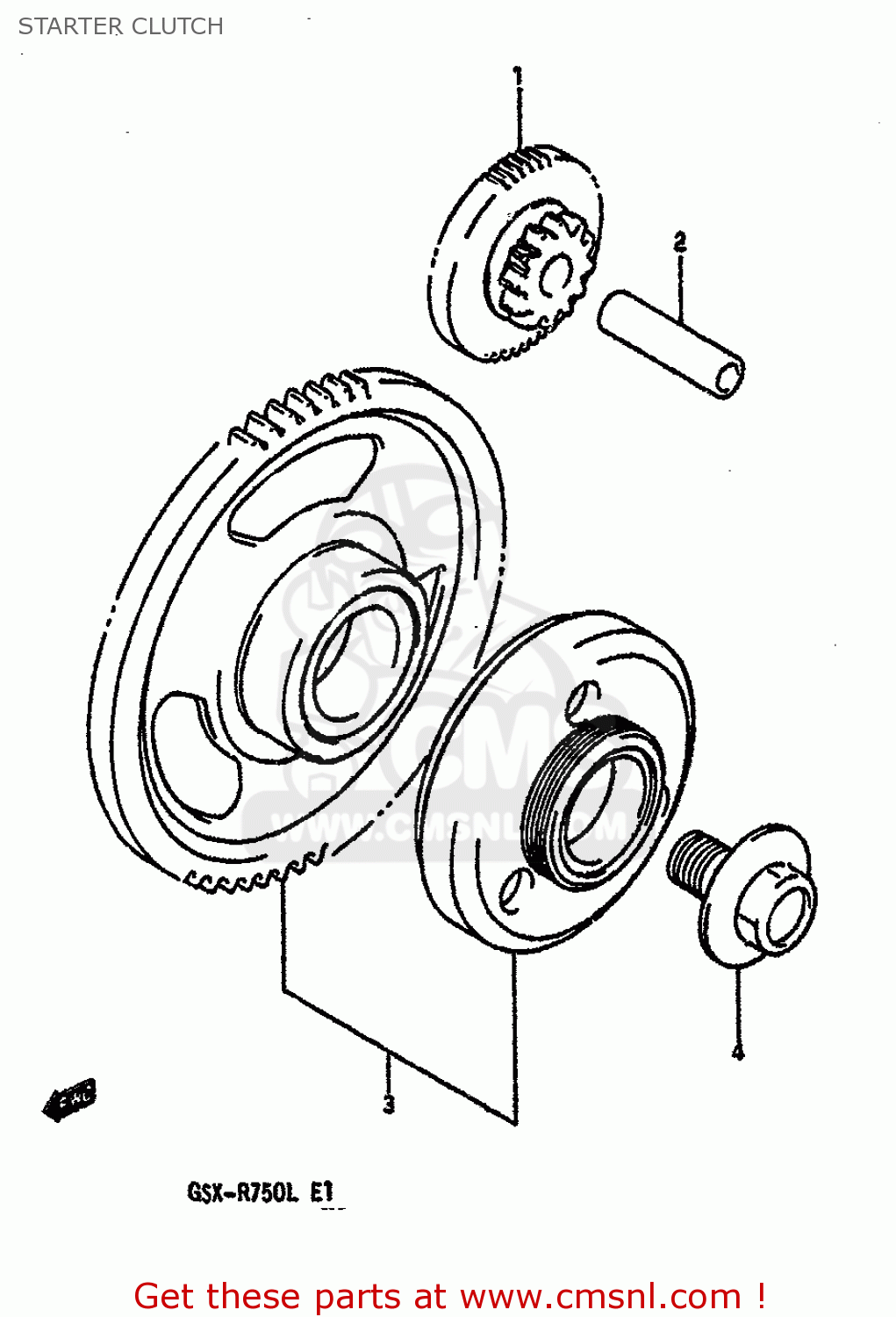

Starter clutch diagram GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

STARTER CLUTCH GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

STARTER CLUTCH GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1

1261127A01
ref: 1

GEAR,STARTER IDLE

€ 52.00

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260017810
ref: 3

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
