HEADLAMP (MODEL L)

GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

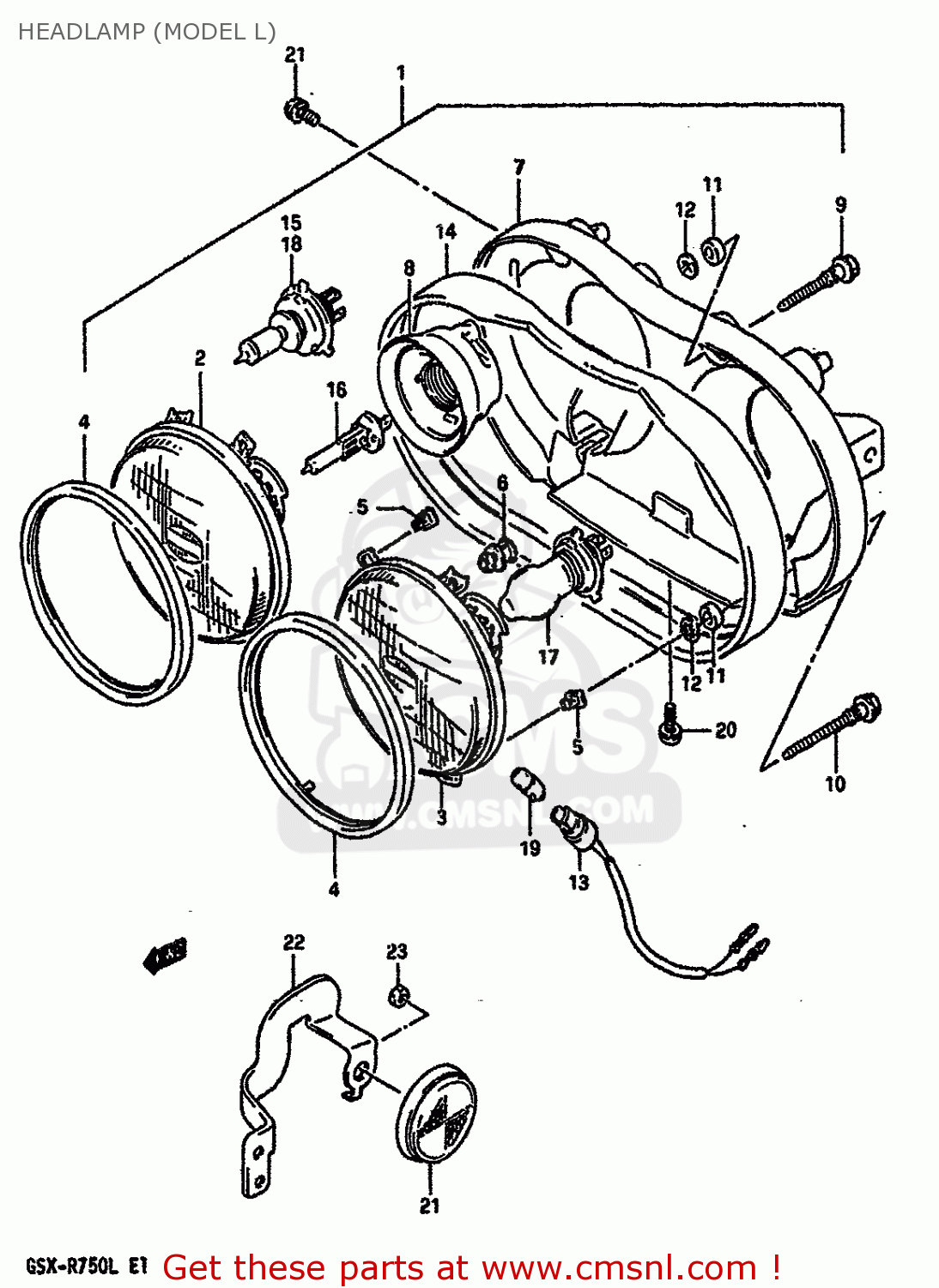

Headlamp (model l) diagram GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

HEADLAMP (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
HEADLAMP (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
HEADLAMP (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3510040C00999
ref: 1-1
HEADLAMP ASSY
€ 323.00
1-2
3510040C40999
ref: 1-2
E4
HEADLAMP ASSY
€ 24.00
1-3
3510040C50999
ref: 1-3
E17,E22,E39,E53
HEADLAMP ASSY
€ 282.00
1-4
3510040C60999
ref: 1-4
E16,E18,E21
HEADLAMP ASSY
€ 357.00
1-5
3510040C70999
ref: 1-5
E25
HEADLAMP ASSY
€ 261.00
1-6
3510040C80999
ref: 1-6
E15
HEADLAMP ASSY
€ 24.00
1-7
3510017C24999
ref: 1-7
E34
HEADLAMP ASSY
€ 0.00
2-1
3512117C00
ref: 2-1
UNIT,HEADLAMP RH
€ 81.50
2-2
3512117C41
ref: 2-2
E4
UNIT,HEADLAMP RH
€ 93.50
2-3
3512117C51
ref: 2-3
E17,E22,E39,E53
UNIT,HEADLAMP RH
€ 93.50
2-4
3512117C60
ref: 2-4
E16,E18,E21
UNIT,HEADLAMP RH
€ 77.00
2-5
3512117C70
ref: 2-5
E25
UNIT,HEADLAMP RH
€ 74.50
2-6
3512117C80
ref: 2-6
E15
UNIT,HEADLAMP RH
€ 93.50
2-7
3512117C20
ref: 2-7
E34
UNIT,HEADLAMP RH
3512117C20
€ 93.50
3-1
3532117C00
ref: 3-1
LAMP UNIT
€ 80.50
3-2
3532117C41
ref: 3-2
E4,E15,E16,E17,E18,E
UNIT,HEADLAMP LH
3532117C41
€ 77.00
3-3
3532117C20
ref: 3-3
E34
UNIT,HEADLAMP LH
3532117C20
€ 52.00
4
3512704A00
ref: 4
RING,RETAINING
3512704A00
€ 15.00
5
3515205C00
ref: 5
NUT,HEADLAMP ADJUSTER
3515205C00
€ 2.50
6
3516204A00
ref: 6
SCREW,SPHERICAL
3516204A00
€ 2.00
7
3524005C02
ref: 7
HOUSING,HEAD LAMP
3524005C02
€ 67.50
8-1
3517320A01
ref: 8-1
COVER,SOCKET
3517320A01
€ 14.50
8-2
3517320A01
ref: 8-2
E4,E17,E22,E25,E39,E
COVER,SOCKET
3517320A01
€ 14.50
8-3
3517306B50
ref: 8-3
E4,E17,E22,E25,E39,E
COVER, SOCKET,LH
3517306B50
€ 10.00
8-4
3517348540
ref: 8-4
E34
COVER, SOCKET
3517348540
€ 16.00
9
3515105C00
ref: 9
SCREW,HEADLAMP ADJUST
3515105C00
€ 4.50
10
3515305C00
ref: 10
SCREW,ADJUSTER
3515305C00
€ 4.50
11
3516705C00
ref: 11
BUSHING
3516705C00
€ 1.50
12
3515732B00
ref: 12
WASHER
3515732B00
€ 1.50
13-1
3611805C00
ref: 13-1
SOCKET & CORD
€ 9.50
13-2
3611804A00
ref: 13-2
E4,E15,E16,E17,E18,E
SOCKET
3611804A00
€ 11.50
14
3524217C13
ref: 14
GASKET,HEADLAMP
€ 40.00
15
0947112060
ref: 15
BULB(12V60/55W,H4)
0947112060
€ 8.00
16
0947112122
ref: 16
E4,E17,E22,E25,E39,E
BULB(12V55W/H1/P14.5S/OSRA,PHI
€ 4.00
17
0947112061
ref: 17
E4
BULB (12V, 60/55W, H4)
€ 0.00
18-1
0947112060
ref: 18-1
E17,E22,E25,E39,E53
BULB(12V60/55W,H4)
0947112060
€ 8.00
18-2
0947112020
ref: 18-2
E34,EXECUTED LOCALLY
BULB(12V35/35W)
0947112020
€ 108.50
19-1
0947112063
ref: 19-1
BULB(12V4W)
0947112063
€ 6.00
19-2
0947112063
ref: 19-2
E16,E18,E21
BULB(12V4W)
0947112063
€ 6.00
19-3
0947112051
ref: 19-3
E34,EXECUTED LOCALLY
BULB (12V,3W)
€ 0.00
20
0211236165
ref: 20
SCREW
€ 2.50
21
3595014A00
ref: 21
E39
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
22-1
3595617D00
ref: 22-1
E39
BRACKET,FR SIDE RR,R
3595617D00
€ 6.50
22-2
3595717D00
ref: 22-2
E39
BRACKET,FR SIDE RR,L
3595717D00
€ 6.50
23
0836115055
ref: 23
E39
NUT
€ 2.50
