CYLINDER (MODEL L)

GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

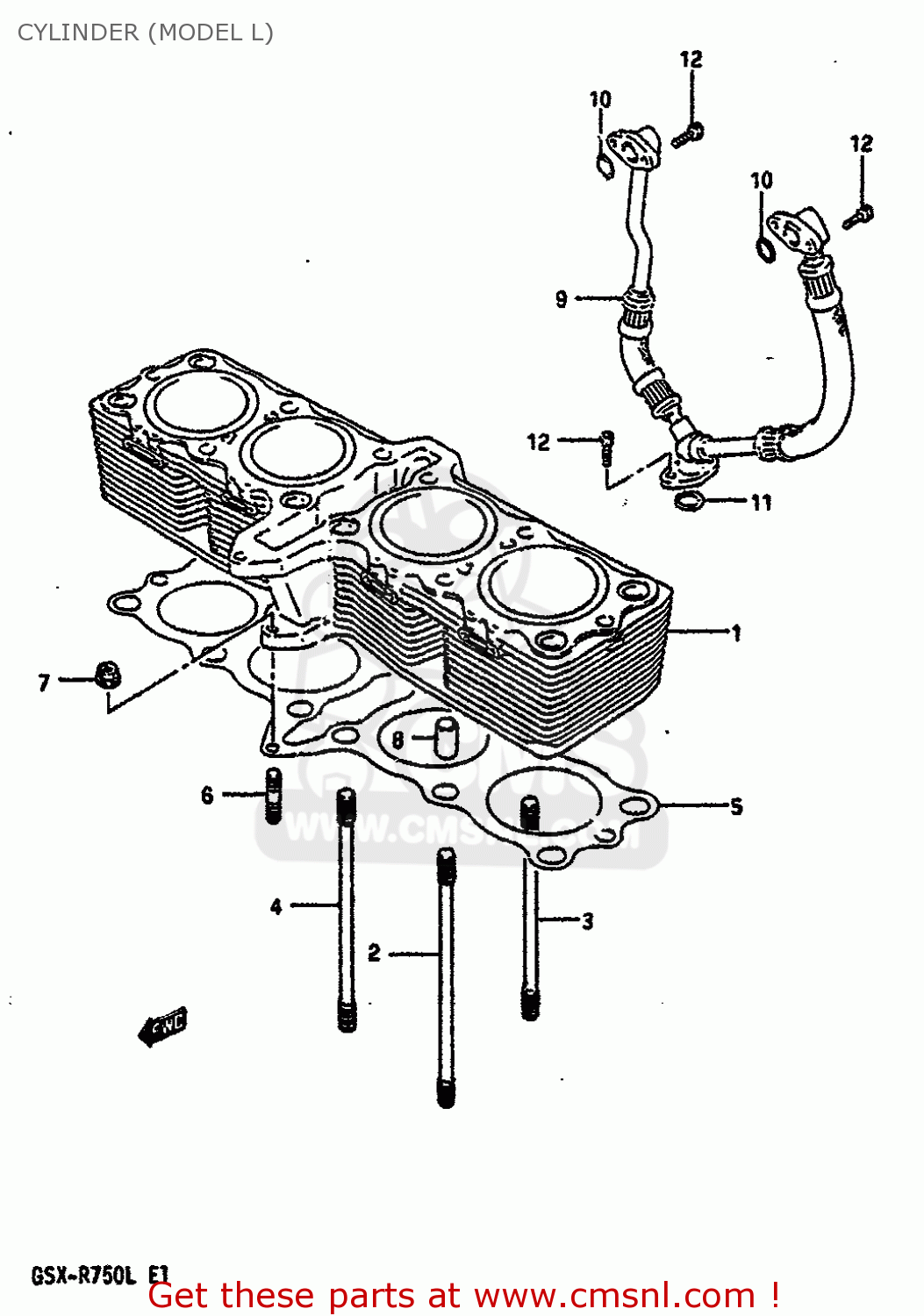

Cylinder (model l) diagram GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

prices are in EUR

ref

part #

description

quantity

1-1

1121007D00
ref: 1-1

CYLINDER

€ 791.00

1-2

1121017D10
ref: 1-2
E18

CYLINDER COMP

€ 544.00

0910810109
ref: 2

STUD BOLT (L:150)

€ 11.00

0910810073
ref: 3

BOLT,STUD

€ 9.50

0910810110
ref: 4

STUD

€ 15.50

1124127A02
ref: 5

GASKET,CYLINDER (NAS)

€ 20.00

0142106205
ref: 6

STUD BOLT L:20

€ 2.50

0831616064
ref: 7

NUT 6MM

€ 2.50

0920613006
ref: 8

PIN

€ 9.00

1132827A02
ref: 9

HOSE

€ 241.00

0928014011
ref: 10

O RING(D:2.5,ID:13.8)

€ 3.50

0928015007
ref: 11

O RING(D:2.4,ID:15.8)

€ 2.00

0711006165
ref: 12

BOLT

€ 3.00
