FRONT DAMPER (MODEL L)

GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

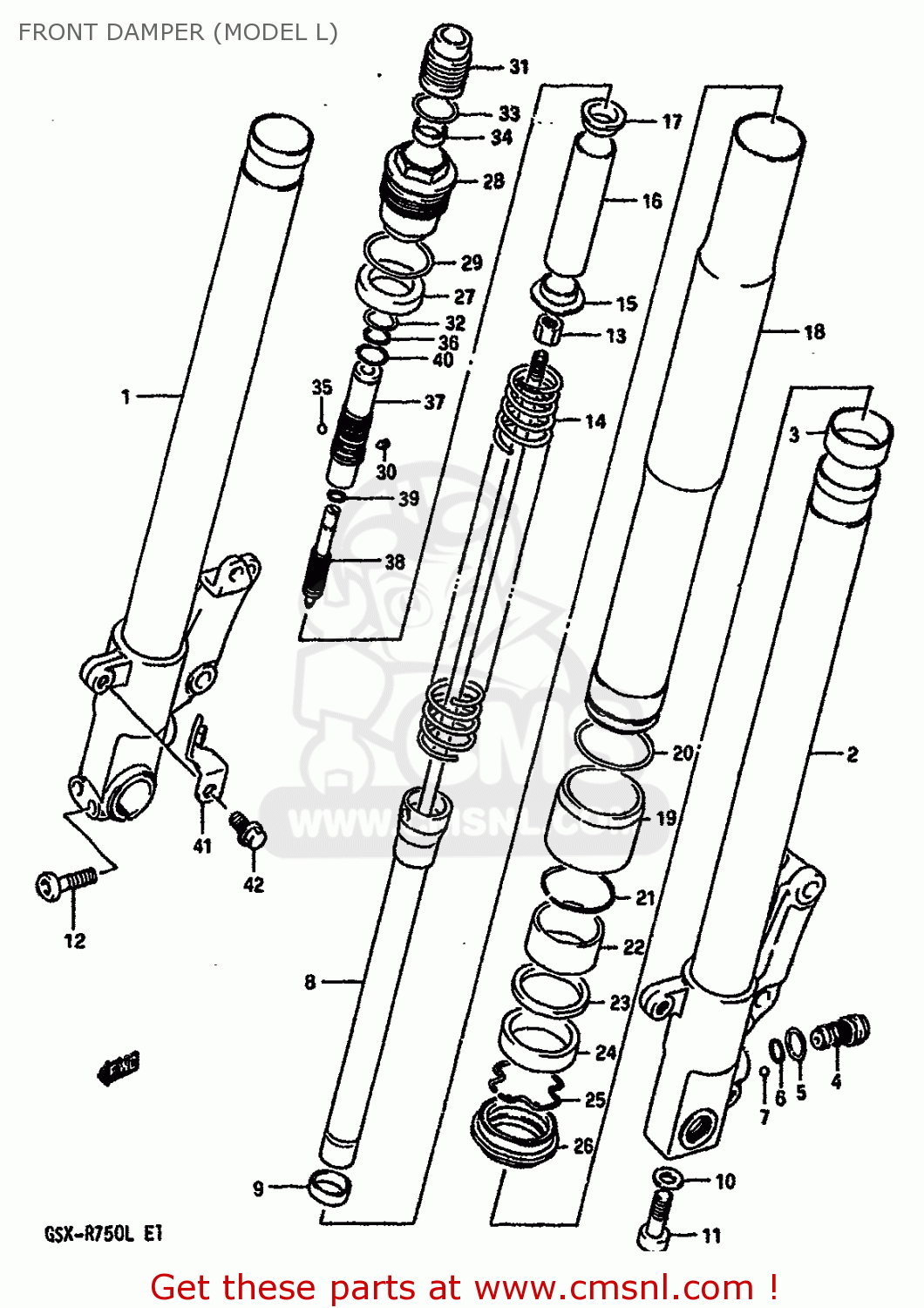

Front damper (model l) diagram GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

FRONT DAMPER (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
FRONT DAMPER (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
FRONT DAMPER (MODEL L) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
0
5110317D00
ref: 0
DAMPER ASSY,RH
€ 1,443.00
0
5110417D00
ref: 0
DAMPER ASSY,LH
€ 1,443.00
1
5111017D00
ref: 1
TUBE,INNER,R
5111017D00
€ 477.00
2
5112017D00
ref: 2
TUBE,INNER,L
5112017D00
€ 517.00
3
5112148B31
ref: 3
BUSH,SLIDE
5112148B31
€ 15.50
4
5183007D00
ref: 4
PIECE,ADJUSTER
5183007D00
€ 71.00
5
5183417C00
ref: 5
O RING
€ 3.50
6
5183517C00
ref: 6
BALL
5183517C00
€ 3.00
7
5183617C00
ref: 7
EXPANDER
5183617C00
€ 3.50
8
5211017D00
ref: 8
DAMPER,FRONT
€ 239.00
9
5181517D00
ref: 9
PLATE,CENTERING
5181517D00
€ 9.50
10
0916110009
ref: 10
WASHER(10X15X1.5)
0916110009
€ 2.00
11
5114717C00
ref: 11
BOLT
5114717C00
€ 21.00
12
5116617C00
ref: 12
BOLT
€ 3.50
13
5182717C00
ref: 13
NUT
5182717C00
€ 10.50
14
5117117D00
ref: 14
SPRING,MAIN
5117117D00
€ 66.00
15
5117517D00
ref: 15
GUIDE,SPRING
€ 15.50
16
5117617D00
ref: 16
SPACER,SPRING
€ 10.00
17
5119217D00
ref: 17
JOINT,SPRING
€ 6.50
18
5113117D00
ref: 18
TUBE,OUTER
5113117D00
€ 397.50
19
5113517D00
ref: 19
CASE,OIL SEAL
5113517D00
€ 64.50
20
5111708D00
ref: 20
O RING
5111708D00
€ 6.50
21
5115608D00
ref: 21
RING,SNAP
5115608D00
€ 4.00
22
5115248B31
ref: 22
BUSH,GUIDE
5115248B31
€ 20.00
23
5116838B00
ref: 23
SPACER,SEAL
5116838B00
€ 5.00
24
5115308D00
ref: 24
SEAL,OIL
5115308D00
€ 15.50
25
5155638B00
ref: 25
CIRCLIP,FORK OIL SEAL
5155638B00
€ 4.50
26
5117308D00
ref: 26
DUST SEAL,FRONT FORK
€ 19.50
27
5119317D00
ref: 27
RUBBER,SEAT
5119317D00
€ 13.00
28
5118917D00
ref: 28
BOLT, FORK
€ 79.00
29
5118708D00
ref: 29
O RING,FORK BOLT
5118708D00
€ 6.00
30
5183317D00
ref: 30
SCREW
€ 4.50
31
5182817D00
ref: 31
ADJUSTER,SPRING
5182817D00
€ 42.50
32
5183417C00
ref: 32
O RING
€ 3.50
33
5119917D00
ref: 33
O RING
5119917D00
€ 6.00
34
5182317D00
ref: 34
PLATE, SPRING ADJUSTER
€ 33.50
35
5183517C00
ref: 35
BALL
5183517C00
€ 3.00
36
5183617C00
ref: 36
EXPANDER
5183617C00
€ 3.50
37
5182917D00
ref: 37
CASE,ADJUSTER
€ 67.00
38
5182117D00
ref: 38
PIECE,ADJUSTER UPR
5182117D00
€ 29.50
39
5182417C00
ref: 39
O RING
€ 2.00
40
5183717D00
ref: 40
RING,STOPPER
5183717D00
€ 6.00
41-1
5159017D10
ref: 41-1
PLATE,FRONT FENDER,LEFT
5159017D10
€ 10.00
41-2
5158017D10
ref: 41-2
PLATE,FRONT FENDER,RIGHT
5158017D10
€ 11.50
42
0151708128
ref: 42
BOLT 8X12
0151708128
€ 3.50
