COWLING (MODEL K 7JJ)

GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

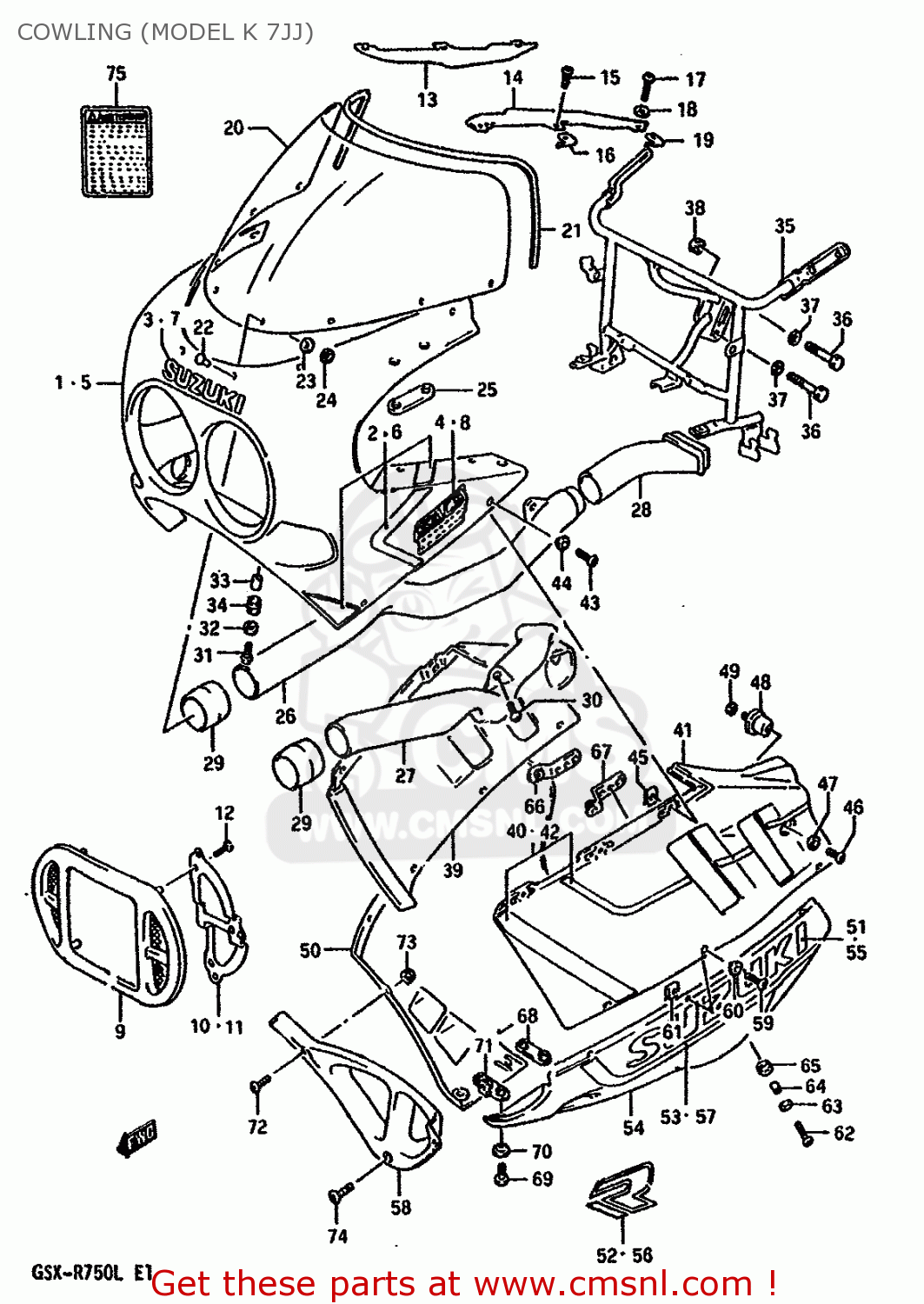

Cowling (model k 7jj) diagram GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

COWLING (MODEL K 7JJ) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
COWLING (MODEL K 7JJ) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
COWLING (MODEL K 7JJ) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
9440018C107JJ
ref: 1-1
CLEAR COATING
BODY ASSY,COWLING (WHITE/RED)
€ 907.00
1-2
9440018C117JJ
ref: 1-2
NO CLEAR COATING
BODY ASSY,COWLING (WHITE/RED)
€ 907.00
2
6818017C307JT
ref: 2
TAPE SET,COWLING,UPPER
€ 41.00
3
6827104A0022R
ref: 3
EMBLEM,COWLING,UPPER (W)
6827104A0022R
€ 12.00
4
6868127B107JJ
ref: 4
EMBLEM
6868127B107JJ
€ 8.50
5-1
9440018C407JJ
ref: 5-1
E18,CLEAR COATING
BODY ASSY,COWLING (WHITE/RED)
€ 504.00
5-2
9440018C417JJ
ref: 5-2
E18,NO CLEAR COATING
BODY ASSY,COWLING (WHITE/RED)
€ 504.00
6
6818017C307JT
ref: 6
E18
TAPE SET,COWLING,UPPER
€ 41.00
7
6827104A0022R
ref: 7
E18
EMBLEM,COWLING,UPPER (W)
6827104A0022R
€ 12.00
8
6868127B107JJ
ref: 8
E18
EMBLEM
6868127B107JJ
€ 8.50
9-1
9446017C0022P
ref: 9-1
E18,CLEAR COATING
COVER,FRONT (RED)
9446017C0022P
€ 94.00
9-2
9446017C0122P
ref: 9-2
E18,NO CLEAR COATING
COVER,FRONT (RED)
€ 94.00
10
9469117C00
ref: 10
E18
PLATE,COVER RH
9469117C00
€ 13.00
11
9469217C00
ref: 11
E18
PLATE,COVER LH
9469217C00
€ 13.00
12
0354104106
ref: 12
E18
TAPPING SCREW 4X10/A
0354104106
€ 1.50
13
9443217C00
ref: 13
PANEL,COWLING UPPER,RIGHT
9443217C00
€ 12.00
14
9444217C01
ref: 14
COVER,COWLING,LEFT
€ 12.00
15
0913905033
ref: 15
SCREW(5X10)
0913905033
€ 2.00
16
0914805023
ref: 16
NUT
0914805023
€ 1.50
17
0913905025
ref: 17
SCREW(5X14)
0913905025
€ 2.00
18
0916105010
ref: 18
WASHER(5.2X11X1)
0916105010
€ 2.00
19
0914805023
ref: 19
NUT
0914805023
€ 1.50
20-1
9461117C00
ref: 20-1
WINDSCREEN
€ 280.50
20-2
9460017830
ref: 20-2
OPT
CLEAR WINDSCREEN,SMALL
€ 289.50
21-1
9463117C00
ref: 21-1
MOLDING,WINDSCREEN
9463117C00
€ 16.00
21-2
9463117C10
ref: 21-2
E17
MOLDING
€ 0.00
22
9461617C00
ref: 22
PIN,WINDSCREEN
9461617C00
€ 2.50
23
0932004007
ref: 23
CUSHION
0932004007
€ 3.00
24
0914804010
ref: 24
NUT
0914804010
€ 2.00
25
9457612C00
ref: 25
CUSHION,RR VIEW MIRRORR
9457612C00
€ 4.50
26
9445117C00
ref: 26
PIPE,AIR INTAKE,FRONT
9445117C00
€ 31.50
27
9445217C00
ref: 27
PIPE,AIR INTAKE,FRONT
€ 30.00
28
9445317C00
ref: 28
PIPE,AIR INTAKE RR,R
9445317C00
€ 23.50
29
9445417C00
ref: 29
JOINT,AIR INTAKE
€ 9.50
30
0214206207
ref: 30
SCREW
0214206207
€ 2.00
31
0913906056
ref: 31
SCREW(6X20)
0913906056
€ 3.00
32
0916006056
ref: 32
WASHER(6.5X18X1)
0916006056
€ 2.00
33
0918006152
ref: 33
SPACER
0918006152
€ 3.00
34
0932009016
ref: 34
CUSHION
0932009016
€ 2.50
35
9451017C13
ref: 35
BRACE,COWLING
€ 184.00
36
0110708355
ref: 36
BOLT
€ 3.50
37
0832121084
ref: 37
WASHER,LOCK,8.
0832121084
€ 2.50
38
0831012085
ref: 38
NUT ,8MM
0831012085
€ 1.50
39-1
9443017C407JJ
ref: 39-1
CLEAR COATING
COVER,COWLING SIDE,RIGHT
9443017C407JJ
€ 208.50
39-2
9443017C417JJ
ref: 39-2
NO CLEAR COATING
COVER,COWLING SIDE,RIGHT
9443017C417JJ
€ 208.50
40
6868017C00019
ref: 40
TAPE SET,COWLING SIDE
€ 25.00
41-1
9444017C407JJ
ref: 41-1
CLEAR COATING
COVER,COWLING SIDE,LEFT
9444017C407JJ
€ 406.00
41-2
9444017C417JJ
ref: 41-2
NO CLEAR COATING
COVER,COWLING SIDE,LEFT
€ 406.00
42
6869017C00019
ref: 42
TAPE SET,COWLING SIDE
6869017C00019
€ 25.00
43
0913905032
ref: 43
SCREW(5X18)
0913905032
€ 2.50
44
0916105017
ref: 44
WASHER(5.2X14X1.5)
0916105017
€ 3.00
45
9448432B00
ref: 45
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
46
0913906027
ref: 46
SCREW(6X12)
0913906027
€ 3.00
47
0916106021
ref: 47
WASHER(6.3X16X1.5)
0916106021
€ 2.50
48
9457004A00
ref: 48
CUSHION,COWLING
9457004A00
€ 12.50
49
0832121064
ref: 49
WASHER,LOCK
0832121064
€ 2.00
50-1
9447018C107JJ
ref: 50-1
CLEAR COATING
COWLING,UNDER,RIGHT
€ 441.50
50-2
9447018C117JJ
ref: 50-2
NO CLEAR COATING
COWLING,UNDER,RIGHT
€ 441.50
51
6811100A5022P
ref: 51
EMBLEM,COWLING SIDE (RED)
€ 19.50
52
6819106B007JT
ref: 52
EMBLEM,COWLING,UNDER
6819106B007JT
€ 15.00
53
6819517C00019
ref: 53
TAPE,COWLING,UNDER,RIGHT
€ 22.50
54-1
9448018C107JJ
ref: 54-1
CLEAR COATING
COWLING,UNDER,LEFT
€ 529.50
54-2
9448018C117JJ
ref: 54-2
NO CLEAR COATING
COWLING,UNDER,LEFT
€ 529.50
55
681113320022P
ref: 55
EMBLEM,COWLING,UNDER (R)
€ 10.50
56
6819106B007JT
ref: 56
EMBLEM,COWLING,UNDER
6819106B007JT
€ 15.00
57
6827517C00019
ref: 57
TAPE,COWLING,UNDER,LEFT
6827517C00019
€ 22.50
58-1
9449817C0022P
ref: 58-1
CLEAR COATING
COWLING,UNDER,CENTER
9449817C0022P
€ 80.50
58-2
9449817C01
ref: 58-2
NO CLEAR COATING
COWLING,UNDER,CENTER
€ 80.50
59
0913905032
ref: 59
SCREW(5X18)
0913905032
€ 2.50
60
0916105017
ref: 60
WASHER(5.2X14X1.5)
0916105017
€ 3.00
61
9448432B00
ref: 61
NUT,HEADLAMP HOUSING,UPPER
9448432B00
€ 4.00
62
0913906028
ref: 62
SCREW(6X20)
0913906028
€ 3.50
63
0916006056
ref: 63
WASHER(6.5X18X1)
0916006056
€ 2.00
64
0918006152
ref: 64
SPACER
0918006152
€ 3.00
65
0932009016
ref: 65
CUSHION
0932009016
€ 2.50
66
9458017C01
ref: 66
BRACKET
€ 6.00
67
9459017C01
ref: 67
BRACE,COWLING UNDER,LH
€ 7.00
68
9449306B00
ref: 68
BRACE,COWLING LWR COVER RR
9449306B00
€ 4.00
69
0913906039
ref: 69
SCREW(6X16)
0913906039
€ 2.50
70
0916106021
ref: 70
WASHER(6.3X16X1.5)
0916106021
€ 2.50
71
9449006B00
ref: 71
BRACE,COWLING LWR COVER
9449006B00
€ 4.50
72
0913905025
ref: 72
SCREW(5X14)
0913905025
€ 2.00
73
0831626055
ref: 73
NUT
0831626055
€ 2.00
74
0913906030
ref: 74
SCREW(6X16)
0913906030
€ 3.50
75-1
6861248B10
ref: 75-1
E4
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
75-2
6861248B00
ref: 75-2
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
