HEADLAMP (MODEL J/K)

GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

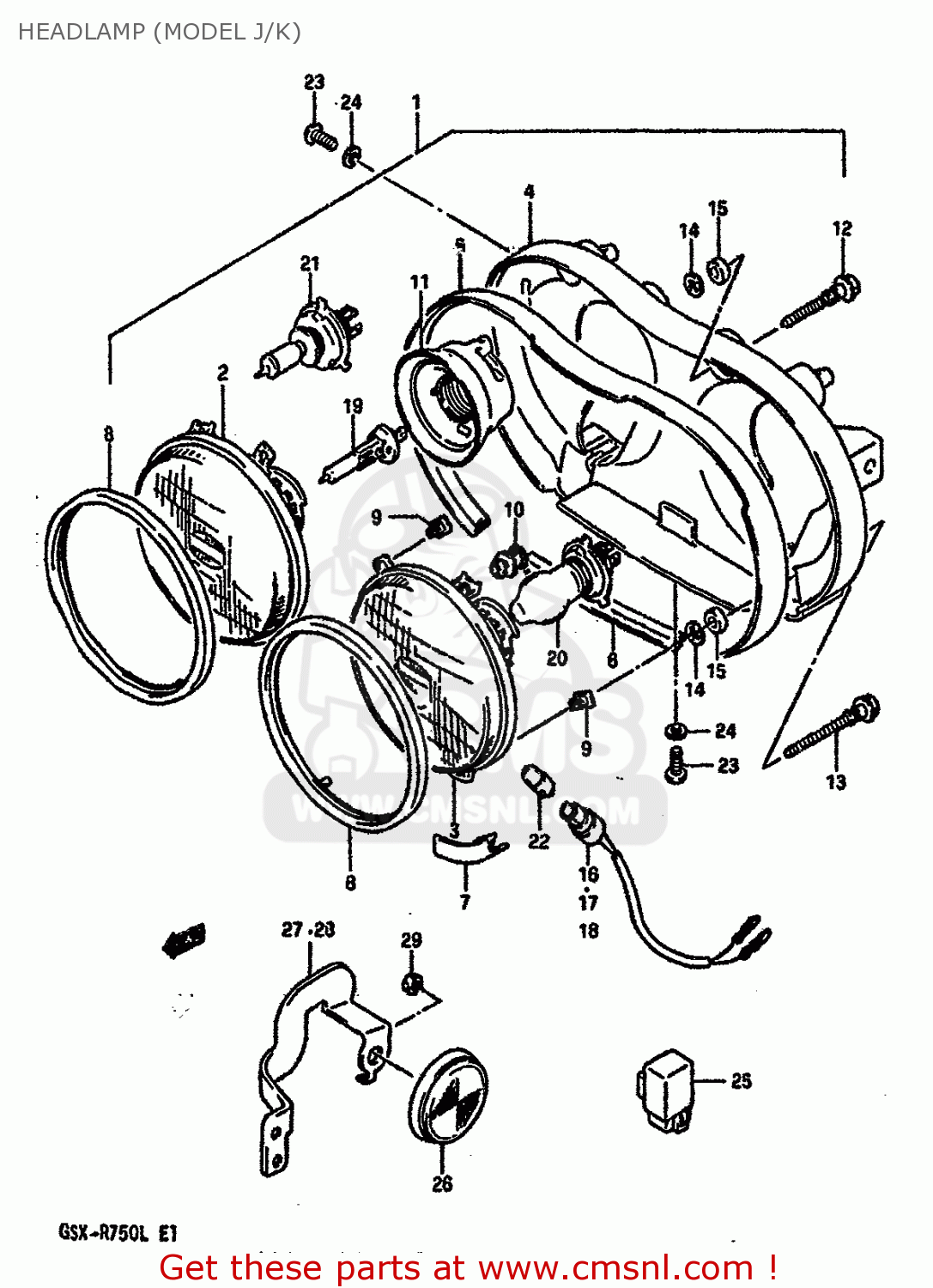

Headlamp (model j/k) diagram GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)

HEADLAMP (MODEL J/K) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
HEADLAMP (MODEL J/K) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
HEADLAMP (MODEL J/K) GSXR750 1989 (K) (E01 E02 E15 E16 E17 E18 E21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
3510017C40999
ref: 1-1
MODEL J E4
HEADLAMP ASSY
€ 24.00
1-2
3510017C41999
ref: 1-2
MODEL K E4
HEADLAMP ASSY
€ 24.00
1-3
3510017C80999
ref: 1-3
MODEL J E15
HEADLAMP ASSY
€ 24.00
1-4
3510017C81999
ref: 1-4
MODEL K E15
HEADLAMP ASSY
€ 24.00
1-5
3510017C70999
ref: 1-5
MODEL J E25
HEADLAMP ASSY
€ 261.00
1-6
3510017C71999
ref: 1-6
MODEL K E25
HEADLAMP ASSY
€ 261.00
1-7
3510017C20999
ref: 1-7
MODEL J E34
HEADLAMP ASSY
€ 272.00
1-8
3510017C21999
ref: 1-8
MODEL K E34
HEADLAMP ASSY
€ 272.00
1-9
3510017C00999
ref: 1-9
E75
HEADLAMP ASSY
€ 323.00
1-10
3510017C01999
ref: 1-10
E1
HEADLAMP ASSY
€ 323.00
1-11
3510017C50999
ref: 1-11
E76
HEADLAMP ASSY
€ 282.00
1-12
3510017C51999
ref: 1-12
E17, E22, E39, E53
HEADLAMP ASSY
€ 282.00
1-13
3510017C60999
ref: 1-13
E79
HEADLAMP ASSY
€ 357.00
1-14
3510017C61999
ref: 1-14
E16, E21
HEADLAMP ASSY
€ 357.00
2-1
3512117C40
ref: 2-1
E4
UNIT,HEADLAMP
€ 93.50
2-2
3512117C80
ref: 2-2
E15
UNIT,HEADLAMP RH
€ 93.50
2-3
3512117C70
ref: 2-3
E25
UNIT,HEADLAMP RH
€ 74.50
2-4
3512117C20
ref: 2-4
E34
UNIT,HEADLAMP RH
3512117C20
€ 93.50
2-5
3512117C00
ref: 2-5
E1, E75
UNIT,HEADLAMP RH
€ 81.50
2-6
3512117C50
ref: 2-6
E17, E22, E39, E53,E
UNIT,HEADLAMP RH
€ 93.50
2-7
3512117C60
ref: 2-7
E16,E21,E79
UNIT,HEADLAMP RH
€ 77.00
3-1
3532117C40
ref: 3-1
E4, E15,E16,E17,E21,
UNIT,HEADLAMP LH
€ 77.00
3-2
3532117C20
ref: 3-2
E34
UNIT,HEADLAMP LH
3532117C20
€ 52.00
3-3
3532117C00
ref: 3-3
E1,E75
LAMP UNIT
€ 80.50
4
3524005C02
ref: 4
HOUSING,HEAD LAMP
3524005C02
€ 67.50
5
3524217C41
ref: 5
L:854-616
GASKET,HEADLAMP (NAS)
3524217C41
€ 25.50
6
3524217C40
ref: 6
L:854-170
GASKET,HEADLAMP (NAS)
€ 25.50
7
3524217C30
ref: 7
CUSHION
3524217C30
€ 8.50
8
3512704C00
ref: 8
RING, RETAINING
€ 0.00
9
3515205C00
ref: 9
NUT,HEADLAMP ADJUSTER
3515205C00
€ 2.50
10
3516204A00
ref: 10
SCREW,SPHERICAL
3516204A00
€ 2.00
11-1
3517320A01
ref: 11-1
E4,E17,E22,E25,E39,E
COVER,SOCKET
3517320A01
€ 14.50
11-2
3517306B90
ref: 11-2
E4,E17,E22,E25,E39,E
COVER,SOCKET,LH
€ 0.00
11-3
3517320A01
ref: 11-3
E1,E15,E16,E21,E75,E
COVER,SOCKET
3517320A01
€ 14.50
11-4
3517348540
ref: 11-4
E34
COVER, SOCKET
3517348540
€ 16.00
12
3515105C00
ref: 12
SCREW,HEADLAMP ADJUST
3515105C00
€ 4.50
13
3515305C00
ref: 13
SCREW,ADJUSTER
3515305C00
€ 4.50
14
3515732B00
ref: 14
WASHER
3515732B00
€ 1.50
15
3516705C00
ref: 15
BUSHING
3516705C00
€ 1.50
16
3611804A00
ref: 16
E4,E15,E16,E17,E21,E
SOCKET
3611804A00
€ 11.50
17
3611833670
ref: 17
E34
SOCKET & CORD
3611833670
€ 11.50
18
3611805C00
ref: 18
E1,E75
SOCKET & CORD
€ 9.50
19
0947112122
ref: 19
E4,E17,E22,E25,E39,E
BULB(12V55W/H1/P14.5S/OSRA,PHI
€ 4.00
20
0947112061
ref: 20
E4
BULB (12V, 60/55W, H4)
€ 0.00
21-1
0947112060
ref: 21-1
E17,E22,E25,E39,E53,
BULB(12V60/55W,H4)
0947112060
€ 8.00
21-2
0947112060
ref: 21-2
E1,E15,E16,E21,E75,E
BULB(12V60/55W,H4)
0947112060
€ 8.00
21-3
0947112020
ref: 21-3
E34,EXECUTED LOCALLY
BULB(12V35/35W)
0947112020
€ 108.50
22-1
0947112063
ref: 22-1
BULB(12V4W)
0947112063
€ 6.00
22-2
0947112063
ref: 22-2
E16,E21,E75,E79
BULB(12V4W)
0947112063
€ 6.00
22-3
0947112051
ref: 22-3
E34,EXECUTED LOCALLY
BULB (12V,3W)
€ 0.00
23
0211206164
ref: 23
SCREW
€ 2.00
24
0832121064
ref: 24
WASHER,LOCK
0832121064
€ 2.00
25-1
3864017C00
ref: 25-1
RELAY ASSY,HEADLAMP
3864017C00
€ 37.50
25-2
3864017C00
ref: 25-2
E1,E75,E79
RELAY ASSY,HEADLAMP
3864017C00
€ 37.50
26
3595014A00
ref: 26
E39,E76
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
27-1
3595617C00
ref: 27-1
E76
BRACKET,REFLECTOR
3595617C00
€ 14.50
27-2
3595617C01
ref: 27-2
E39
BRACKET,FRONT SIDE,REAR,RIGHT
3595617C01
€ 14.50
28-1
3595717C00
ref: 28-1
E76
BRACKET
€ 17.50
28-2
3595717C01
ref: 28-2
E39
BRACKET,FRONT SIDE,REAR,LEFT
3595717C01
€ 17.50
29
0836115055
ref: 29
E39,E76
NUT
€ 2.50
