AIR CLEANER

GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

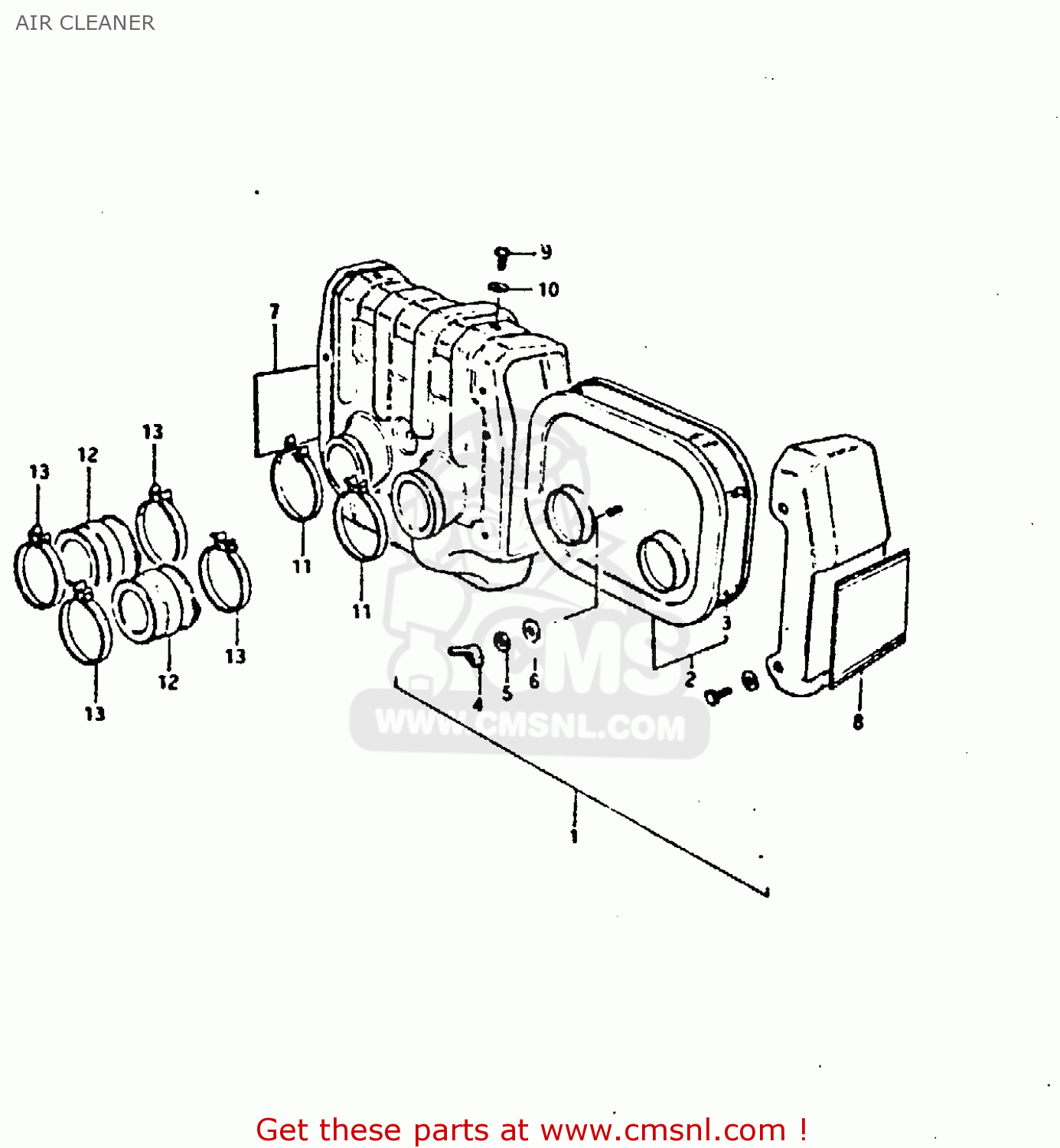

Air cleaner diagram GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

AIR CLEANER GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

AIR CLEANER GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

prices are in EUR

ref

part #

description

quantity

1-1

1370011300
ref: 1-1
TO 13700-11310

CLEANER ASSY, AIR

€ 248.50

1-2

1370011310
ref: 1-2

CLEANER ASSY,AIR

€ 248.50

2

1378011300
ref: 2

FILTER ASSY

€ 58.00

3

1378111300
ref: 3

FILTER

€ 26.50

4

0914406003
ref: 4

NUT

€ 2.00

5

0832121068
ref: 5

LOCK WASHER

€ 2.50

6

0832221068
ref: 6

WASHER

€ 2.00

7

1399111380
ref: 7

TAPE, RH

€ 0.00

8

1399211380
ref: 8

TAPE, LH

€ 0.00

9

0211206108
ref: 9

SCREW

€ 1.50

10

0832221068
ref: 10

WASHER

€ 2.00

11

0940252306
ref: 11

CLAMP

€ 6.00

12-1

1311111300
ref: 12-1

PIPE,INTAKE

€ 156.00

12-2

NOTUSED
ref: 12-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

13

0940248306
ref: 13

CLAMP

€ 4.50
