CRANKCASE COVER

GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

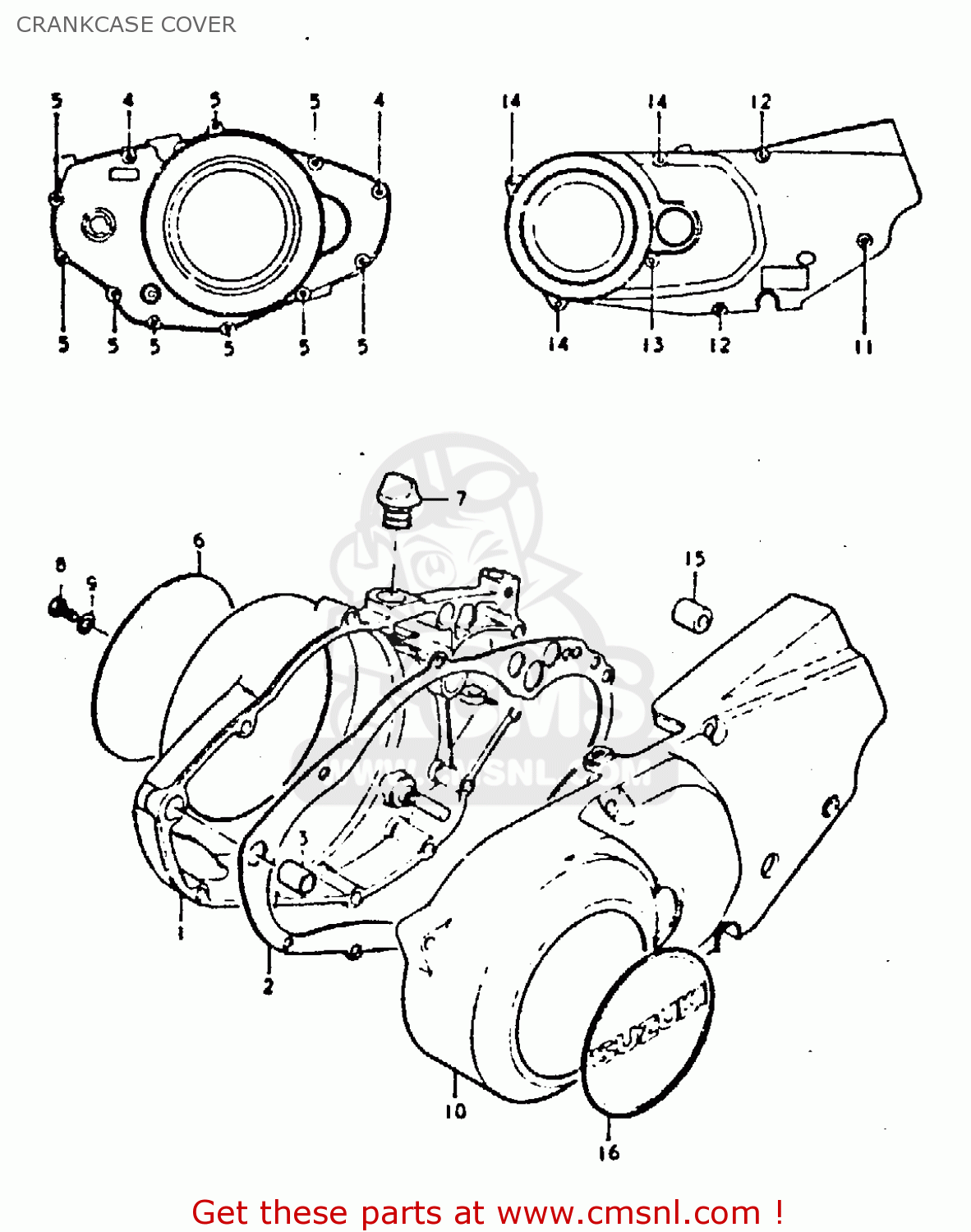

Crankcase cover diagram GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

CRANKCASE COVER GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

CRANKCASE COVER GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

prices are in EUR

ref

part #

description

quantity

1

1134111300
ref: 1

COVER, CLUTCH

€ 131.00

2

1148211300
ref: 2

GASKET, CLUTCH COVER (MCA)

€ 17.50

3

0920613001
ref: 3

PIN

€ 2.50

4

0211206508
ref: 4

SCREW

€ 2.50

5

0211206358
ref: 5

SCREW (6X35)

€ 2.50

6

6823311300
ref: 6

EMBLEM,CLUTCH COVER

€ 27.00

7

0925919001
ref: 7

PLUG

€ 6.00

8

0912806004
ref: 8

SCREW(6X10)

€ 1.50

9

0916806001
ref: 9

GASKET(6.2X11X1) (NAS)

€ 1.50

10

1135111300
ref: 10

COVER, MAGNETO

€ 122.50

11

0211206557
ref: 11

SCREW

€ 2.50

12

0211206508
ref: 12

SCREW

€ 2.50

13

0211206408
ref: 13

SCREW

€ 2.00

14

0211206308
ref: 14

SCREW 6X30

€ 2.50

15

0932004004
ref: 15

CUSHION (4.5*8.5*14)

€ 14.00

16

6823336200
ref: 16

EMBLEM,COVER

€ 15.50
