OIL TANK

GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

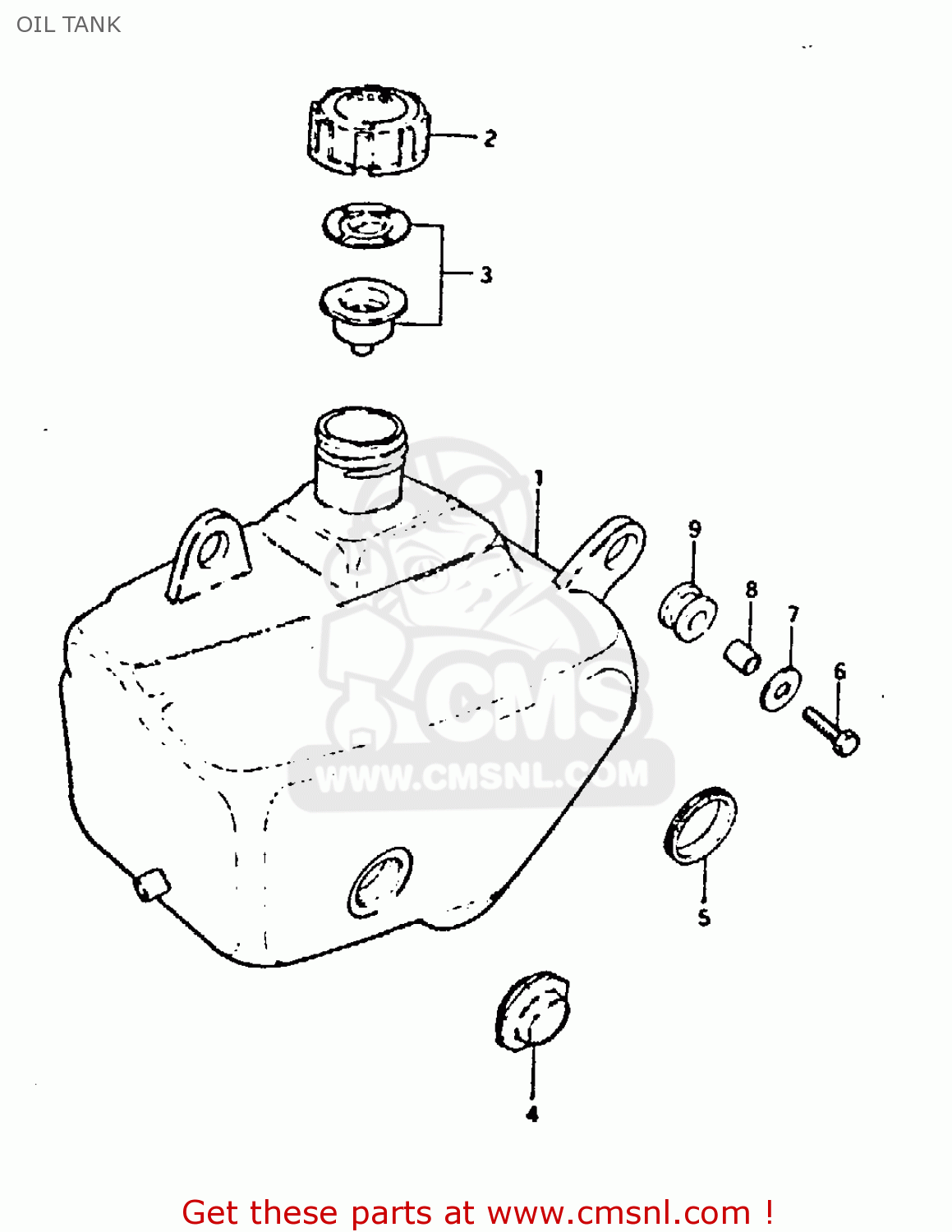

Oil tank diagram GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

OIL TANK GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

OIL TANK GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

prices are in EUR

ref

part #

description

quantity

1

4461111300
ref: 1

TANK, OIL

€ 0.00

2

4465105003
ref: 2

CAP,OIL TANK

€ 4.00

3

4460030832
ref: 3

GASKET SET (NAS)

€ 6.00

4

4460046810
ref: 4

LENS SET,OIL LEVEL

€ 6.50

5

4464911300
ref: 5

RUBBER

€ 3.50

6

0110706208
ref: 6

BOLT

€ 2.00

7

0916006007
ref: 7

WASHER

€ 2.00

8

0918006030
ref: 8

SPACER (6.8X10X10)

€ 2.00

9

0932010008
ref: 9

CUSHION

€ 2.50
