CRANKCASE

GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

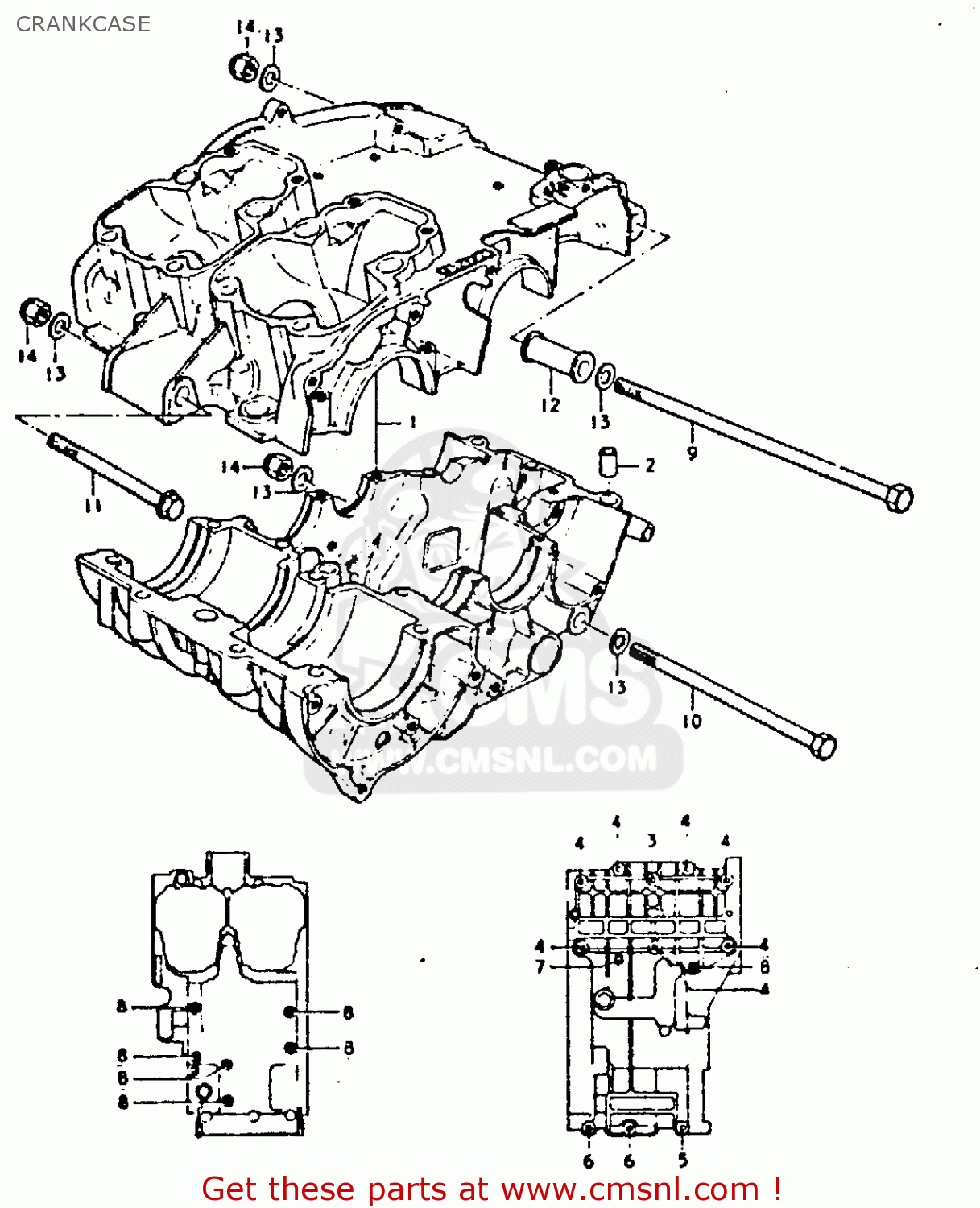

Crankcase diagram GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

prices are in EUR

ref

part #

description

quantity

1-1

1130011850
ref: 1-1

CRANKCASE SET TO 11300-11301 USED WITH 1

€ 1.50

1-2

1130011301
ref: 1-2
E.NO. GT2502-111085~

CRANKCASE SET

€ 1.50

0920613001
ref: 2

PIN

€ 2.50

0151708908
ref: 3

BOLT 8X90

€ 3.50

0151708758
ref: 4

BOLT 8X75

€ 3.50

0151708558
ref: 5

BOLT 8X55

€ 3.00

0151708408
ref: 6

BOLT (8X40)

€ 3.50

0151706708
ref: 7

BOLT (6X70)

€ 3.00

0151706608
ref: 8

BOLT (6X60)

€ 2.50

0910010034
ref: 9

BOLT 10X215

€ 6.50

10-1

0910010026
ref: 10-1
MODEL N

BOLT

€ 8.00

10-2

0910010064
ref: 10-2
MODEL X

BOLT

€ 8.00

0151710808
ref: 11

BOLT

€ 3.50

1161045000
ref: 12

SPACER,ENGINE MOUNT

€ 12.00

0832211108
ref: 13

WASHER

€ 2.50

0915910018
ref: 14

NUT

€ 2.00
