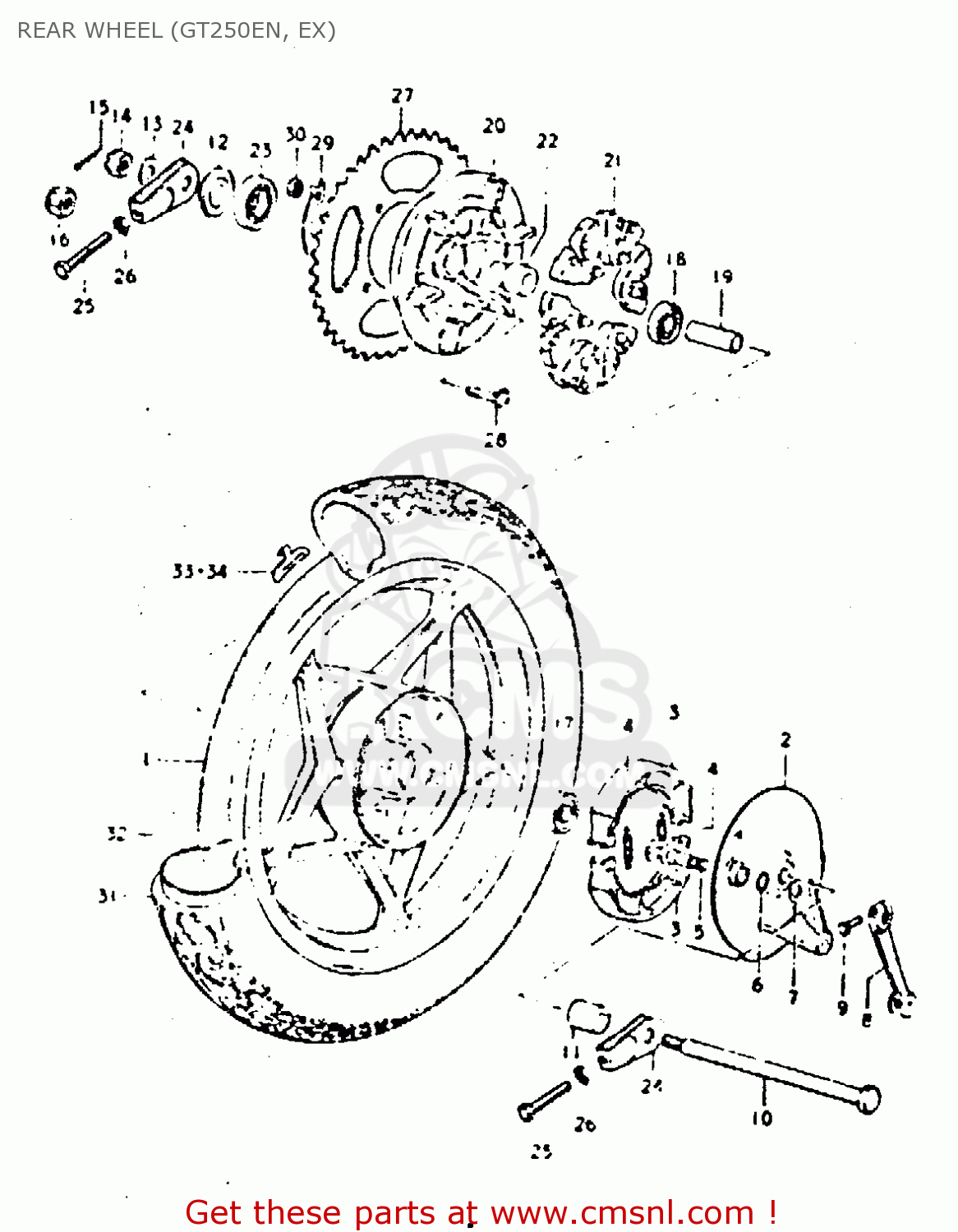

REAR WHEEL (GT250EN, EX)

ref

part #

description

quantity

1

6415011300
ref: 1

WHEEL, REAR

€ 0.00

2

6421011310
ref: 2

PANEL,REAR HUB

€ 0.00

3

6441011301
ref: 3

SHOE,BRAKE

€ 29.50

4

5542030000
ref: 4

SPRING,BRAKE SHOE

€ 3.50

5

5444008003
ref: 5

CAM,FRONT BRAKE

€ 19.00

6

0928015001
ref: 6

O-RING,BOSS

€ 2.00

7

0916015001
ref: 7

WASHER (15X24X1.6)

€ 2.50

8

6445144001
ref: 8

LEVER,RR BRAKE CAM

€ 111.00

9

0110706258
ref: 9

BOLT

€ 2.00

10

6471111300
ref: 10

AXLE, REAR

€ 39.50

11

0918015046
ref: 11

SPACER

€ 4.50

12

6475011300
ref: 12

SPACER, LH

€ 8.50

13

0832211148
ref: 13

WASHER

€ 2.00

14

0914114001
ref: 14

NUT

€ 4.50

15

0411130308
ref: 15

COTTER PIN

€ 1.50

16

NOTUSED
ref: 16

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

17

0814363027
ref: 17

BEARING, RH

€ 12.00

18

0814362027
ref: 18

BEARING

€ 12.50

19

0918015045
ref: 19

SPACER(15.3X21.7X58)

€ 8.50

20

6461111300
ref: 20

DRUM,REAR SPROCKET MOUNT

€ 113.00

21

6465111300
ref: 21

ABSORBER,RR HUB SHOCK

€ 12.50

22

6473339100
ref: 22

RETAINER,RR SPROCKET MTG

€ 17.00

23

0812362047
ref: 23

BEARING

€ 17.00

24

6141030003
ref: 24

ADJUSTER,CHAIN,R

€ 18.50

25

0910408006
ref: 25

BOLT

€ 3.00

26

0831012088
ref: 26

NUT

€ 2.00

27-1

6451111310
ref: 27-1

SPROCKET,RR

€ 66.00

27-2

NOTUSED
ref: 27-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

28

0910508001
ref: 28

BOLT(8X33.5)

€ 2.50

29

0916908021
ref: 29

WASHER,LOCK

€ 6.50

30

0914008005
ref: 30

NUT (8MM)

€ 1.50

31-1

6510011310
ref: 31-1

TIRE

€ 51.50

31-2

NOTUSED
ref: 31-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

32-1

6520018010
ref: 32-1

TUBE ASSEMBLY,WHEEL,INNER

€ 35.00

32-2

NOTUSED
ref: 32-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

33

5541147001
ref: 33

BALANCER,WHEEL

€ 4.00

34

5541247001
ref: 34

BALANCER,WHEEL

€ 3.50
