BATTERY

GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

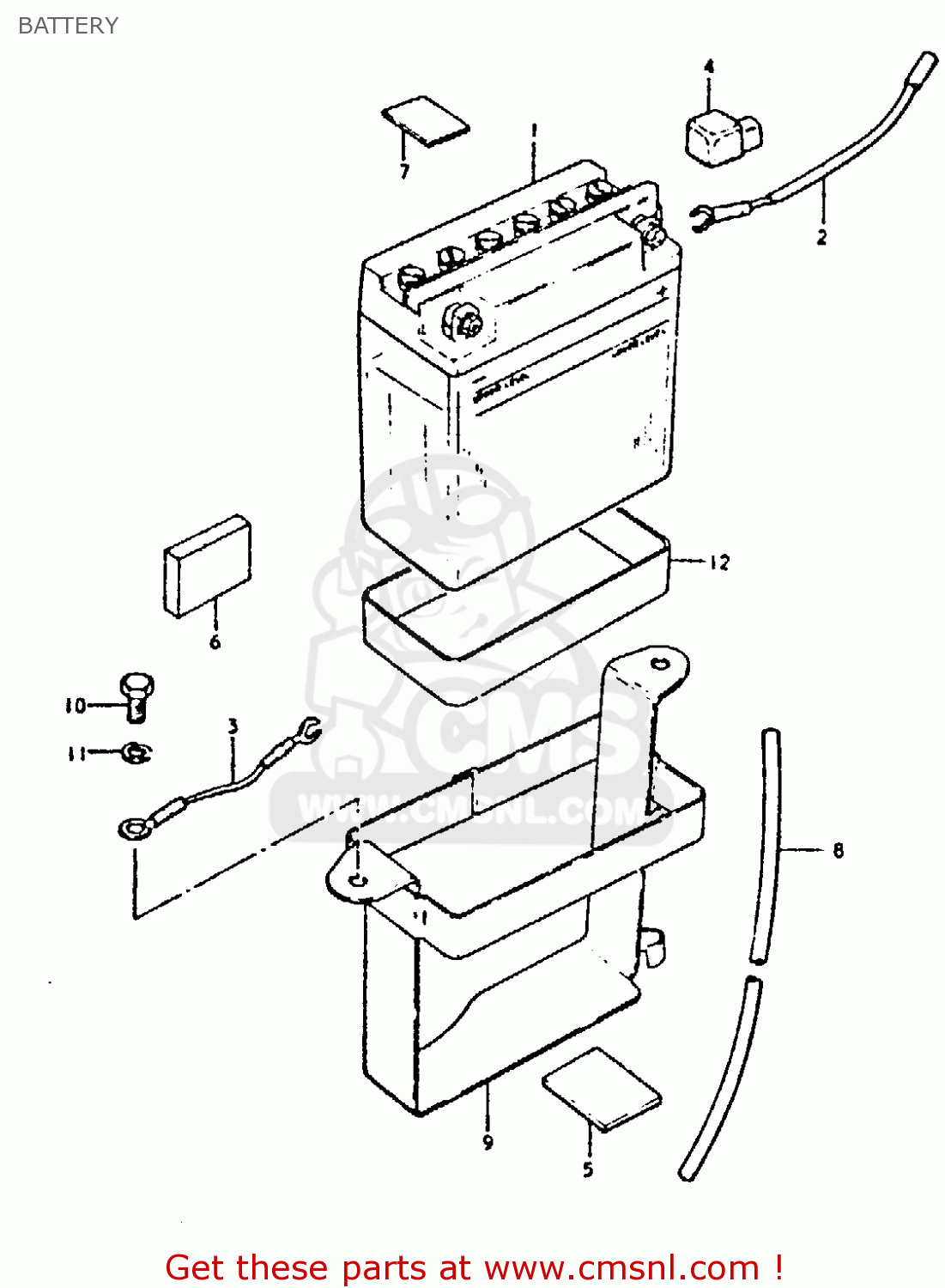

Battery diagram GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

BATTERY GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

BATTERY GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

prices are in EUR

ref

part #

description

quantity

1

3361018010
ref: 1

BATTERY ASSEMBLY (12V)

€ 62.00

2

3686111300
ref: 2

LEAD WIRE, BATTERY (+)

€ 16.50

3

3685111310
ref: 3

LEAD WIRE, (-)

€ 6.00

4

3362411300
ref: 4
MODEL N

CAP,BATTERY PLUS TERMINAL

€ 3.00

5

3365137000
ref: 5

PROTECTOR(170X95X3.0)

€ 5.00

6

3365137000
ref: 6

PROTECTOR(170X95X3.0)

€ 5.00

7

3365211300
ref: 7

PROTECTOR, NO. 3 (40*30*2)

€ 0.00

8

3368031003
ref: 8

HOSE,BATTERY EXHAUST

€ 4.50

9

4154011300
ref: 9

HOLDER, BATTERY

€ 29.50

10

0110706128
ref: 10

BOLT

€ 2.00

11

0832121068
ref: 11

LOCK WASHER

€ 2.50

12

3365111300
ref: 12

BAND

€ 0.00
