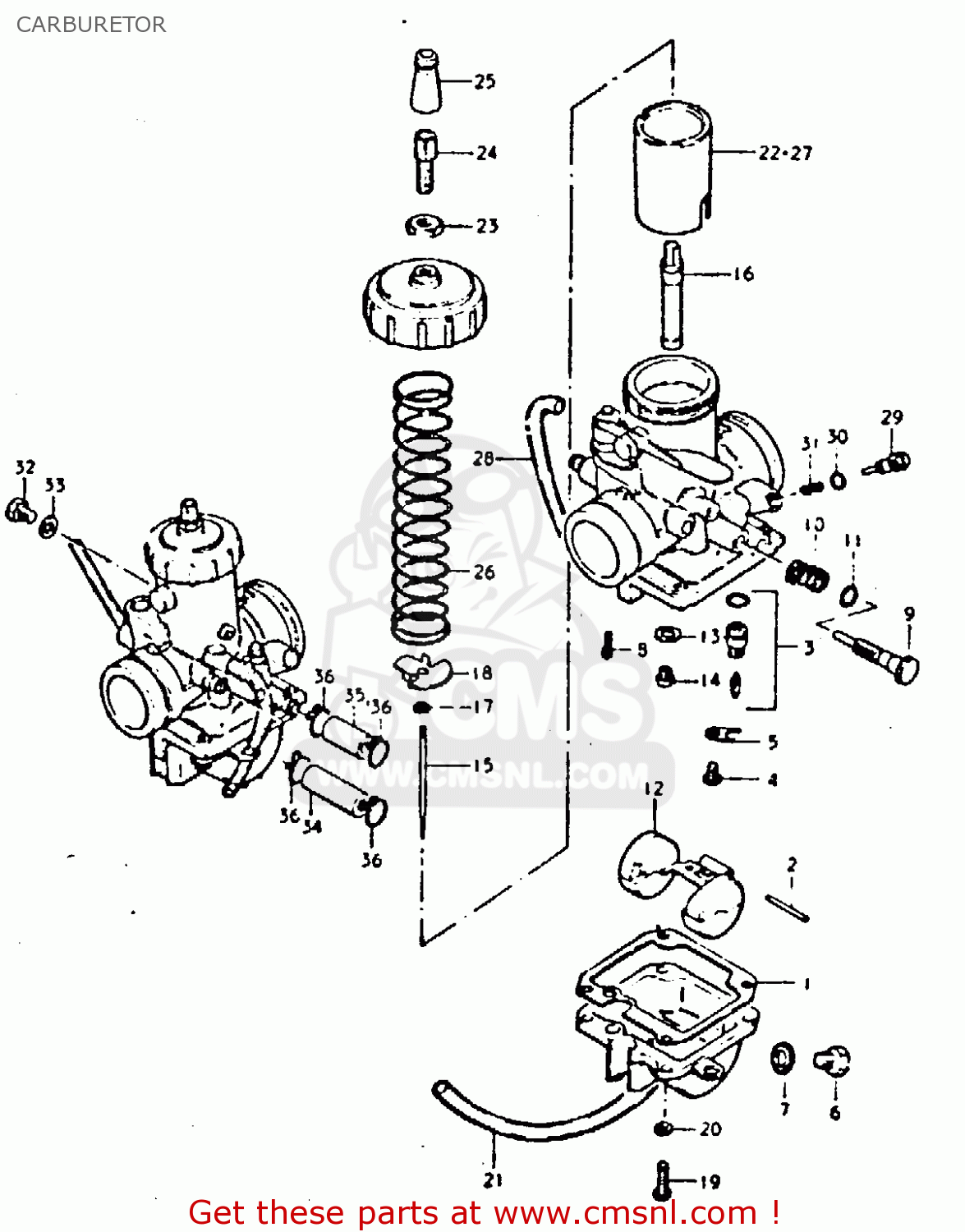

CARBURETOR

ref

part #

description

quantity

0

NOTUSED
ref: 0

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0

1320111300
ref: 0
E2, E4, E16, E17, E1

CARBURETOR ASSY, RH

€ 85.50

0

NOTUSED
ref: 0

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0

1320111301
ref: 0
F.NO. GT2502-102486~

CARBURETOR ASSY, RH

€ 85.50

0

NOTUSED
ref: 0

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0

1320211300
ref: 0
E2, E4, E16, E17, E1

CARBURETOR ASSY, LH

€ 0.00

0

NOTUSED
ref: 0

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

0

1320211301
ref: 0
F.NO. GT2502-102486~

CARBURETOR ASSY, LH

€ 0.00

1

1325130520
ref: 1

GASKET,FLOAT CAHMBER (NAS)

€ 9.50

2

1325401010
ref: 2

PIN,FLOAT

€ 3.00

3-1

1337029500
ref: 3-1
TO 13370-11301 USED

VALVE ASSEMBLY,NEEDLE

€ 54.50

3-2

1337011301
ref: 3-2
F.NO. GT2502-102486~

VALVE ASSY,NEEDLE

€ 54.50

3-3

1337036600
ref: 3-3
OPT

VALVE ASSY, NEEDLE

€ 43.00

4

0211204088
ref: 4

SCREW

€ 1.50

5

1337339110
ref: 5

PLATE

€ 6.50

6

1324705010
ref: 6

PLUG

€ 6.00

7

1324905010
ref: 7

GASKET,DRAIN,PLUG (NAS)

€ 1.50

8

0949225003
ref: 8

JET

€ 6.50

9

1326746010
ref: 9

ADJUSTER

€ 10.00

10

1326846010
ref: 10

SPRING

€ 3.50

11

1327802340
ref: 11
FROM 13294-30010

O RING

€ 1.50

12-1

1325228310
ref: 12-1

FLOAT

€ 20.50

12-2

1325211301
ref: 12-2
F.NO. GT2502-102486~

FLOAT

€ 20.50

13

1338203110
ref: 13

WASHER

€ 2.50

14-1

NOTUSED
ref: 14-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

14-2

0949187001
ref: 14-2
E2, E4, E16, E17, E1

JET

€ 6.50

14-3

NOTUSED
ref: 14-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

15

1338311300
ref: 15

NEEDLE,JET

€ 17.00

16

0949400236
ref: 16

JET, NEEDLE (0-1)

€ 11.50

17

1339410010
ref: 17

CLIP

€ 4.50

18

1358129500
ref: 18

PLATE,THROTTLE VALVE

€ 4.50

19

0211204168
ref: 19

SCREW

€ 1.00

20

0832121048
ref: 20

LOCK WASHER

€ 2.00

21

1368430650
ref: 21

HOSE

€ 7.50

22

1355111300
ref: 22

VALVE, THROTTLE LH (CA:2.0)

€ 0.00

23

1366116600
ref: 23

NUT

€ 5.00

24

1357748110
ref: 24
FROM 13577-03010

ADJUSTER,CABLE

€ 8.00

25

1368116601
ref: 25

CAP

€ 7.00

26

1357330900
ref: 26
FROM 13573-97010

SPRING,THROTTLE VALVE

€ 6.00

27

1356111310
ref: 27

VALVE, THROTTLE RH (CA:2.0)

€ 0.00

28

1368616600
ref: 28

HOSE

€ 5.50

29

1326915011
ref: 29

SCREW,PILOT AIR ADJUSTING

€ 12.50

30

1329533010
ref: 30

O RING

€ 4.50

31

1326835010
ref: 31

SPRING

€ 3.00

32

1366418654
ref: 32

BOLT

€ 10.50

33

1366331010
ref: 33

GASKET,THRO VALVE INSPECTION (NAS)

€ 3.50

34

1368311300
ref: 34
5.3*10.5*35.5

HOSE, STARTER

€ 8.00

35

1368311320
ref: 35
5.3*10.5*25

HOSE, FUEL

€ 8.00

36

1367111300
ref: 36

CLIP

€ 4.50
