BRAKE HOSE (MODEL N)

GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

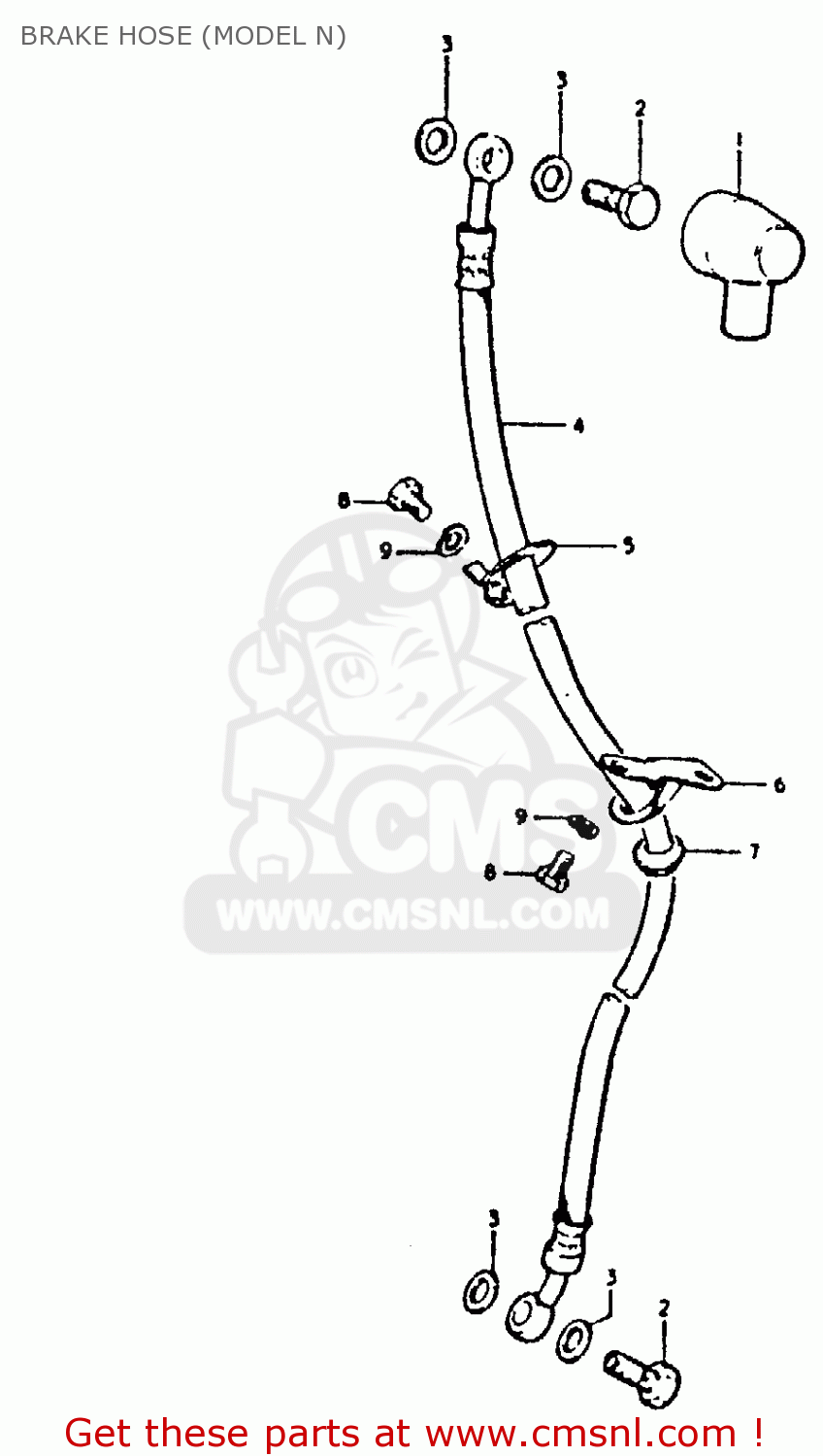

Brake hose (model n) diagram GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

prices are in EUR

ref

part #

description

quantity

1-1

5971133600
ref: 1-1

BOOT

€ 4.50

1-2

5971118400
ref: 1-2
E2, E4, E16, E17, E1

BOOT,MASTER CYLINDER

€ 8.50

0936010003
ref: 2

BOLT UNION

€ 6.50

0916110005
ref: 3

WASHER

€ 2.00

4-1

5948011303
ref: 4-1

HOSE, BRAKE (NEUTRAL)

€ 50.50

4-2

5948011312
ref: 4-2
E2, E4, E16, E17, E1

HOSE, BRAKE (FLAT)

€ 0.00

5924311301
ref: 5

GUIDE, HOSE NO.1

€ 0.00

5126636200
ref: 6

GUIDE,BRAKE HOSE

€ 6.50

5924436200
ref: 7

GROMMET,BRAKE HOSE GUIDE

€ 4.00

0110706108
ref: 8

BOLT

€ 2.00

0832121068
ref: 9

LOCK WASHER

€ 2.50
