Buy Suzuki GT Parts Online


SEAT (MODEL X)

GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

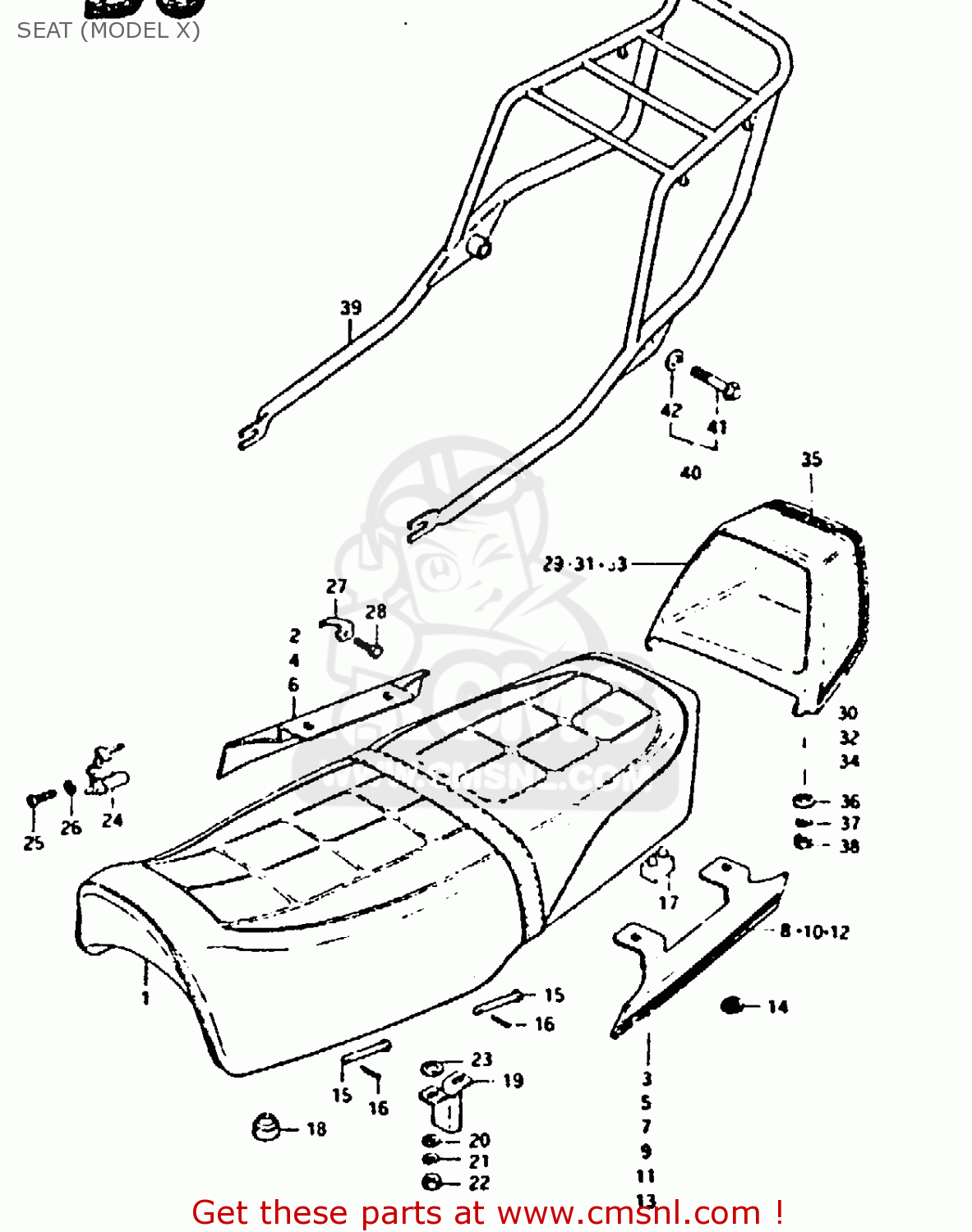

Seat (model x) diagram GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

SEAT (MODEL X) GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
SEAT (MODEL X) GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
SEAT (MODEL X) GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
prices are in EUR
ref
part #
description
quantity
1
4510011303865
ref: 1
SEAT (BLACK)
€ 255.00
2
451911130005K
ref: 2
MOULDING, RH (BLUE)
€ 16.00
3
681971132076U
ref: 3
TAPE, RH
€ 0.00
4
4519111300019
ref: 4
MOULDING, RH (BLACK)
€ 16.00
5
681971132076S
ref: 5
TAPE, RH
€ 0.00
6
451911130007P
ref: 6
MOULDING, RH (RED)
€ 16.00
7
681971132076T
ref: 7
TAPE, RH
€ 0.00
8
451921130005K
ref: 8
MOULDING, LH (BLUE)
€ 16.00
9
681981132076U
ref: 9
TAPE, LH
€ 0.00
10
4519211300019
ref: 10
MOULDING, LH (BLACK)
€ 16.00
11
681981132076S
ref: 11
TAPE, LH
€ 0.00
12
451921130007P
ref: 12
MOULDING, LH (RED)
€ 16.00
13
681981132076T
ref: 13
TAPE, LH
€ 0.00
14
0914806005
ref: 14
NUT
0914806005
€ 1.50
15
0920006018
ref: 15
PIN
0920006018
€ 2.00
16
0411120158
ref: 16
PIN
0411120158
€ 1.50
17
0932108006
ref: 17
CUSHION
0932108006
€ 3.00
18
0932110001
ref: 18
CUSHION
0932110001
€ 2.50
19
4521345000
ref: 19
STRIKER,SEAT LOCK
4521345000
€ 7.50
20
0832221068
ref: 20
WASHER
0832221068
€ 2.00
21
0832121068
ref: 21
LOCK WASHER
0832121068
€ 2.50
22
0831921068
ref: 22
NUT 6MM
0831921068
€ 2.00
23
0916006028
ref: 23
WASHER(6.5X18X1)
0916006028
€ 1.50
24
9570045813
ref: 24
LOCK ASSY,SEAT
9570045813
€ 59.50
25
0211205128
ref: 25
SCREW
€ 2.50
26
0832121058
ref: 26
LOCK WASHER
0832121058
€ 2.00
27
9572245000
ref: 27
SPRING,HELMET HOLDER
9572245000
€ 8.50
28
0110405088
ref: 28
BOLT 5X16
€ 2.00
29
455101130005K
ref: 29
COVER, SEAT TAIL (BLUE)
€ 65.00
30
681601132076U
ref: 30
TAPE SET
€ 0.00
31
4551011300019
ref: 31
COVER, SEAT TAIL (BLACK)
€ 65.00
32
681601132076S
ref: 32
TAPE SET
€ 0.00
33
455101130007P
ref: 33
COVER, SEAT TAIL (WHITE)
€ 65.00
34
681601132076T
ref: 34
TAPE SET
€ 0.00
35
6816649200538
ref: 35
EMBLEM,SEAT TAIL COVER
6816649200538
€ 5.00
36
0916906016
ref: 36
WASHER
0916906016
€ 1.50
37
0832121068
ref: 37
LOCK WASHER
0832121068
€ 2.50
38
0831921068
ref: 38
NUT 6MM
0831921068
€ 2.00
39-1
4631011300
ref: 39-1
OPT
CARRIER, SPORTS
€ 51.50
39-2
NOTUSED
ref: 39-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
40
4630011850
ref: 40
OPT
BOLT SET, CARRIER
€ 0.00
41
0151708858
ref: 41
OPT
BOLT
€ 3.50
42
0916010041
ref: 42
OPT
WASHER(10.3X25X1.5
0916010041
€ 4.00
