ELECTRICAL

GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

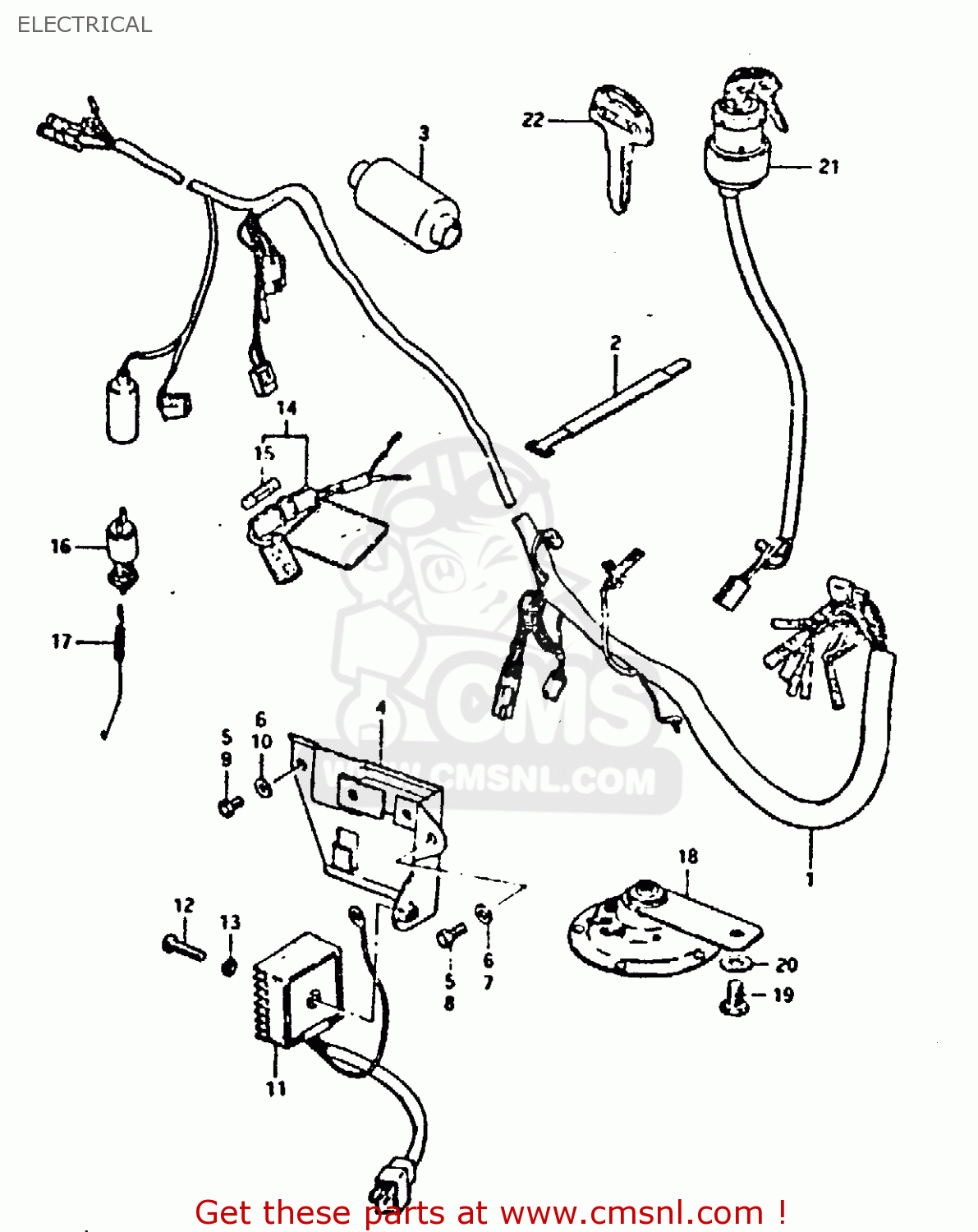

Electrical diagram GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

ELECTRICAL GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
ELECTRICAL GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
ELECTRICAL GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
prices are in EUR
ref
part #
description
quantity
1-1
3661011300
ref: 1-1
MODEL N
WIRING HARNESS
€ 173.50
1-2
366101301
ref: 1-2
MODEL X
WIRING HARNESS
€ 0.00
2-1
0940718301
ref: 2-1
L:180
CLAMP
0940718301
€ 6.00
2-2
0940711302
ref: 2-2
L:110, MODEL N
CLAMP
€ 6.00
2-3
0940711301
ref: 2-3
L:110, MODEL X
CLAMP L:110
€ 6.00
2-4
0940725301
ref: 2-4
L:250
CLAMP(L:250)
0940725301
€ 4.50
2-5
0940712402
ref: 2-5
L:120, MODEL X
CLAMP(L:120)
0940712402
€ 3.00
3
3661830610
ref: 3
MODEL N
BOOT,WIRING HARNESS
3661830610
€ 9.50
4
4741011300
ref: 4
PLATE, ELECTRIC PARTS HOLDER
€ 0.00
5
0110706128
ref: 5
MODEL N
BOLT
0110706128
€ 2.00
6
0916006012
ref: 6
MODEL N
WASHER(6,5X22X1.6)
€ 2.00
7
0916006007
ref: 7
WASHER
0916006007
€ 2.00
8
0110706128
ref: 8
MODEL X
BOLT
0110706128
€ 2.00
9
0110706108
ref: 9
BOLT
€ 2.00
10
0832221068
ref: 10
WASHER
0832221068
€ 2.00
11
3280011320
ref: 11
RECTIFIRE ASSY, REGULATOR
3280011320
€ 200.50
12
0211206258
ref: 12
SCREW
€ 2.00
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
3674015010
ref: 14
BOX ASSEMBLY,FUSE
3674015010
€ 11.00
15
0948115001
ref: 15
FUSE(15A)
0948115001
€ 3.00
16
3761053011
ref: 16
SWITCH ASSY,BRAKE LAMP
3761053011
€ 34.50
17
0944306018
ref: 17
SPRING
0944306018
€ 4.50
18-1
3850011390
ref: 18-1
TO 38500-11392
HORN ASSEMBLY
€ 61.50
18-2
NOTUSED
ref: 18-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
19
0110708128
ref: 19
BOLT 8X12
0110708128
€ 2.50
20
0832211088
ref: 20
E39
WASHER
0832211088
€ 2.00
21
3711028655
ref: 21
TO 37110-28656
SWITCH ASSY, IGNITION
€ 86.50
22
3714519710
ref: 22
OPT
KEY,BLANK
3714519710
€ 13.00
