MASTER CYLINDER (MODEL X)

GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

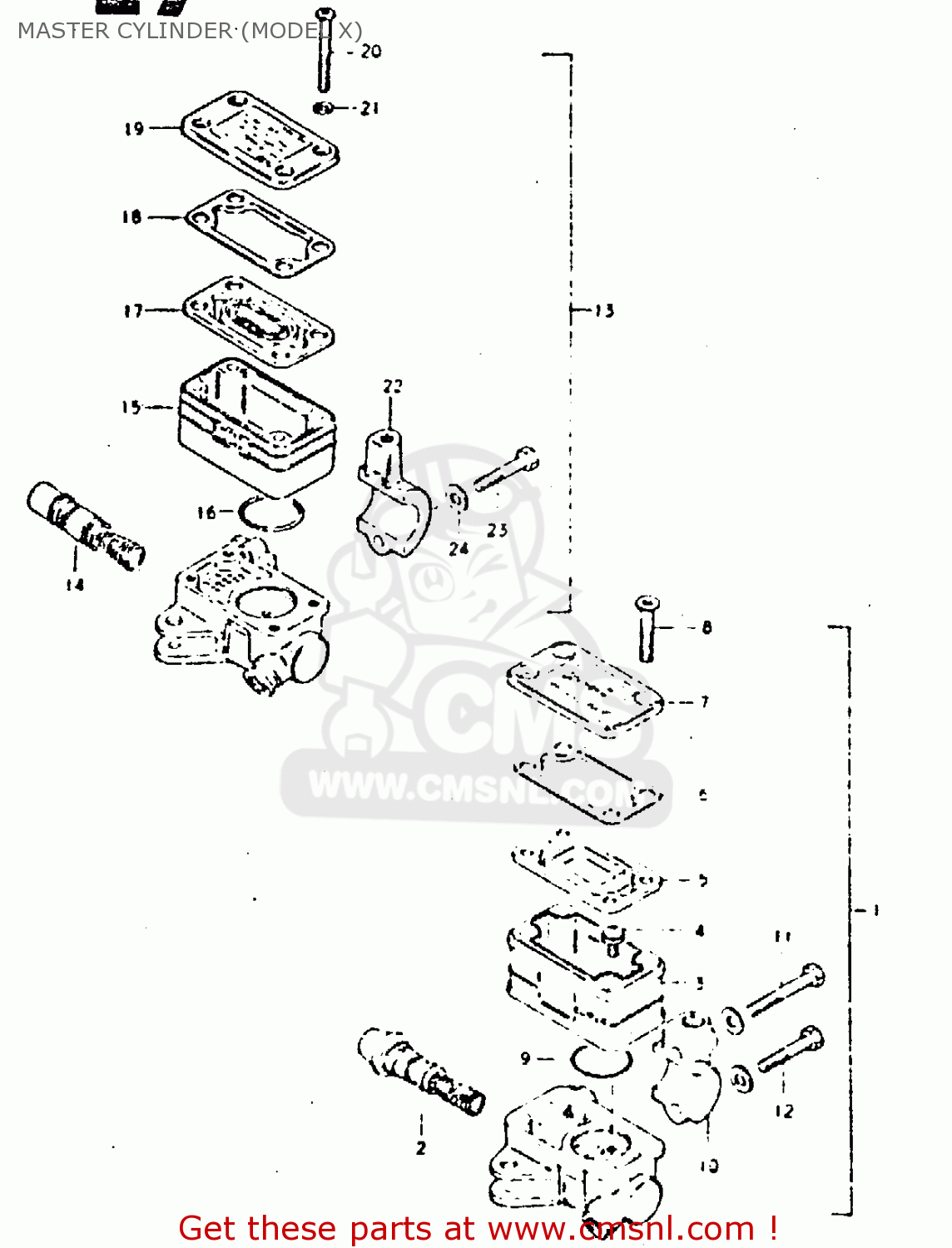

Master cylinder (model x) diagram GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

MASTER CYLINDER (MODEL X) GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
MASTER CYLINDER (MODEL X) GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
MASTER CYLINDER (MODEL X) GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
prices are in EUR
ref
part #
description
quantity
1
5960049101
ref: 1
AISHIN
CYLINDER ASSY, MASTER
5960049101
€ 176.50
2
5960049820
ref: 2
PISTON & CUP SET
5960049820
€ 61.00
3
5968749000
ref: 3
RESERVOIR
5968749000
€ 24.00
4
5968849000
ref: 4
SCREW,MASTER C
5968849000
€ 1.00
5
5966749000
ref: 5
DIAPHRAGM
5966749000
€ 19.50
6
5966849000
ref: 6
PLATE,DIAPHRAGM
5966849000
€ 7.00
7
5966949000
ref: 7
CAP
5966949000
€ 25.00
8
5969149000
ref: 8
SCREW
5969149000
€ 4.50
8
5968649000
ref: 8
O RING
5968649000
€ 6.50
9
5968649000
ref: 9
O RING
5968649000
€ 6.50
10
5967149000
ref: 10
HOLDER
5967149000
€ 22.50
11
5969449001
ref: 11
BOLT,MASTER CYLINDER H
5969449001
€ 3.00
12
5969349001
ref: 12
BOLT,MASTER CYLINDER H
5969349001
€ 4.00
13
5960045210
ref: 13
NISSIN
CYLINDER ASSY, MASTER
€ 188.00
14
5960045841
ref: 14
PISTON & CUP SET
5960045841
€ 41.50
15
5968745100
ref: 15
RESERVOIR
5968745100
€ 20.50
16
5968645100
ref: 16
O RING
5968645100
€ 9.50
17
5966745100
ref: 17
DIAPHRAGM
5966745100
€ 11.50
18
5966845101
ref: 18
PLATE,DIAPHRAGM
5966845101
€ 14.50
19
5966945100
ref: 19
CAP
5966945100
€ 27.50
20
5969145100
ref: 20
SCREW
5969145100
€ 3.00
21
5969245100
ref: 21
WASHER
5969245100
€ 3.00
22
5967145100
ref: 22
HOLDER
5967145100
€ 17.50
23
0110706258
ref: 23
BOLT
€ 2.00
24
0832221068
ref: 24
WASHER
0832221068
€ 2.00
