FRONT WHEEL (GT250EN, EX)

GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

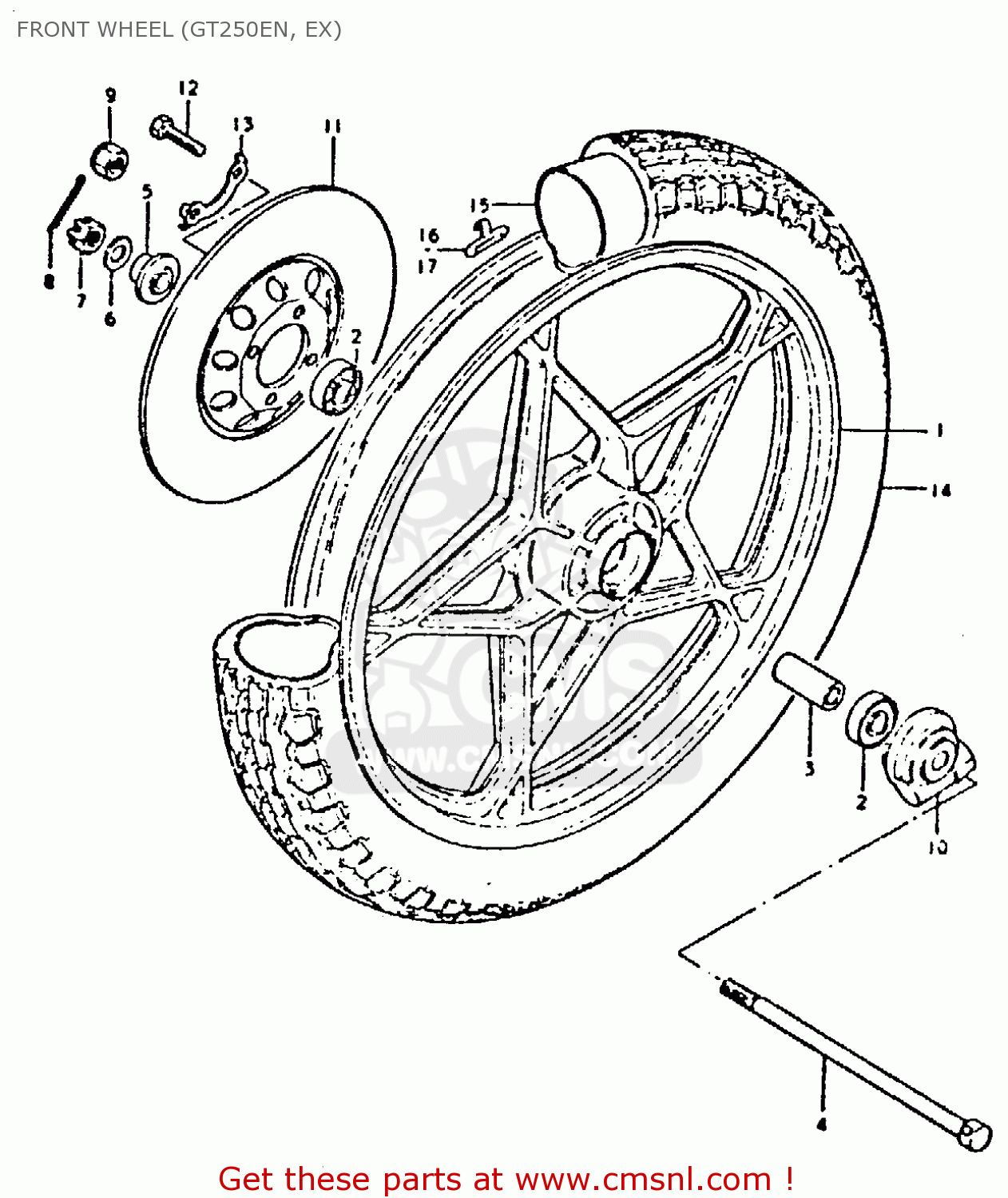

Front wheel (gt250en, ex) diagram GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

FRONT WHEEL (GT250EN, EX) GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
FRONT WHEEL (GT250EN, EX) GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
FRONT WHEEL (GT250EN, EX) GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
prices are in EUR
ref
part #
description
quantity
1
541111130112U
ref: 1
FROM 54111-11300
WHEEL, FRONT
€ 429.00
2
0812363017
ref: 2
BEARING
0812363017
€ 13.50
3
0918012041
ref: 3
SPACER (12.6X19X52)
0918012041
€ 4.50
4
5471111301
ref: 4
AXLE, FRONT
5471111301
€ 24.00
5
5474011300
ref: 5
SPACER,FR AXLE,L
5474011300
€ 13.50
6
0832211128
ref: 6
WASHER
0832211128
€ 2.00
7
0831431128
ref: 7
NUT 12MM
0831431128
€ 2.00
8
0411130308
ref: 8
COTTER PIN
0411130308
€ 1.50
9
NOTUSED
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
5460036200
ref: 10
BOX ASSY,SPEEDOMETER GEAR
5460036200
€ 95.50
11
5921136202
ref: 11
DISC,BRAKE
€ 179.50
12
0910008140
ref: 12
BOLT(8X25)
0910008140
€ 2.00
13
0916908019
ref: 13
WASHER
0916908019
€ 2.00
14-1
NOTUSED
ref: 14-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
14-2
5510011350
ref: 14-2
E2
TIRE (3.00S18) DUNLOP
€ 0.00
14-3
5510044030
ref: 14-3
E2, E4, E16, E17, E1
TIRE,FRONT
€ 123.00
15-1
NOTUSED
ref: 15-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
15-2
5520018030
ref: 15-2
E2, E4, E16, E17, E1
TUBE,INNER
€ 24.50
16
5541147001
ref: 16
BALANCER,WHEEL
5541147001
€ 4.00
17
5541247001
ref: 17
BALANCER,WHEEL
5541247001
€ 3.50
