CYLINDER

GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

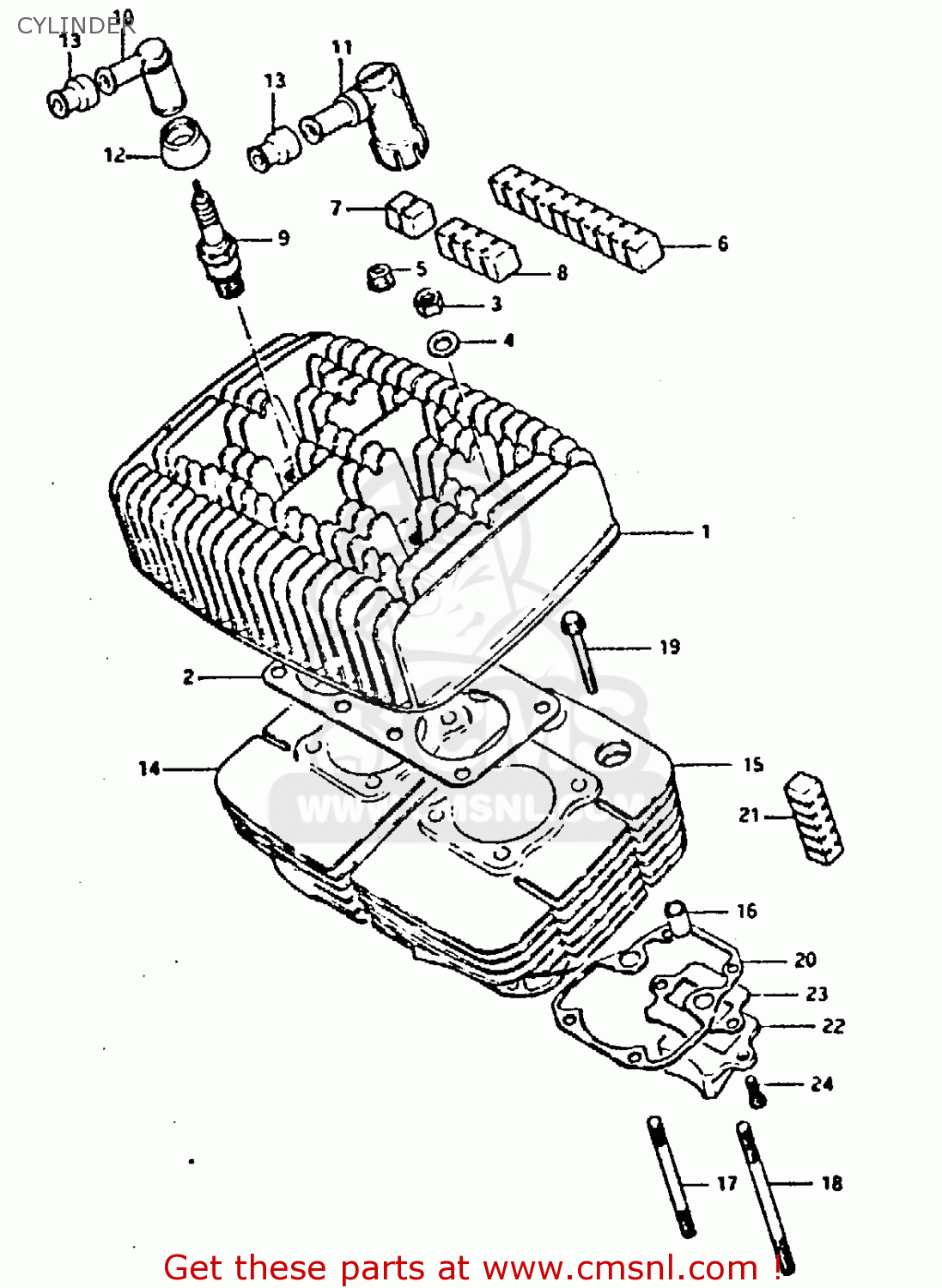

Cylinder diagram GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)

CYLINDER GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
CYLINDER GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
CYLINDER GT250E 1981 (X) (E01 E02 E04 E05 E16 E17 E18 E21 22 24 25 30 39)
prices are in EUR
ref
part #
description
quantity
1
1111111300
ref: 1
CYLINDER HEAD
€ 0.00
2
1114111300
ref: 2
GASKET,CYLINDER HEAD (NAS)
1114111300
€ 15.50
2
1114111300
ref: 2
GASKET,CYLINDER HEAD (NAS)
1114111300
€ 15.50
3
0831012088
ref: 3
NUT
0831012088
€ 2.00
4
0832211088
ref: 4
WASHER
0832211088
€ 2.00
5
0831616088
ref: 5
NUT
0831616088
€ 2.50
6
1125111300
ref: 6
PAD,CYLINDER
1125111300
€ 11.50
7
1125211300
ref: 7
PAD,CYLINDER
€ 11.50
8
1125129310
ref: 8
PAD,CYLINDER
€ 11.50
9-1
0948200066
ref: 9-1
SPARK PLUG
€ 2.50
9-2
0948200160
ref: 9-2
SPARK PLUG W27ES
€ 9.00
9-3
NOTUSED
ref: 9-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9-4
NOTUSED
ref: 9-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
3351022010
ref: 10
CAP ASSY,SPARK PLUG
3351022010
€ 16.50
11
NOTUSED
ref: 11
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
12
3354169010
ref: 12
SEAL,SPARK PLUG
3354169010
€ 5.00
13
3354298000
ref: 13
SEAL,SPARK PLU
3354298000
€ 4.50
14
1121011300
ref: 14
CYLINDER,RH
1121011300
€ 467.50
15
1122011300
ref: 15
CYLINDER,LH
€ 467.50
16
0920613001
ref: 16
PIN
0920613001
€ 2.50
17
0910808056
ref: 17
BOLT,STUD
0910808056
€ 4.50
18
0910808057
ref: 18
BOLT,STUD
0910808057
€ 5.50
19
0151706508
ref: 19
BOLT ,6X50
€ 2.00
20
1124111300
ref: 20
GASKET, CYLINDER (MCA)
1124111300
€ 9.50
21
1125139100
ref: 21
RUBBER PAD, CYLINDER (1)
1125139100
€ 6.50
22
1315011310
ref: 22
VALVE ASSY,REED
1315011310
€ 107.00
23
1315611300
ref: 23
GASKET (MCA)
1315611300
€ 6.00
24
0211206208
ref: 24
SCREW
€ 2.00
