AIR CLEANER
LS650 BOULEVARD S40 2014 (L4) USA (E03)

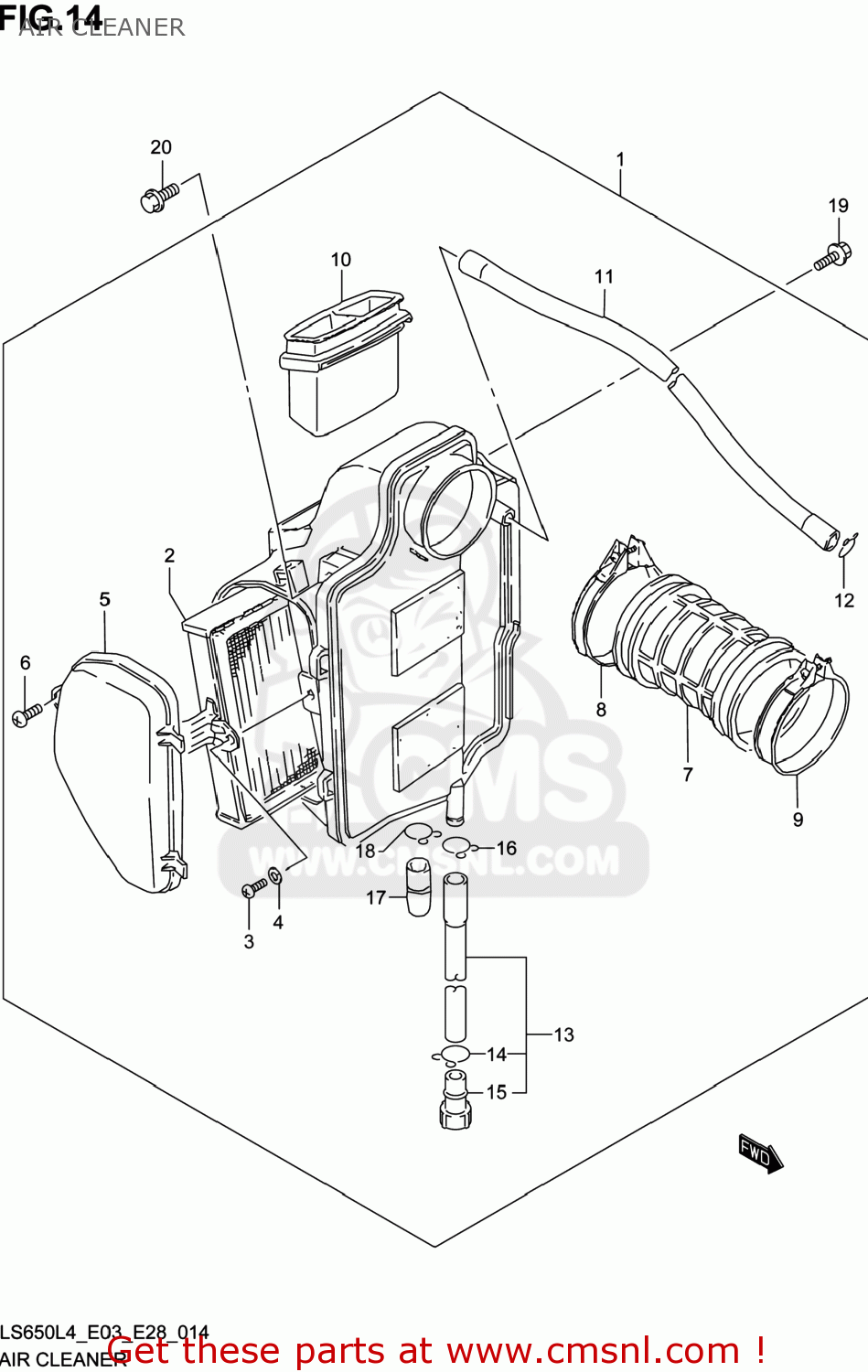

Air cleaner diagram LS650 BOULEVARD S40 2014 (L4) USA (E03)
AIR CLEANER LS650 BOULEVARD S40 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1370024B05
ref: 1
CLEANER ASSY,AIR
€ 81.00
2
1378024B01
ref: 2
FILTER ASSY,AIR
€ 31.50
3
0211205107
ref: 3
SCREW
€ 2.00
4
083210105A
ref: 4
WASHER,LOCK
€ 2.00
5
1374024B01
ref: 5
CAP,AIR CLEANER
€ 13.50
6
021420512A
ref: 6
SCREW
€ 1.50
7
1388124B01
ref: 7
TUBE,AIR CLEANER OUTLET
€ 17.50
8
0940270902
ref: 8
CLAMP
€ 6.00
9
0940264203
ref: 9
CLAMP
€ 6.00
10
1389124B00
ref: 10
TUBE,INLET
€ 13.00
11
0935211153600
ref: 11
HOSE(11X15X600)
€ 13.50
12
0940114301
ref: 12
CLIP
€ 2.00
13
1387011458
ref: 13
TUBE,DRAIN
€ 13.50
14
1382418910
ref: 14
09401-11101
CLIP
€ 2.00
15
1387738A00
ref: 15
STOPPER,DRAIN
€ 3.50
16
0940113409
ref: 16
CLIP
€ 2.50
17
1385941B10
ref: 17
PLUG
€ 5.50
18
0940114301
ref: 18
CLIP
€ 2.00
19
0911606006
ref: 19
BOLT(6X16)
€ 2.00
20
015500612B
ref: 20
BOLT
€ 2.50
