HANDLE SWITCH

LS650 BOULEVARD S40 2014 (L4) USA (E03)

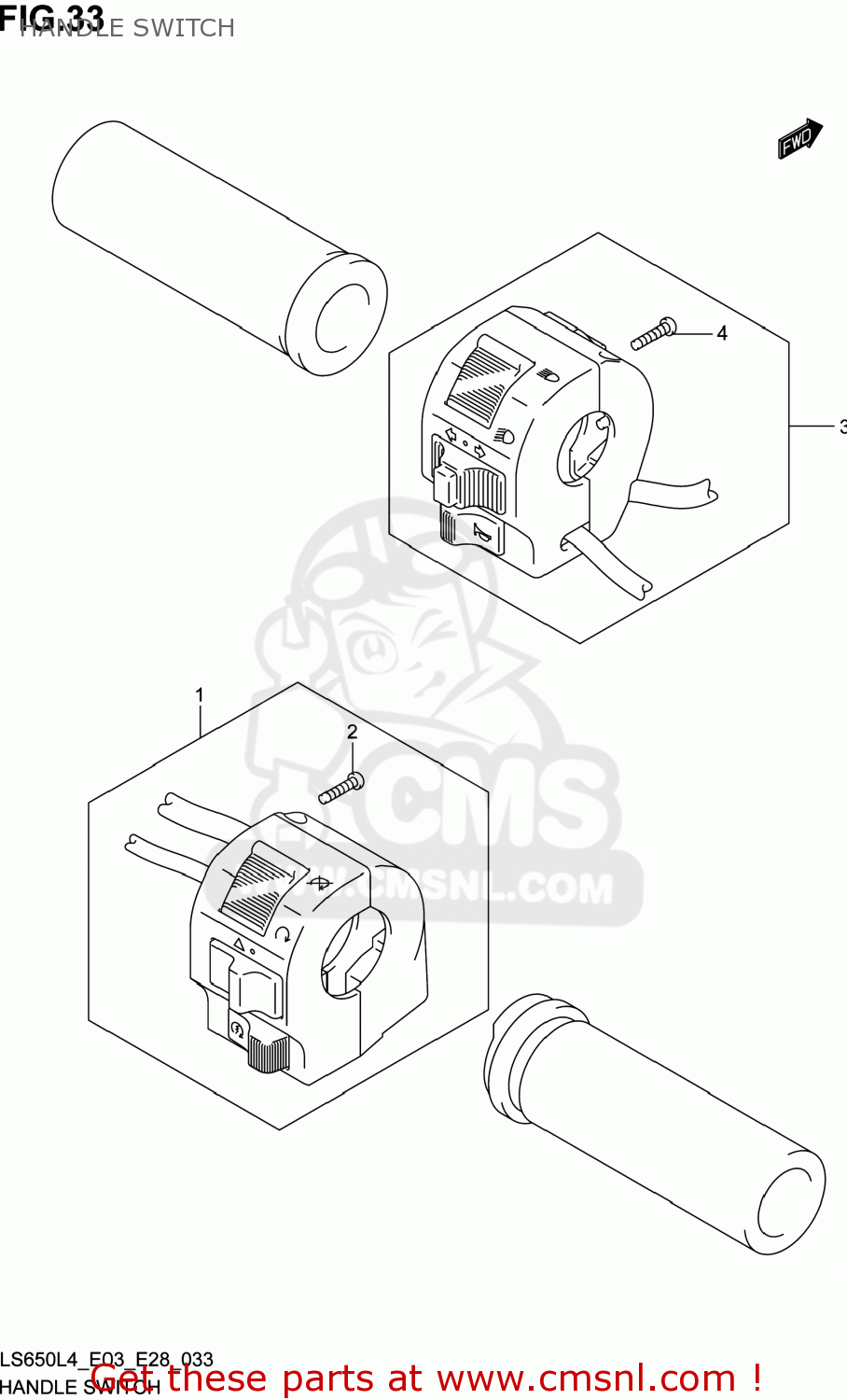

Handle switch diagram LS650 BOULEVARD S40 2014 (L4) USA (E03)

HANDLE SWITCH LS650 BOULEVARD S40 2014 (L4) USA (E03)

HANDLE SWITCH LS650 BOULEVARD S40 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720024BF0
ref: 1

SWITCH ASSY,HANDLE,R

€ 0.00

2

0211205167
ref: 2

SCREW

€ 2.50

3

3740024BH0
ref: 3

SWITCH ASSY,HANDLE,L

€ 0.00

4

0211205167
ref: 4

SCREW

€ 2.50
