CAM CHAIN
LS650 BOULEVARD S40 2014 (L4) USA (E03)

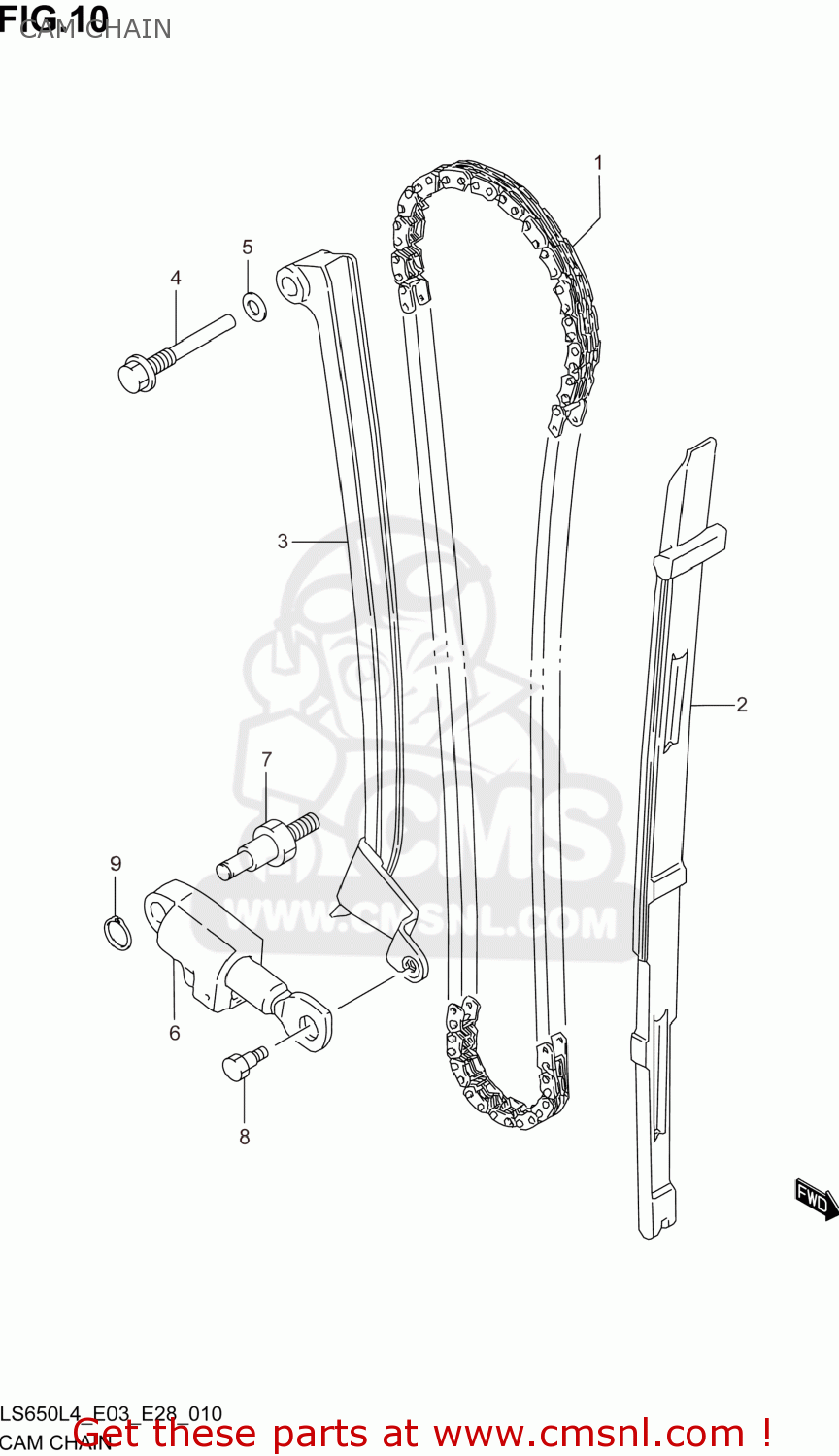

Cam chain diagram LS650 BOULEVARD S40 2014 (L4) USA (E03)
CAM CHAIN LS650 BOULEVARD S40 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276024B00
ref: 1
CHAIN,CAMSHAFT DRIVE
€ 154.00
2
1277124B01
ref: 2
GUIDE,CAM CHAIN
€ 36.50
3
1281124B00
ref: 3
TENSIONER,CAM CHAIN
€ 78.00
4
1281224B00
ref: 4
BOLT,CAM CHAIN TENSIONER
€ 5.50
5
0916808016
ref: 5
GASKET(8.2X14X1) (NAS)
€ 1.00
6
1283024B01
ref: 6
ADJUSTER ASSY,TENSIONER
€ 68.50
7
0910808194
ref: 7
BOLT,STUD
€ 9.50
8
0911906069
ref: 8
BOLT
€ 5.50
9
0833131089
ref: 9
CIRCLIP
€ 2.00
