REAR FENDER
LS650 BOULEVARD S40 2014 (L4) USA (E03)

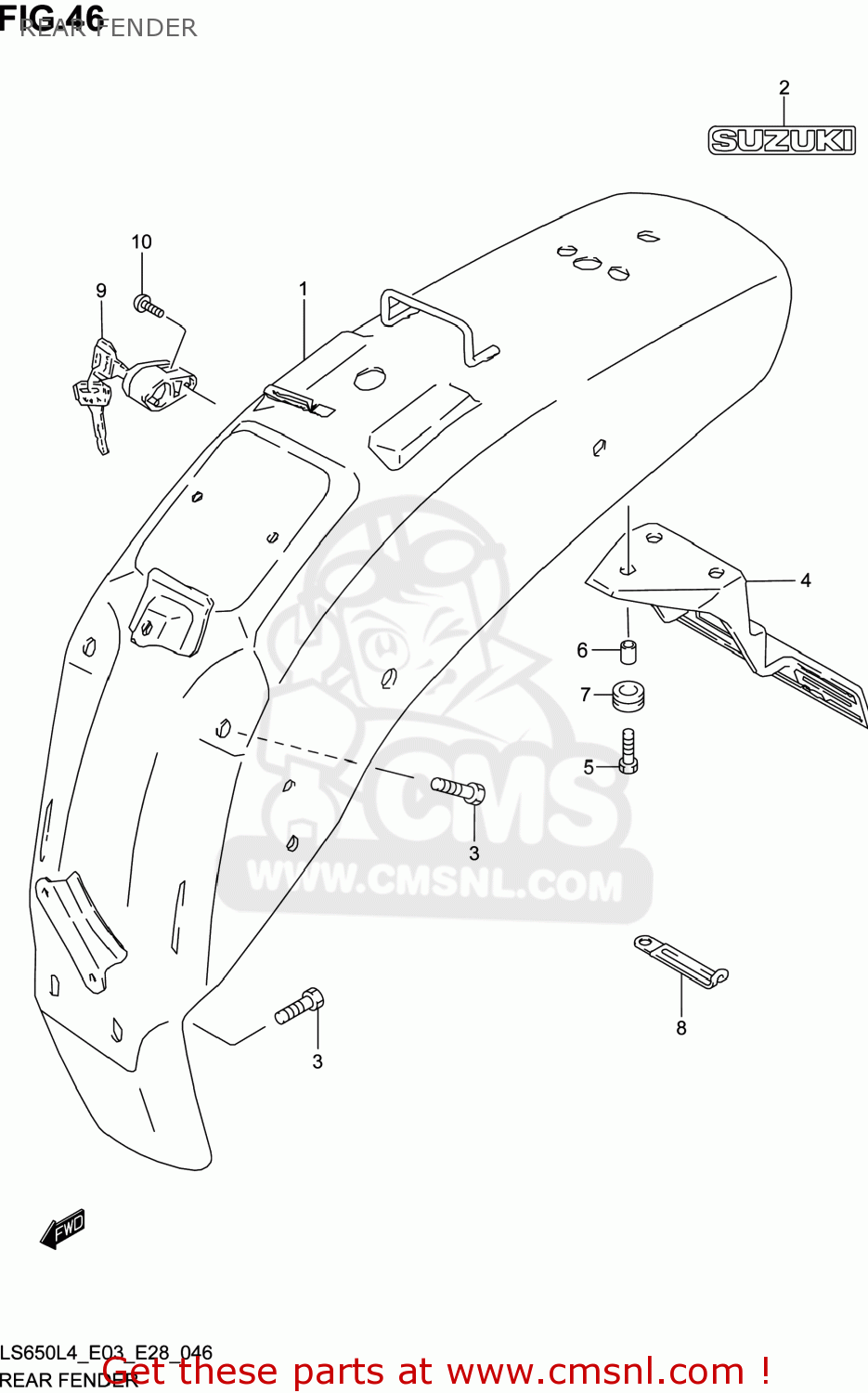

Rear fender diagram LS650 BOULEVARD S40 2014 (L4) USA (E03)
REAR FENDER LS650 BOULEVARD S40 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6310024C00YUE
ref: 1-1
FENDER ASSY,RR
€ 226.00
1-2
6310024C00YUK
ref: 1-2
FENDER ASSY,RR
€ 226.00
2
6827134A00YES
ref: 2
EMBLEM,SUZUKI
€ 6.50
3
0910308419
ref: 3
BOLT(8X25)
€ 1.50
4
3591624B01
ref: 4
BRACKET,LICENSE PLATE
€ 47.00
5
0911606010
ref: 5
BOLT(6X20)
€ 2.00
6
0918006263
ref: 6
SPACER(6.5X9X9)
€ 2.00
7
0932009016
ref: 7
CUSHION
€ 2.50
8
0940406429
ref: 8
CLAMP(L:45)
€ 2.50
9
9570038821
ref: 9
LOCK SET,HELMET
€ 54.00
10
0211205127
ref: 10
SCREW
€ 2.50
