TRANSMISSION
LS650 BOULEVARD S40 2014 (L4) USA (E03)

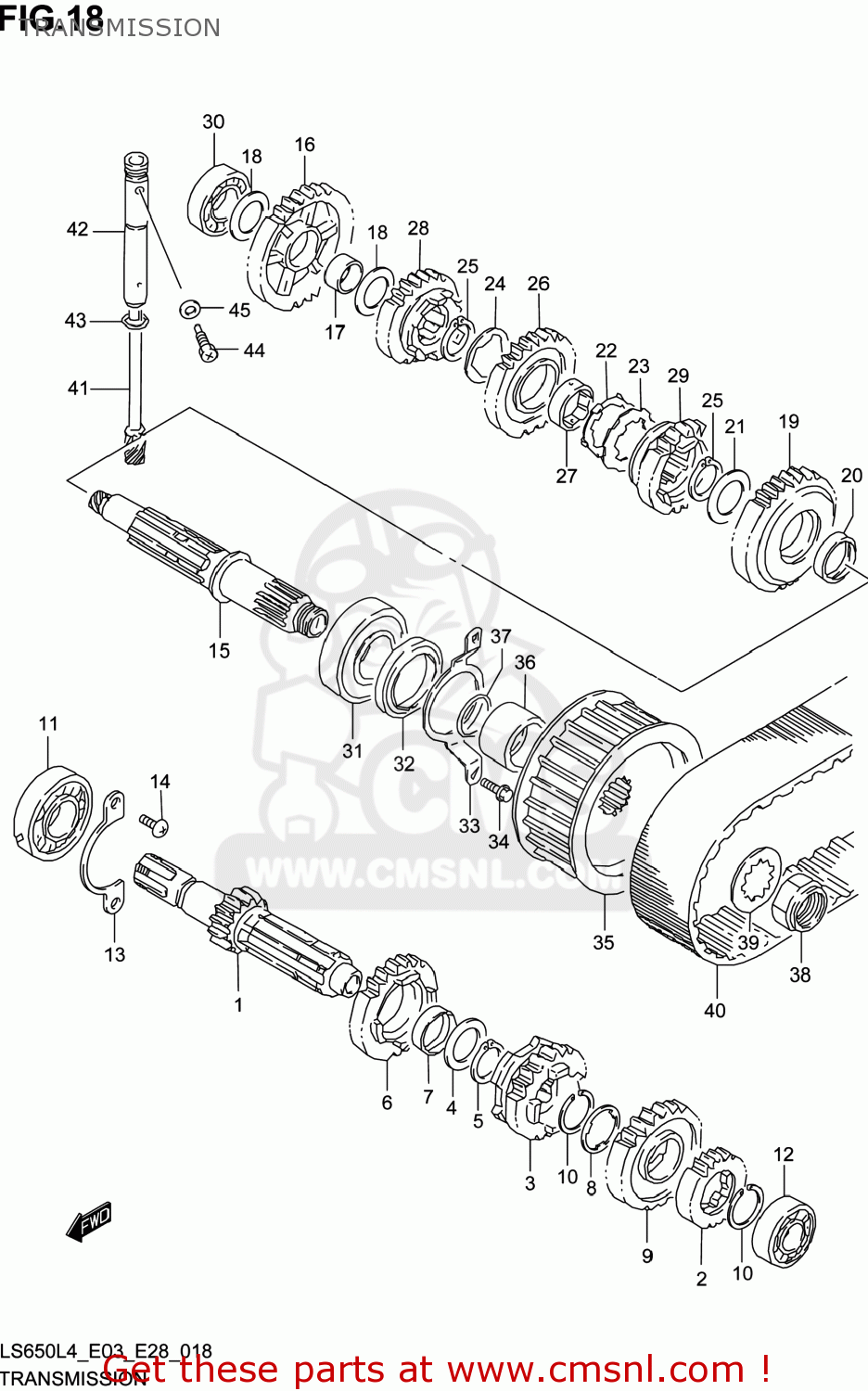

Transmission diagram LS650 BOULEVARD S40 2014 (L4) USA (E03)
TRANSMISSION LS650 BOULEVARD S40 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412124B12
ref: 1
SHAFT,COUNTER(NT:15)
€ 173.50
2
2422124B21
ref: 2
GEAR,2ND DRIVE(NT:19)
€ 73.00
3
2423124B30
ref: 3
GEAR,3RD DRIVE(NT:21)
€ 88.50
4
0821125351
ref: 4
WASHER
€ 3.00
5
0938025003
ref: 5
RING,SNAP
€ 3.00
6
2424124B20
ref: 6
GEAR,4TH DRIVE(NT:23)
€ 85.50
7
2425219F00
ref: 7
BUSH
€ 9.50
8
0916725012
ref: 8
WASHER,LOCK
€ 3.50
9
2425124B13
ref: 9
GEAR,5TH DRIVE
€ 82.00
10
0938025010
ref: 10
CIRCLIP
€ 3.00
11
0926222028
ref: 11
BEARING(22X56X16)
€ 59.50
12
0926217027
ref: 12
BEARING(17X40X12)
€ 25.00
13
2474124B00
ref: 13
RETAINER,CNTR SHAFT BEARING
€ 6.00
14
021120612A
ref: 14
SCREW
€ 1.50
15
2413024B12
ref: 15
SHAFT,DRIVE
€ 161.50
16
2431124B11
ref: 16
GEAR,1ST DRIVEN(NT:35)
€ 100.50
17
0930020032
ref: 17
BUSH(20X24X13)
€ 10.00
18
0918120195
ref: 18
SHIM(20X30X1)
€ 3.00
19
2432124B20
ref: 19
GEAR,2ND DRIVEN
€ 85.50
20
0930025020
ref: 20
BUSH(25X29X8)
€ 10.00
21
0821125351
ref: 21
WASHER
€ 3.00
22
0916925001
ref: 22
WASHER
€ 2.00
23
0916725013
ref: 23
WASHER,LOCK
€ 2.50
24
0916725016
ref: 24
WASHER,LOCK
€ 3.00
25
0938025003
ref: 25
RING,SNAP
€ 3.00
26
2433124B20
ref: 26
GEAR,3RD DRIVEN
€ 82.00
27
2433224510
ref: 27
BUSH,DRIVEN GEAR
€ 9.50
28
2434124B20
ref: 28
GEAR,4TH DRIVEN(NT:22)
€ 82.00
29
2435124B13
ref: 29
GEAR,5TH DRIVEN
€ 86.50
30
0926220106
ref: 30
BEARING(20X42X12)
€ 20.50
31
0926225125
ref: 31
BEARING(25X62X17)
€ 49.00
32
0928336003
ref: 32
SEAL,OIL(36X50X6)
€ 12.00
33
2475124B00
ref: 33
RETAINER,DRIVE SHAFT OIL SEAL
€ 4.50
34
015470612A
ref: 34
BOLT
€ 2.00
35
2751024B01
ref: 35
PULLEY,FR
€ 81.50
36
2753124B00
ref: 36
SPACER,FR PULLEY
€ 18.50
37
0928024010
ref: 37
O RING(D:2.4,ID:23.7)
€ 5.50
38
0915920004
ref: 38
NUT
€ 12.00
39
0916725027
ref: 39
WASHER,LOCK
€ 1.50
40
2761124B00133
ref: 40
BELT,DRIVE
€ 416.50
41
2613124B00
ref: 41
GEAR,SPEEDOMETER DRIVEN
€ 21.50
42
2648124B01
ref: 42
SLEEVE,TACHOMETER DRIVEN GEAR
€ 28.50
43
0928010001
ref: 43
O RING(D:1.3,ID:9.6)
€ 2.00
44
0913506501
ref: 44
BOLT(6X10)
€ 2.50
45
0916806004
ref: 45
GASKET(6.2X11X1).2 (NAS)
€ 1.50
