MAGNETO
LS650 BOULEVARD S40 2014 (L4) USA (E03)

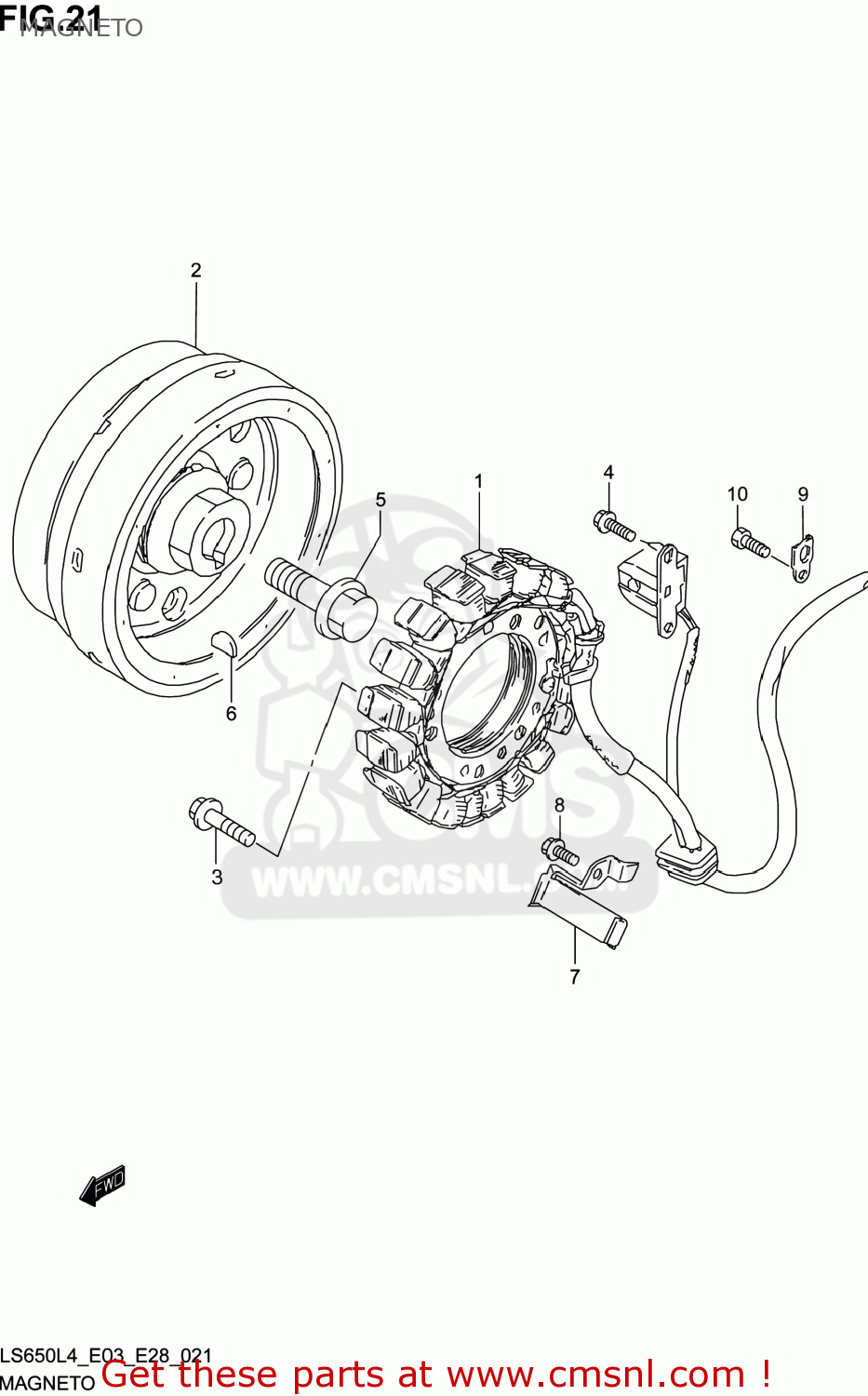

Magneto diagram LS650 BOULEVARD S40 2014 (L4) USA (E03)
MAGNETO LS650 BOULEVARD S40 2014 (L4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3210124B02
ref: 1
STARTER ASSY
€ 603.00
2
3210224B10
ref: 2
ROTOR ASSY
€ 463.00
3
015470625A
ref: 3
BOLT
€ 2.50
4
015470510A
ref: 4
BOLT
€ 2.00
5
0910314001
ref: 5
BOLT(14X43)
€ 7.00
6
0942005007
ref: 6
KEY
€ 3.00
7
3237124B00
ref: 7
CLAMP,MAGNETO LEAD WIRE NO.1
€ 3.00
8
015470510A
ref: 8
BOLT
€ 2.00
9
3149745000
ref: 9
CLAMP,GENERATOR LEAD WIRE
€ 1.50
10
0910005019
ref: 10
BOLT(5X10)
€ 1.50
