FRONT MASTER CYLINDER

LS650 BOULEVARD S40 2014 (L4) USA (E03)

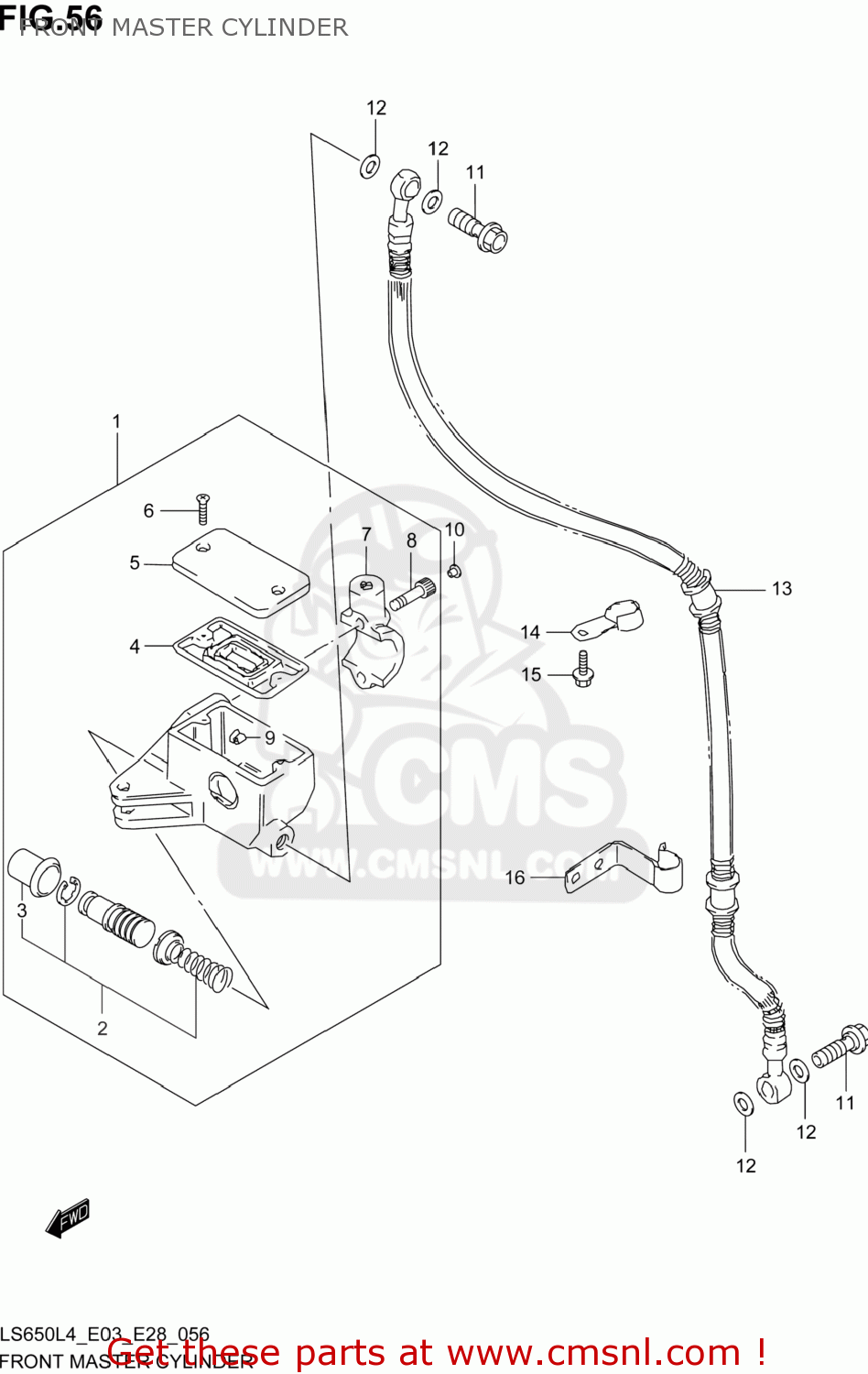

Front master cylinder diagram LS650 BOULEVARD S40 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

5960038AA0
ref: 1

CYLINDER ASSY,FR MASTER

€ 0.00

5960004810
ref: 2

PISTON/CUP SET

€ 37.50

5966644300
ref: 3

BOOT

€ 6.00

5966749460
ref: 4

5966749460

5966910F00
ref: 5

CAP

€ 59.50

0212204127
ref: 6

SCREW

€ 2.00

5967138A00
ref: 7

HOLDER

€ 37.50

0713006207
ref: 8

BOLT

€ 3.50

5966448B00
ref: 9

PROTECTOR

€ 8.00

0925005008
ref: 10

CAP(OD:10)

€ 5.00

0936010061
ref: 11

BOLT UNION

€ 6.50

0916110009
ref: 12

WASHER(10X15X1.5)

€ 2.00

5948024B60
ref: 13

HOSE,FR BRAKE

€ 81.50

5954124B00
ref: 14

GUIDE,BRAKE HOSE NO.1

€ 6.50

015470610A
ref: 15

BOLT

€ 2.00

5926824B00
ref: 16

GUIDE,BRAKE HOSE NO.2

€ 7.50

FRONT MASTER CYLINDER

all assemblies
