REAR COMBINATION LAMP

LS650 BOULEVARD S40 2014 (L4) USA (E03)

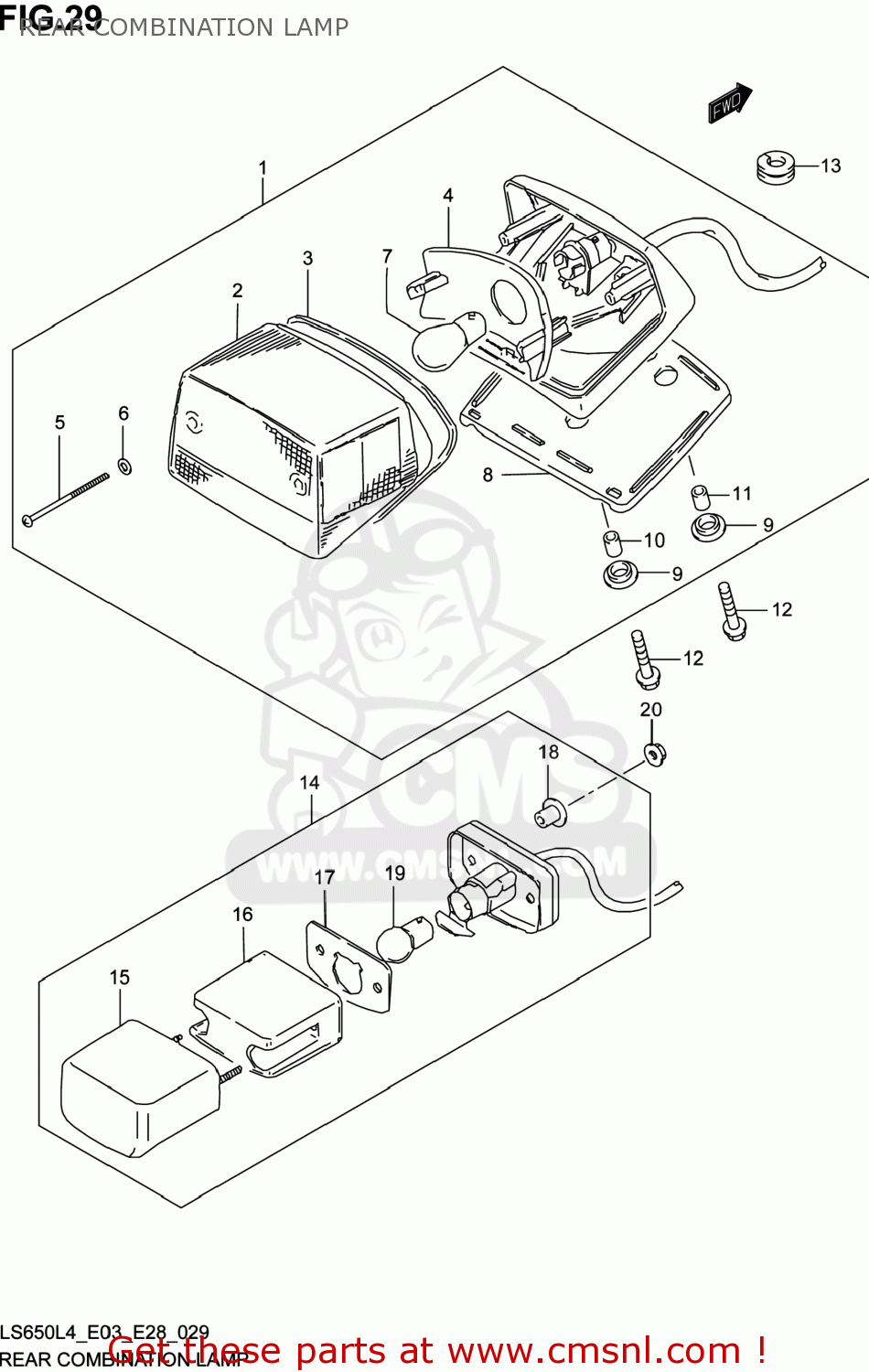

Rear combination lamp diagram LS650 BOULEVARD S40 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

3571024B40
ref: 1

LAMP ASSY,RR COMBINATION

€ 0.00

3571224B30
ref: 2

LENS

€ 28.50

3571324B00
ref: 3

GASKET (NAS)

€ 5.50

3571438A00
ref: 4

REFLECTOR

€ 16.50

3572344130
ref: 5

SCREW

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0947112128
ref: 7

BULB(12V21/5W,BF141-49642A)

€ 6.00

3576524B00
ref: 8

CUSHION

€ 12.00

3576426470
ref: 9

CUSHION

€ 2.50

3576640640
ref: 10

SPACER

€ 0.00

3576624B40
ref: 11

SPACER

€ 0.00

0911606093
ref: 12

BOLT(6X25)

€ 2.00

0930809004
ref: 13

GROMMET

€ 0.00

3591024B50
ref: 14

LAMP ASSY,LICENSE

€ 0.00

3591717C10
ref: 15

COVER,LENS

€ 72.00

3591238A30
ref: 16

LENS

€ 11.50

3591338A30
ref: 17

GASKET,LICENSE LAMP (NAS)

€ 2.00

3596624B40
ref: 18

SPACER

€ 0.00

0947112140
ref: 19
09471-12058

BULB(12V5W,BF150-40160A)

€ 4.00

083161004B
ref: 20

NUT

€ 2.00
