CARBURETOR (LS650L4 E33)

LS650 BOULEVARD S40 2014 (L4) USA (E03)

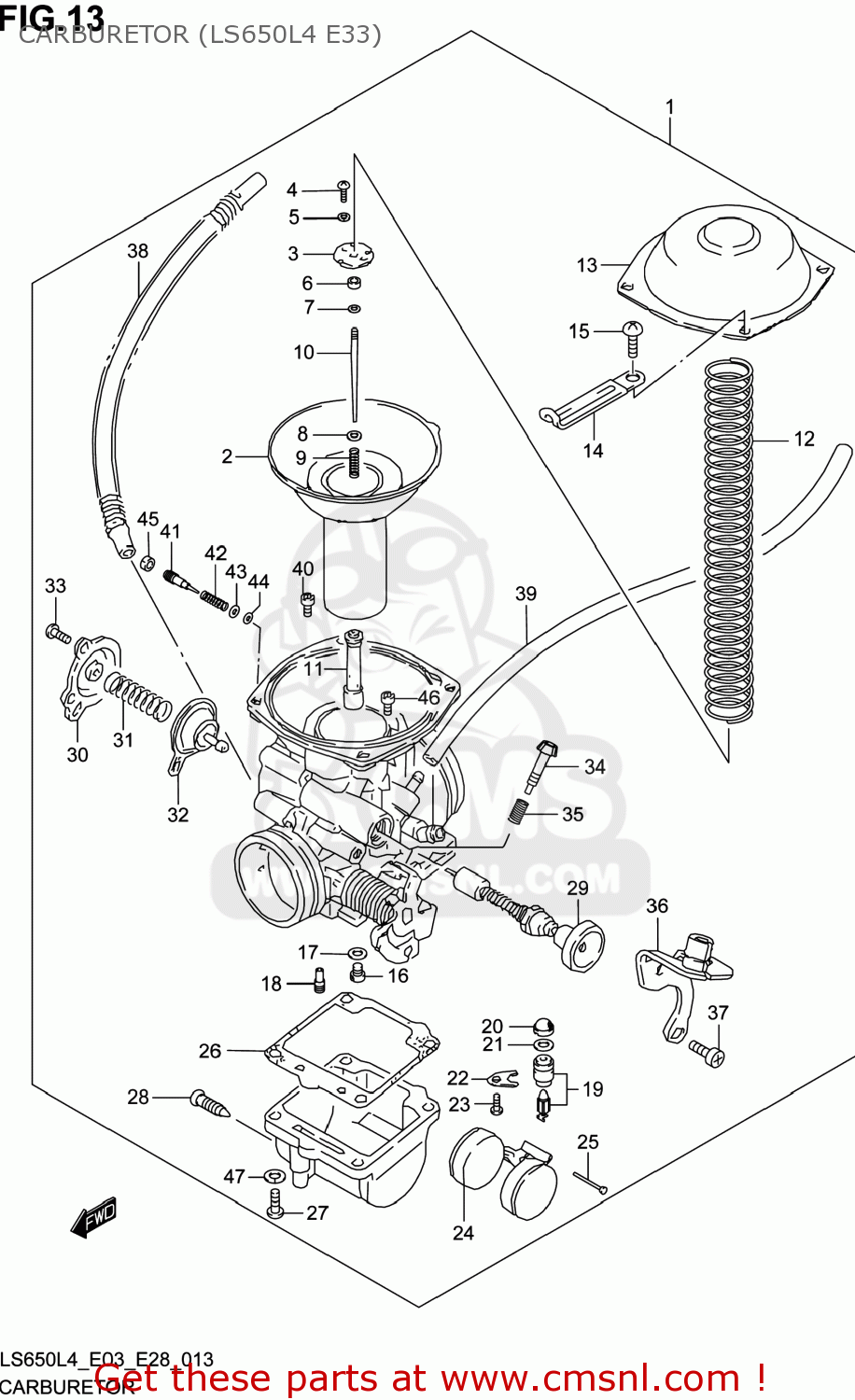

Carburetor (ls650l4 e33) diagram LS650 BOULEVARD S40 2014 (L4) USA (E03)

CARBURETOR (LS650L4 E33) LS650 BOULEVARD S40 2014 (L4) USA (E03)
CARBURETOR (LS650L4 E33) LS650 BOULEVARD S40 2014 (L4) USA (E03)
CARBURETOR (LS650L4 E33) LS650 BOULEVARD S40 2014 (L4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1320024C51
ref: 1
CARBURETOR ASSY
€ 276.00
2
1350024B40
ref: 2
DIAPHRAGM ASSY
1350024B40
€ 136.00
3
1338937400
ref: 3
PLATE
1338937400
€ 5.50
4
021120306B
ref: 4
SCREW
021120306B
€ 2.00
5
083212103B
ref: 5
WASHER,LOCK
083212103B
€ 1.50
6
1338744030
ref: 6
RING
1338744030
€ 5.00
7
1339431210
ref: 7
CLIP,NEEDLE
1339431210
€ 3.50
8
1338244030
ref: 8
WASHER
1338244030
€ 3.50
9
1338844030
ref: 9
SPRING
1338844030
€ 6.00
10
1338324C40
ref: 10
NEEDLE,JET(5C17)
1338324C40
€ 11.50
11
0949400861
ref: 11
JET,NEEDLE(X-7M)
€ 0.00
12
1350324B00
ref: 12
SPRING
1350324B00
€ 11.00
13
1350237400
ref: 13
COVER
1350237400
€ 18.00
14
0940406433
ref: 14
CLAMP(L:80)
0940406433
€ 3.00
15
021120510A
ref: 15
SCREW
021120510A
€ 2.00
16
0949129013
ref: 16
JET,MAIN(145)
0949129013
€ 10.50
17
1338203110
ref: 17
WASHER
1338203110
€ 2.50
18
0949252010
ref: 18
JET,PILOT(52.5)
0949252010
€ 12.50
19
1337024C80
ref: 19
VALVE ASSY,NEEDLE
1337024C80
€ 66.50
20
1337619F00
ref: 20
FILTER
1337619F00
€ 6.50
21
1337435C00
ref: 21
O RING,NEEDLE VALVE SEAT
1337435C00
€ 6.00
22
1337399E10
ref: 22
PLATE,NEEDLE VALVE
€ 5.50
23
021120406B
ref: 23
SCREW
021120406B
€ 2.00
24
1325037400
ref: 24
FLOAT
1325037400
€ 26.00
25
1325492311
ref: 25
PIN,FLOAT
1325492311
€ 2.00
26
1325138300
ref: 26
GASKET,FLOAT CAHMBER (NAS)
1325138300
€ 8.50
27
021120516A
ref: 27
SCREW
021120516A
€ 2.00
28
1324713A00
ref: 28
13247-02340
SCREW,DRAIN
1324713A00
€ 5.50
29
1341124C00
ref: 29
PLUNGER ASSY
1341124C00
€ 42.00
30
1348438A10
ref: 30
COVER
€ 16.00
31
1348124B00
ref: 31
SPRING
1348124B00
€ 3.00
32
1348005A10
ref: 32
DIAPHRAGM ASSY
1348005A10
€ 54.50
33
021120410A
ref: 33
SCREW
021120410A
€ 1.00
34
1326725D00
ref: 34
ADJUSTER
1326725D00
€ 9.00
35
1327193011
ref: 35
SPRING
1327193011
€ 4.50
36
1362124B01
ref: 36
BRACKET ASSY
1362124B01
€ 32.50
37
021120510A
ref: 37
SCREW
021120510A
€ 2.00
38
1331824C00
ref: 38
HOSE ASSY
1331824C00
€ 18.50
39
0935250823600
ref: 39
44420-44AR0
HOSE(5X8.2X600)
0935250823600
€ 13.00
40
0949146005
ref: 40
JET,PILOT(230)
€ 12.00
41
1326937400
ref: 41
SCREW,AIR
1326937400
€ 9.50
42
1326847070
ref: 42
SPRING
1326847070
€ 5.00
43
1329129900
ref: 43
WASHER
1329129900
€ 2.00
44
1329529900
ref: 44
O RING,PILOT AIR SCREW
1329529900
€ 4.00
45
1328105A00
ref: 45
PLUG
1328105A00
€ 3.50
46
0949145002
ref: 46
JET(45)
0949145002
€ 9.50
47
083210105A
ref: 47
WASHER,LOCK
083210105A
€ 2.00
