SEAT

LS650 BOULEVARD S40 2014 (L4) USA (E03)

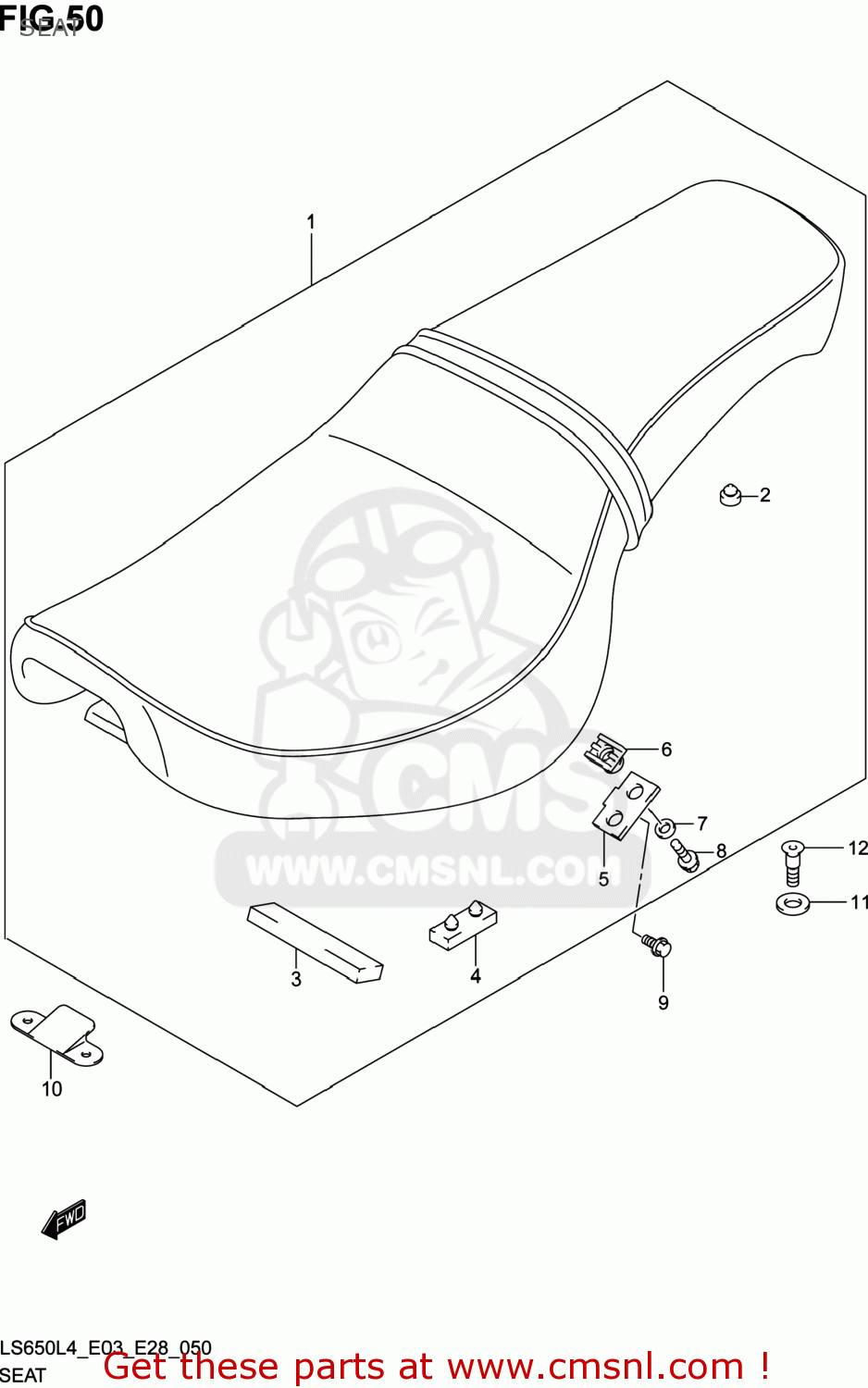

Seat diagram LS650 BOULEVARD S40 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

SEAT ASSY

€ 0.00

4514924B00
ref: 2

CUSHION,SEAT

€ 0.00

4511624B00
ref: 3

CUSHION,CTR FR

€ 5.00

4514943500
ref: 4

CUSHION,SEAT

€ 3.00

4511424B00
ref: 5

BRACKET,SEAT RR

€ 6.00

4511824B00
ref: 6

CUSHION,SEAT RR BRACKET

€ 2.50

0916006066
ref: 7

WASHER(6.5X20X1.6)

€ 2.00

015500625B
ref: 8

BOLT

€ 2.50

015500612B
ref: 9

BOLT

€ 2.50

4511924B00
ref: 10

PLATE,SEAT HOOK FR

€ 2.00

4514924BA0
ref: 11

CUSHION,SEAT RR

€ 0.00

0913906115
ref: 12

SCREW(6X12)

€ 4.50
