STARTER CLUTCH

LS650 BOULEVARD S40 2014 (L4) USA (E03)

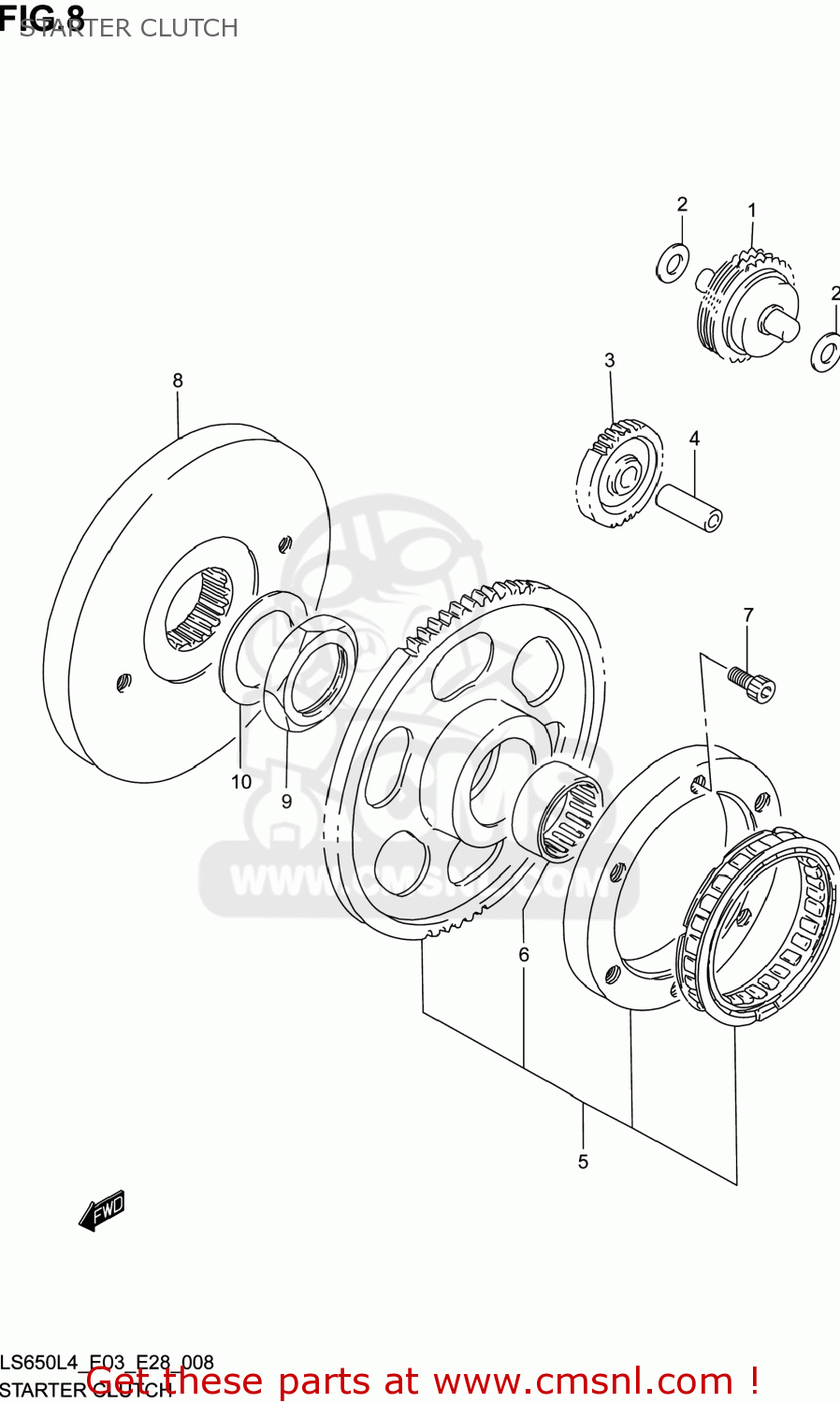

Starter clutch diagram LS650 BOULEVARD S40 2014 (L4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1260024B11
ref: 1

LIMITER ASSY,START ID GR NO.1

€ 185.50

1260024B11
ref: 1

LIMITER ASSY,START ID GR NO.1

€ 185.50

0918110167
ref: 2

SHIM(10X18X1)

€ 3.00

1261224B03
ref: 3

GEAR,STARTER IDLE NO.2

€ 44.50

1261224B03
ref: 3

GEAR,STARTER IDLE NO.2

€ 44.50

0920210011
ref: 4

PIN(10X30)

€ 7.00

1260024831
ref: 5

CLUTCH SET,STARTER

€ 306.00

0926331009
ref: 6

BEARING(31X39X17.8)

€ 25.50

0910608190
ref: 7

BOLT(8X16)

€ 2.00

1265624B02
ref: 8

FLYWHEEL

€ 92.00

1266424B01
ref: 9

NUT,FLYWHEEL

€ 9.50

0916435002
ref: 10

WASHER

€ 5.00
